Eaton IZM6 Series Operating	 Instruction

Eaton IZM6 Series Operating Instruction

Air circuit breaker
Hide thumbs Also See for IZM6 Series:

Advertisement

Quick Links

Instruction Leafl et

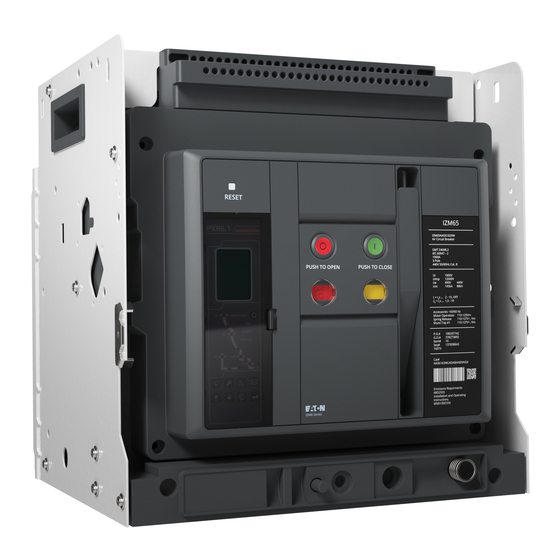

IZM6 Series Air Circuit Breaker
Operating Instruction Leafl et
Instructions apply to:
IZM65/67
(1) ONLY QUALIFIED ELECTRICAL PERSONNEL SHOULD BE PERMITTED TO WORK
ON THE EQUIPMENT.
(2) ALWAYS DE-ENERGIZE PRIMARY AND SECONDARY CIRCUITS IF A CIRCUIT
BREAKER CANNOT BE REMOVED TO A SAFE WORK LOCATION.
(3) DRAWOUT CIRCUIT BREAKERS SHOULD BE LEVERED (RACKED) OUT TO THE
DISCONNECT POSITION.
(4) ALL CIRCUIT BREAKERS SHOULD BE SWITCHED TO THE OFF POSITION AND
MECHANISM SPRINGS DISCHARGED.
FAILURE TO FOLLOW THESE STEPS FOR ALL PROCEDURES DESCRIBED IN THIS
INSTRUCTION LEAFLET COULD RESULT IN DEATH, BODILY INJURY, OR PROPERTY
DAMAGE.
THE INSTRUCTIONS CONTAINED IN THIS IL AND ON PRODUCT LABELS HAVE TO
BE FOLLOWED. OBSERVE THE FIVE SAFETY RULES:
– DISCONNECTING;
– ENSURE THAT DEVICES CANNOT BE ACCIDENTALLY RESTARTED;
– VERIFY ISOLATION FROM THE SUPPLY;
– EARTHING AND SHORT-CIRCUITING; AND
– COVERING OR PROVIDING BARRIERS TO ADJACENT LIVE PARTS.
DISCONNECT THE EQUIPMENT FROM THE SUPPLY. USE ONLY AUTHORIZED
SPARE PARTS IN THE REPAIR OF THE EQUIPMENT. THE SPECIFIED MAINTENANCE
INTERVALS AS WELL AS THE INSTRUCTIONS FOR REPAIR AND EXCHANGE MUST
BE STRICTLY ADHERED TO PREVENT INJURY TO PERSONNEL AND DAMAGE TO
THE SWITCHBOARD.
WARNING
WARNING
Effective September 2022
IZM Series
IZM69

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IZM6 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Eaton IZM6 Series

  • Page 1 Instruction Leafl et Effective September 2022 IZM Series IZM6 Series Air Circuit Breaker Operating Instruction Leafl et Instructions apply to: IZM65/67 IZM69 WARNING (1) ONLY QUALIFIED ELECTRICAL PERSONNEL SHOULD BE PERMITTED TO WORK ON THE EQUIPMENT. (2) ALWAYS DE-ENERGIZE PRIMARY AND SECONDARY CIRCUITS IF A CIRCUIT BREAKER CANNOT BE REMOVED TO A SAFE WORK LOCATION.
  • Page 2 STYLE OF PRESENTATION. THIS WILL HELP TO ENSURE THAT PERSONNEL ARE ALERT TO WARNINGS. IN ADDITION, For application information, consult Eaton or see applicable CAUTIONS, SIMILAR TO WARNINGS, ARE BOLDFACE. Product Guides, Technical Documents, and Industry Standards.
  • Page 3: Table Of Contents

    IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Description Page Contents Description Page Circuit breaker overview ..................4 Usage and scope of application .
  • Page 4: Circuit Breaker Overview

    Effective September 2022 Circuit breaker overview Usage and scope of application The IZM6 series intelligent general-purpose circuit breakers (here- after referred to as circuit breakers) are a new-generation of high- performance air circuit breakers with advanced technology and comprehensive functions, thus offering safety and reliability. The...
  • Page 5: Standards In Compliance

    IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Standards in compliance • IEC 60947-1 and GB 14048.1——Low-voltage switchgear and control equipment: General • IEC 60947-2 and GB 14048.2——Low-voltage switchgear and control equipment: Low-voltage circuit breaker •...
  • Page 6: Circuit Breaker Structure

    IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Circuit breaker structure External structure – Fixed type Secondary terminal Support Grounding bolt Intelligent controller (without disconnecting switch) Open/closed indication Released/Charged indication Nameplate Manual charging handle...
  • Page 7: Internal Structure

    IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Internal structure Internal structure: Three-dimension diagram Arc chamber Shunt coil Under voltage release Secondary terminal Delivery handle Operating mechanism Basic device Intelligent controller Reset button...
  • Page 8: Circuit Breaker Installation

    IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Circuit breaker installation Ground terminal wiring Make sure to wipe and clean the connection points with a rag Drawout circuit breaker installation prior to grounding the drawout and fixed circuit breakers. Connect 1.
  • Page 9: Power Loss

    IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Power loss Derating factors Copper bar specification Power loss (at ambient temperature of +40°C) Power loss is the total power consumption measured when the rated current of frame level (I ) passes through the circuit breaker.
  • Page 10: Circuit Breaker Accessory And Installation

    IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Circuit breaker accessory and installation Motor operator The circuit breaker offers motor charging and automatic recharging Closing coil functions (manual charging is also available for the circuit breaker).
  • Page 11 4 open and 4 closed auxil- be selected usually from 1s, 3s, 5s, to 10s by users. For special iary contacts. requirements on the delay time, please contact Eaton. Rated operating voltage U AC230...
  • Page 12 Counter cuit breaker in its depressed position. Once the lock is selected by users, Eaton shall install and configure it. The counter calculates the number of operations, which can be read on the front panel. It is compatible with manual and electrical How to use: operation functions.
  • Page 13 4. For devices requiring high voltage measurement function, please specify it upon ordering or consult Eaton. External neutral current transformer The TN-S power distribution system uses a three-pole circuit breaker, which requires an external neutral current transformer to be equipped with.
  • Page 14 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 2. The mounting direction of the external neutral current trans- 3. Insert two steel cables, one end sleeved onto the bolts of the former is subject to the wiring method of the circuit breaker:...
  • Page 15: Circuit Breaker Operation

    IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Circuit breaker operation • Manual opening When the circuit breaker is in closed state, press down the red button (O), and the circuit breaker will be opened. The "OPEN"...
  • Page 16 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Lever-in operation of drawout circuit breaker 3. Push the circuit breaker’ basic device inward until you hear two "clicks", which means that the basic device reaches the 1.
  • Page 17 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Lever-out operation of drawout circuit breaker 3. Put the crank handle back to its original place and pull out the circuit breaker’s basic device. 1. Remove the crank handle and insert the hexagonal head of the handle fully into the position switch hole of the cassette.
  • Page 18: Controller Operation And Protection Characteristics

    IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Controller operation and protection characteris- Operating power supply tics The controller is fed simultaneously by an auxiliary power supply and a power supply transformer, to ensure reliable operation even PXR4.1/PXR6.1 intelligent controller...
  • Page 19: Operation Description Of Intelligent Controller

    IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Operation description of intelligent controller PXR4.1 intelligent controller Panel introduction Controller model Rated current Fault / alarm indicator Power meter window Ammeter window Current protection...
  • Page 20 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Panel display description Indicator State Meaning Always on Displays the frequency s/cosΦ Always on Displays the time Blink Displays the power factor Always on Displays the active power...
  • Page 21 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Setting up parameters Setting up, query and test functions can be achieved through operations on the keys on the controller panel, such as “Function ” , , , “Enter...
  • Page 22 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Protection Characteristics of PXR4.1 Intelligent Controller PXR4.1A PXR4.1P Ordering code Display type LED display LED display Long delay time protection (L) Long delay time set point ) ×...
  • Page 23 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Protection characteristics Under voltage protection The intelligent controller measures the RMS value of the primary circuit voltage. When the three line voltages are all less than 1.
  • Page 24 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 PXR6.1 Intelligent Controller Panel Description Controller model Rated current LCD interface display Fault and alarm reset button Fault / alarm indicator The LED light is not lit on during normal operation;...
  • Page 25 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Default interface “Measurement” menu Displays the present phase current histogram in the absence of other functional operations. Current I Voltage U Frequency F Power P...
  • Page 26 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 “History Record and Maintenance” menu Current alarm Alarm record No. of operations Shift record Contact wear Product info Trip record Press the button to return to the default interface.
  • Page 27 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Protection characteristics of PXR6.1A / PXR6.1E / PXR6.1P intelligent controller Overload long delay time Acting current set point I Current tolerance ±10% (0.4 ~ 1.0) × I...
  • Page 28: Other Protection Characteristics Of The Intelligent Controller

    IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Other protection characteristics of the intelligent con- troller Under voltage protection The intelligent controller measures the RMS value of the primary circuit voltage. When the three line voltages are all less than 1.
  • Page 29 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Voltage Imbalance Protection Voltage imbalance protection enables protective actions based on the imbalance value between the three line voltages. The intelli- gent controller measures the voltage imbalance. When the voltage imbalance is greater than the action threshold, the protection will act;...
  • Page 30 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Phase sequence protection It is used in occasions where phase sequence is required. The phase sequence is detected from primary voltage. When it is detected different from the set direction, the protection will act with the protection action characteristics set as instantaneous.
  • Page 31 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 • At least one DO of the downstream circuit breaker is set as zone interlocking signal output. Making and breaking function (MCR): Switch off immediately due to short circuit fault during circuit breaker closing or controller ini- tialization upon powering on.
  • Page 32: Pxr4.1 Intelligent Controller Modbus-Rtu Communication Protocol

    IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Signal contact output General use Alarm Fault tripping Self-diagnosis alarm Instantaneous fault Ground / residual current fault Overload pre-alarming Overload fault Short delay time fault...
  • Page 33 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 1.3. Address field CRC value. A frame is started with an address field, which consists of 8 To generate a CRC, follow below steps: bits (taken from 1 to 255). These bits indicate the address of the (1) Preset a 16-bit register as 0FFFFH (all 1s), called CRC register;...
  • Page 34 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 2. Function descriptions of application layer This section is aimed to define a general format of specific valid commands for KT system programmers. Each data query format description is available, followed by explanations and examples of the function performed by the data query.
  • Page 35 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 2.3. Preset multiple registers (10H) Function Code 16 (by decimal) or 10H (by hexadecimal) enables users to change the contents in multiple continuous address registers.
  • Page 36 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Address Defi nition Variable type Unit Attribute Variable format Phase B current imbalance (fault) Uint Phase C current imbalance (fault) Uint Fault delay time (low word)
  • Page 37 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 4. Data type description 4.1 Fault type Bit:0 8~15 Instantaneous Ground fault Imbalance fault Undefi ned Short delay fault Long delay fault Load 1 fault Load 2 fault Undefi...
  • Page 38 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 4.6 Cure type Curve Curve1: Standard inverse time Curve 2: Fast inverse time Curve 3: Extremely fast inverse time (for power distribution use) Curve 4: Extremely fast inverse time (for motor protection use) Curve 5: HV fuse compatible Curve 6: I²T common use inverse time...
  • Page 39 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 4.8.2 Ground fixed time setting table Wind power protection OFF Setting time Wind power protection ON Setting time Setting time 10.0 11.0 12.0 13.0 ……...
  • Page 40 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 4.10 Remote operation The remote control can only be transmitted with Function 06. To ensure a response, first send out a preparatory command, and then issue the action command.
  • Page 41: Pxr6.1 Intelligent Controller Modbus-Rtu Communication Protocol

    IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 PXR6.1 intelligent controller MODBUS-RTU 1.4. Function field communication protocol The function field code tells which function is to performed by the addressed slave device. Table 1–1 lists all function codes, their meanings and initial functions.
  • Page 42 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 1.7. Error detection 2.3. Link dead operation The cyclic redundancy check (CRC) field occupies two bytes and Link dead execution mode can be set to alarm or ignore; link contains a 16-bit binary value.
  • Page 43 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 3. Function descriptions of application layer This section is aimed to define a general format of specific valid commands for KT system programmers. Each data query format description is available, followed by explanations and examples of the function performed by the data query.
  • Page 44 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 3.3. Preset single register (06H) Function Code 06 enables users to change the content in a single register. Any writable single register inside the controller can use this function code to change its value.
  • Page 45 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Upstream message (from slave to host): Sub-function Sub-function Device Function code code Diagnostic data Diagnostic data Check code Check code address code High byte Low byte...
  • Page 46 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 4.1. Measurement information (continued) Address Defi nition Variance type Unit Attribute Variant format Phase C power factor ×0.01 System power factor ×0.01 System frequency Uint ×0.01...
  • Page 47 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 4.3. Event record Address Defi nition Variance type Unit Attribute Variant format 768(300) 51C H: Fault record clock (year) Uint L: Fault record clock (month)
  • Page 48 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 4.4. System maintenance parameters Address Defi nition Variance type Unit Attribute Variant format 1024 (400) 540 Remote command (only support Function Code Uint See 5.8...
  • Page 49 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 4.5. Protection setting Address Defi nition Variance type Unit Attribute Variant format Note 1 1280 (500) 586 Overload action value Uint ×1 or ×2 0; lower limit: 0.2, 0.3 or 0.4 times;...
  • Page 50 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 4.5. Protection setting (continued) Address Defi nition Variance type Unit Attribute Variant format 1307 Phase B max. demand start time Uint 15~1500, Step is 1...
  • Page 51 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 5. Date type description 5.3 Present alarm 5.1 Phase sequence measurement values Range Value Meaning 0 = No Load monitoring 1 alarm Range Value Meaning...
  • Page 52 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 5.4 Fault type and phase Range Value Meaning 0=Phase A Fault phase 1=Phase B 2= Phase C 3=N-phase 4= N/A When fault type =18: 0=DI1...
  • Page 53 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 5.5 Fault data Event type Meaning Unit Variant format Note 1 Overload fault, instantaneous fault, short circuit interlocking, Fault current ×1 or ×2 ground interlocking, short circuit fi xed/inverse time protection, Residual current: ×0.01...
  • Page 54 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 5.6 Fault status symbol Range Value Meaning 0 = Unreadable The host computer specifi es whether the record to be read is 1 = Readable...
  • Page 55 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 5.10 DO and DI operating mode 5.12 Communication setting, lock Range Value Meaning Range Value Meaning 0 = Alarm DI1 function setting 0~255 Communication address...
  • Page 56 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 5.14 N-phase protection setting Range Value Meaning 0~15 0 = 50% N-phase protection setting 1 = 100% 2 = 160% 3 = 200% 4 = OFF 5.15 Ground/ residual current protection...
  • Page 57 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 5.17 Protection operating mode 1 6. Error response The controller responds to possible communication situations and Range Value Meaning is used as an auxiliary function for communication link error diag-...
  • Page 58: Outline And Mounting Dimension Diagrams

    IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Outline and mounting dimension diagrams Drawout type (IZM65 400-2500A) Front view 57.5 203.5 Horizontal wiring Disconnected position Outside of the door 3× 13 Standard type...
  • Page 59 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Fixed type (IZM65 400-2500A) Front view Horizontal wiring Distance when removing the CB Outside of the door 3× 13 Standard type The shaded part is the lap surface of the busbar...
  • Page 60 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Drawout type (IZM67 2000-3200A) Front view 57.5 203.5 Vertical wiring 4× 13 4×(13×23) Disconnected position Outside of the door 3× 13 (Connecting area) 12.5 Standard type 87.5...
  • Page 61 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Drawout type (IZM67 2000-3200A) Horizontal wiring Disconnected position Outside of the door 3× 13 Standard type The shaded part is the lap 87.5 surface of the busbar Door escutcheon cutout 327.2...
  • Page 62 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Drawout type (IZM67 4000A) Front view 57.5 203.5 Vertical wiring Disconnected position Outside of the door 87.5 The shaded part is the lap surface of the busbar...
  • Page 63 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Drawout type (IZM67 4000A) Horizontal wiring 137.5 137.5 Disconnected position Outside of the door 87.5 The shaded part is the lap surface of the busbar Door escutcheon cutout 327.2...
  • Page 64 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Fixed type (IZM67 2000-3200A) Front view Vertical wiring Distance when removing the CB Outside of the door 3× 13 12.5 Standard type 297.5 The shaded part is the lap surface of the busbar EATON www.eaton.com...
  • Page 65 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Fixed type (IZM67 2000-3200A) Horizontal wiring Distance when removing the CB Outside of the door 3× 13 Standard type The shaded part is the lap...
  • Page 66 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Fixed type (IZM67 4000A) Front view Vertical wiring Distance when removing the CB Outside of the door 4× 13 78 (Connecting area) 297.5 The shaded part is the lap surface of the busbar...
  • Page 67 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Fixed type (IZM67 4000A) Horizontal wiring Distance when removing the CB Outside of the door 4× 13 297.5 Door escutcheon cutout 327.2 327.2 57.5 CB bottom...
  • Page 68 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Drawout type (IZM69 4000-5000A) Front view Horizontal wiring Door escutcheon cutout 327.2 CB bottom CB center Door cut out 11× 5 185.2 185.2 Disconnected position 8 x Ø13...
  • Page 69 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Drawout type (IZM69 6300A) Front view Horizontal wiring Door escutcheon cutout 327.2 CB bottom CB center Door cut out 11× 5 185.2 185.2 Disconnected position Outside of the door 8 x Ø13...
  • Page 70 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Fixed type (IZM69 4000-5000A) Front view 35.9 Horizontal wiring Door escutcheon cutout 246.5 246.5 327.2 CB bottom CB center 8× 5 Door cut out 185.2 185.2...
  • Page 71 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Fixed type (IZM69 6300A) Front view 35.9 Horizontal wiring Door escutcheon cutout 246.5 246.5 327.2 CB bottom CB center 8× 5 Door cut out 185.2 185.2...
  • Page 72: Electrical Wiring Diagrams

    IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Electrical wiring diagrams Terminal numbers are described as follows: Phase A wiring terminal (input voltage  230V) (added function) 1# 2# 24VDC working power supply input Phase B wiring terminal (input voltage ...
  • Page 73: Izm65 And Izm67 Electrical Wiring Diagram (With Communication Function)

    IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Terminal numbers are described as follows: Phase A wiring terminal (input voltage  230V) (added function) 1# 2# 24VDC working power supply input Phase B wiring terminal (input voltage  230V) (added function)
  • Page 74: Mounting, Operation And Maintenance Notice

    IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 Mounting, operation and maintenance notice Maintenance • Lubricant oil should be regularly injected into each rotating part Installation and Operation Warnings during operation. To ensure the safety of your personal and electrical equipment, •...
  • Page 75 IZM6 Series Air Circuit Breaker Instruction Leafl et Operating Instruction Leafl et Effective September 2022 The following table allows you to determine the cause of the fault and how to trouble shoot. If the fault still exists no matter what you do, please contact us and we will provide you with suggestions or troubleshoot for you.
  • Page 76 The best practice is to use metal conduits to run network cables between equipment cabinets. In no event will Eaton be responsible to the purchaser or user in • The following physical access ports are supported by the contract, in tort (including negligence), strict liability, or otherwise...
