Loose Parts
Use the chart below to verify that all parts have been shipped. Part numbers not shown are available on the dealer
extranet.
Dealer Pack
Part #
103-2106
1-603511
95-3270
Literature Pack
Part #
Checking Tire Pressure
1. Check the tire pressure in the drive and caster tires.
Proper inflation for drive tires is 13 psi (90 kPa).
Proper inflation for the caster tires is:
• smooth tread–13 psi (90 kPa)
• sawtooth tread–20 psi (138 kPa)
2. Adjust if necessary.
Fastening the Seat
1. Remove the nut and bolt from the loose end of the
lanyard.
2. Tilt seat downward and align lanyard to the hole in
the side of the seat (see Figure 1).
3. Install bolt and nut. Tighten bolt and then loosen
nut 1/4-1/2 turn so that lanyard end rotates freely.
Verify that lanyard is free to rotate on both ends so
that it pulls straight while supporting the seat.
© 2010—Exmark Mfg. Co., Inc.
P.O. Box 808
Beatrice, NE 68310
Description
Key, Exmark Logo
Key, Standard
Hose, Connector
Description
Manual, Operator's
Manual, Engine Operator's
DVD, Quest Safety
Qty.
Fill out the online warranty registration
1
form and place the keys into literature
1
pack.
1
Qty.
1
Read before operating the machine.
1
1
View before operating the machine.

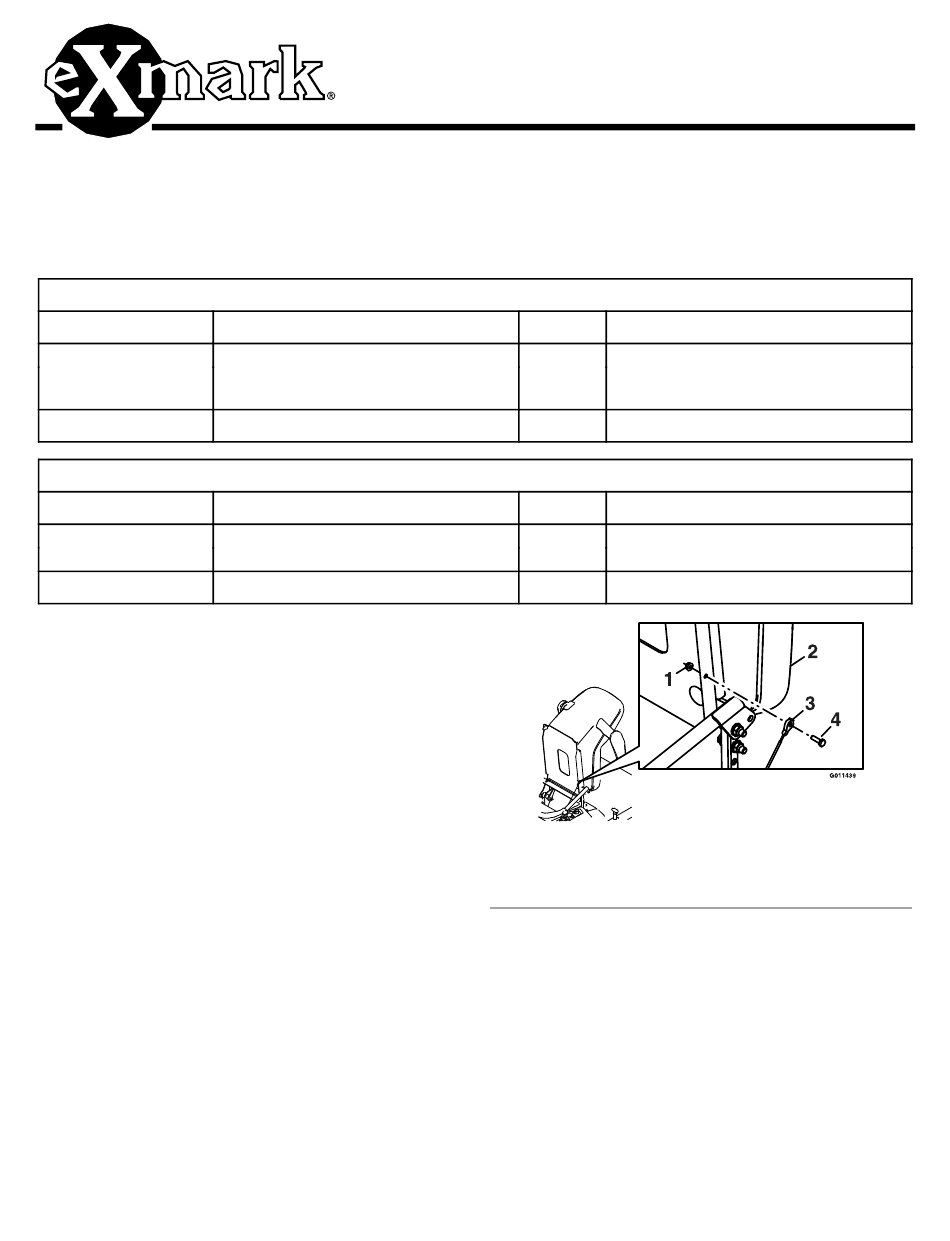

Figure 1
1. Nut
2. Seat
QUEST
Setup Instructions
For Serial Nos. 850,000 & Higher
Use
Use
3. Lanyard
4. Bolt
Part No. 4500-525 Rev. B
Printed in the USA
All Rights Reserved
®
