- Page 1 Instruction Manual Single/Double Pedestal/Table Top Electric Fryer NPSPF6/9, NPDPF6/9, NPSF3/6/9, NPDF3/6/9...
-
Page 3: Table Of Contents
Parts List, Head Assembly NPSF6/9, NPDF6/9, NPSPF6/9, NPDPF6/9 ........... 23 Warranty Information ........................ 24 Disposal & Recycling ......................... 25 Parry Catering Equipment (Midlands) Ltd, Town End Road, Draycott, Derby, DE72 3PT. Sales Tel: 01332 875544 Parry-British Built for Purpose IN244-3... -
Page 4: Product Overview

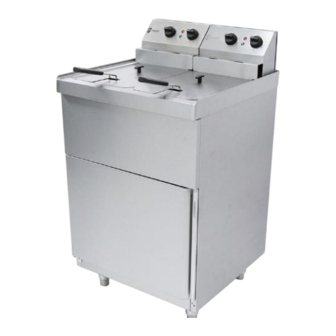

Product Overview NPSPF6, NPSPF9 Single Pedestal Electric Fryer Powerful, durable and simple to operate, the Parry NPSPF6/9 single pedestal electric fryer is designed for the rigours of constant commercial use. With its easy-to-use controls and a sturdy basket, the freestanding fryer is perfect for cooking chicken, chips and fish. - Page 5 Plug Hard Hard Hard Hard Hard wired wired wired wired wired Power rating 2 x 3kW 2 x 6kW 2 x 9kW Warranty 2 years 2 years 2 years 2 years 2 years 2 years Parry-British Built for Purpose IN244-3...
-
Page 6: Safety Instructions
EEC Directive “Low voltage” 73/23; EEC Directive 93/68. This product is suitable for contact with foodstuffs and complies with EEC Directive 89/109. The product(s) stated above are designed and built to comply with the following standards: BS EN 60335 Parry-British Built for Purpose IN244-3... -
Page 7: Technical Data
240v 50Hz ~ AC 240v 50Hz ~ AC 415v 50Hz ~ 3 Ph+N Nominal Current (Amps) 37.5a 12.5a (8.33a per Ph) (12.5a per Ph) Nominal Wattage (Watts) 3000w 6000w 9000w Oil Capacity 9 litres (Per tank) Parry-British Built for Purpose IN244-3... - Page 8 240v 50Hz ~ AC 240v 50Hz ~ AC 415v 50Hz ~ 3 Ph+N Nominal Current (Amps) 37.5a 12.5a (8.33a per Ph) (12.5a per Ph) Nominal Wattage (Watts) 3000w 6000w 9000w Oil Capacity 9 Litres (Per tank) Parry-British Built for Purpose IN244-3...
-
Page 9: Installation Instructions
It is installed in accordance with Health and Safety at Work Act, BS Codes of Practice, IEE Wiring Regulations and Building and Local Authority Standards. Single Phase and 3 Phase + Neutral (6Kw & 9Kw Fryers Heads Only) Parry-British Built for Purpose IN244-3... -
Page 10: Operating Instructions
This procedure will be repeated automatically as the thermostat maintains a constant temperature. See page 9 for cooled solidified fat operating instructions Parry-British Built for Purpose IN244-3... - Page 11 Never use the lid while the fryer is switched on or is cooling off. It is only a dust cover for when the fryer is not in use. N.B. Incorrect oil level, old oil or allowing the machine to be switched on without any oil, will cause the override switch to trip. Parry-British Built for Purpose IN244-3...
- Page 12 The life expectancy of the oil or fat will be lengthened if they are passed through a filter on a regular basis, and the fryer is turned down or off during periods when it is not in use. NPSPF6, NPSPF9, NPDPF6 & NPDPF9 To drain the oil in the above models...
-
Page 13: Cleaning Instructions
Periodically you will need to replace the cooking medium, do this when discolouration, odour, or surging indicate this; again, experience is your best guide, but remember that more frequent changes will be required when different foods are cooked in the same medium. Parry-British Built for Purpose IN244-3... -
Page 14: Maintenance Instructions
Should the power cord become damaged, it must be replaced by the manufacturer, the service agents or similarly qualified persons in order to avoid a hazard. Parry Catering provides a complete after-sales service by offering the sales of spare parts directly to customers. Buying spares straight from the manufacturer allows customer to experience exceptional value and speedy delivery on all spare parts. -
Page 15: Fault Finding
(B) press with force and you will hear/feel the thermostat click and reset. Please Note: The oil must be cool before the safety thermostat can be reset. If this does not solve the problem, please contact your distributor. Parry-British Built for Purpose IN244-3... -
Page 16: Service Information
This appliance should be routinely serviced to prolong its lifetime. Parry recommends that the appliance is serviced every 12 months by a Parry authorised engineer. Failure to service your product within the initial 12 month warranty period will cause the 24 month warranty to become void. -
Page 17: Wiring Diagram
Wiring Diagram NPSF3/NPDF3 NPSF6/9, NPSPF6/9, NPDF6/9, NPDPF6/9. 3 Phase + Neutral wiring shown above Changing from Single Phase to 3 Phase + Neutral Please see page 7 of the instruction manual Parry-British Built for Purpose IN244-3... -
Page 18: Exploded View Npsf6/9, Npdf6/9
Exploded View NPSF6/9, NPDF6/9 Parry-British Built for Purpose IN244-3... -
Page 19: Parts List Npsf6/9, Npdf6/9
MLEAD25 *Back Hook NPSFBACKHOOK NPDFBACKHOOK *Back Panel NPSF3BACK NPDF3BACK *RH Side Panel NPSF3RHSIDEPANEL *Front Support NPSF3FRONTBRACE NPDF3FRONTBRACE *Base NPSF3BASE NPDF3BASE *Drain Tube Guide NPSF3DRAINTUBESUPPORT NPDF3DRAINTUBESUPPORT *Tap Bracket TAPBRACKET Rubber Stick on Foot RUBBRFOOT *Metalwork Components Parry-British Built for Purpose IN244-3... -
Page 20: Exploded View Npspf6/9, Npsdf6/9
Exploded View NPSPF6/9, NPDPF6/9 Parry-British Built for Purpose IN244-3... -
Page 21: Parts List Npspf6/9, Npsdf6/9
Bowl Insert Washer WAS14022 17b Bowl Insert Nut NUT4BOWLSSS Back Panel *NPSPFBAK *NPDPFBAK *RH Side Panel *NPSPFRHSIDP Drain Tube TUBETRAN4 Strainer BKST14916 (Optional Extra) Aluminium Bucket BKAL0001 (Optional Extra) *Base *NPSPFBASE *NPDPFBASE LEG50-100PLT LEG50-100HEX *Metalwork Components Parry-British Built for Purpose IN244-3... -
Page 22: Exploded View, Head Assembly Npsf3, Npdf3
Exploded View Head Assembly: NPSF3, NPDF3 Parry-British Built for Purpose IN244-3... -
Page 23: Parts List, Head Assembly Npsf3, Npdf3
NPSFSAFCUTTHBKT 20 Minute Timer TMRMECH20 *Reset Cover NPSFOTRC Reset Cover Gasket GASKCOVER *Head Back NPSF3FRYHBAK Fryer Head Gasket GASKPR69F Thermostat TMST13032 Terminal Block TB3POLETB Element Gasket AS3510PLT Thermostat Knob KNOBPHEN Element Clip CLIP15960 *Metalwork Components Parry-British Built for Purpose IN244-3... -
Page 24: Exploded View, Head Assembly Npsf6/9, Npdf6/9, Npspf6/9, Npdpf6/9
Exploded View Head Assembly: NPSF6/9, NPDF6/9, NPSPF6/9, NPSDF6/9 Parry-British Built for Purpose IN244-3... -
Page 25: Parts List, Head Assembly Npsf6/9, Npdf6/9, Npspf6/9, Npdpf6/9
Parts List Head Assembly: NPSF6/9, NPDF6/9, NPSPF6/9, NPSDF6/9 Part Code Description NPSF6/NPSF9/NPDF6/NPDF9/NPSPF6/ NPSPF9/NPDPF6/NPDPF9 Element ELFF03000 *Element Shroud *PARAGON3KWFRYERHEADE Green Neon LNGN2211P Timer Knob TIMERKNOB *Head Body c/w End Caps NPSF3HEADWRAP Red Neon LNRE2211P Safety Cut Out Thermostat TMST10549 *Safety Cut Out Thermostat... -
Page 26: Warranty Information
Parry and not the sale or installation date of the equipment. Please ensure you have referred to the manufacturer’s instruction before placing a warranty... -
Page 27: Disposal & Recycling
Parry Catering recognises our obligations to the EU DIRECTIVE covering the waste disposal of electrical and electronic equipment (WEEE). Parry Catering are committed to this policy in order to help conserve the environment.
