Power Supply Dc Connector Pin Assignments - Dell XPS 410 Service Manual

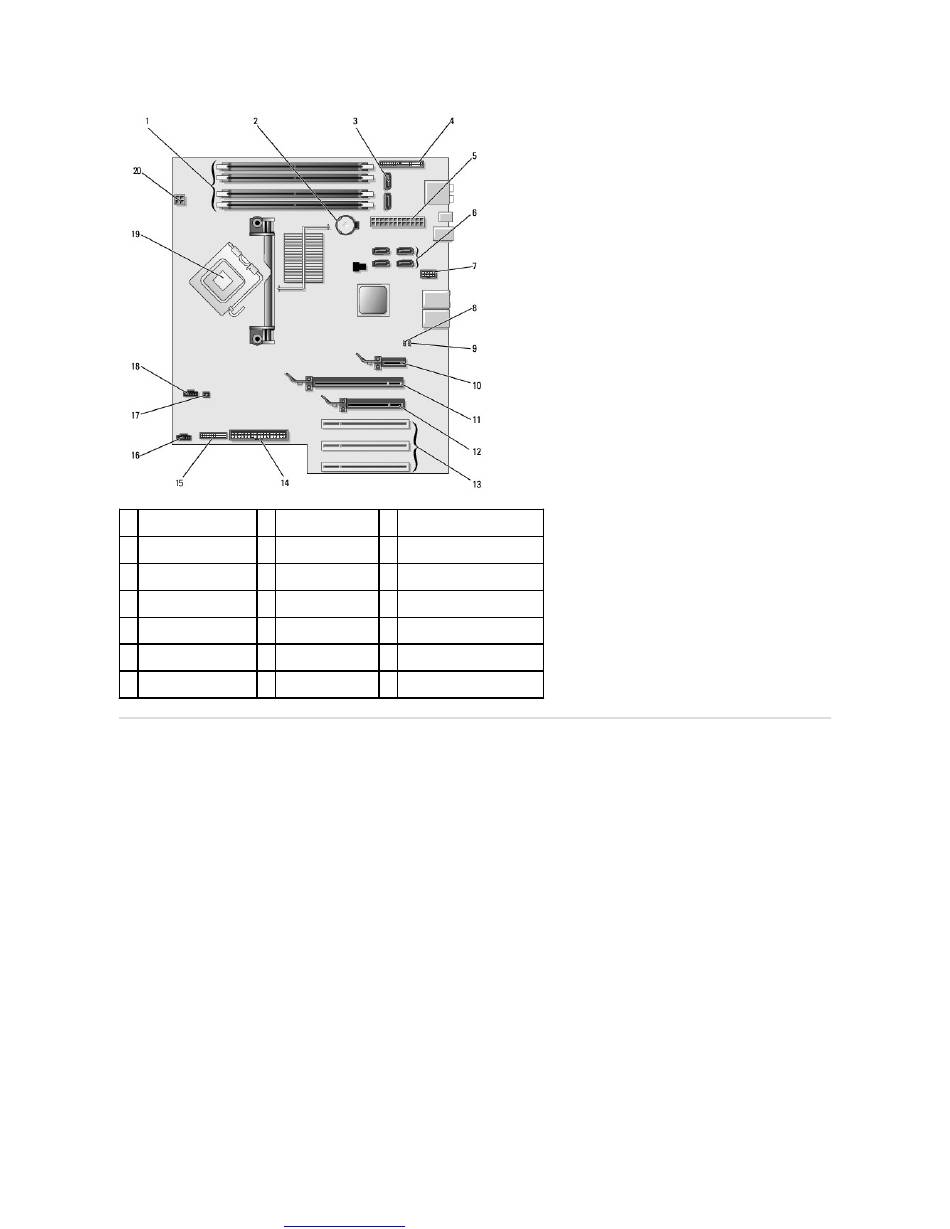

1 memory module
connectors (1, 2, 3, 4)
4 front panel I/O
connector
7 FlexBay USB connector
10 PCI Express x1 card
connector
13 PCI card connectors
16 rear fan connector
19 processor and heat sink
connector
Power Supply DC Connector Pin Assignments
Great user manuals database on
2 battery socket 3 SATA Connectors SATA0,
(BATTERY) SATA1
5 main power 6 SATA connectors (4) (SATA2,
connector SATA3, SATA4, SATA5
8 clear CMOS jumper 9 password jumper (CLRPSWD)
(CLRCMOS)
11 PCI Express x16 card 12 PCI Express x4 card connector
connector
14 floppy drive 15 PS/2 and Serial connector
connector (FLOPPY)
17 thermal sensor 18 CPU fan connector
connector
20 processor power
connector
