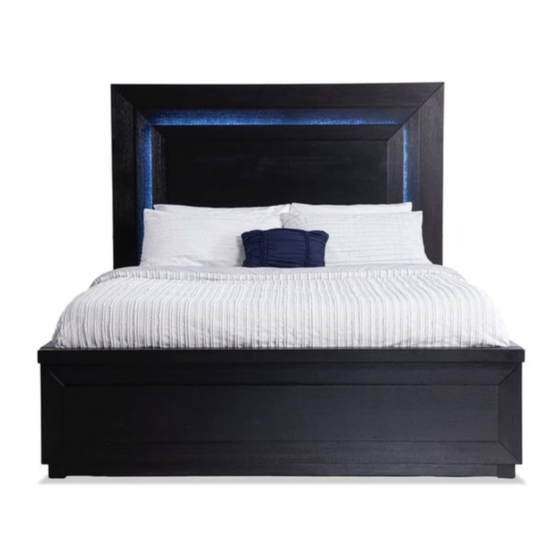

Bob's Discount Furniture KING HEADBOARD W/LED STRIP Assembly Instructions

Cautions: Please read instructions thoroughly before unpacking assembly parts. Sharp, exposed staple tips can cause injury,
therefore, for your protection, please remove any exposed staples used in parking.
1. We recommend that you should assemble this product with the assistance of another person; this will make assembly easier,
and will help to eliminate damage to the product or injury to persons during assembly.
2. Be sure to check all packing materials carefully for small parts that may have come loose inside the carton druring shipment.
3. Please do not over tighten screws or bolts.
4. Please put all parts on a non-abrasive floor before assembly, and follow the assembly steps to assemble your newly
purchased product correctly and efficiently.
Part List
Part Description
No.
Headboard Leg (1R & 1L)
A
Cal.King/ King Bed - Headboard Bottom Stretcher
B
1
4 3 2

Step 1

HEADBOARD IN COMPLETE
ASSEMBLY INSTRUCTIONS FOR
KING HEADBOARD W/LED STRIP
Code.
Q'ty
PCP850HBLEG
2
1
PCP850KHSTR
A
MADE IN VIETNAM
Hardware List
No Hardware Description
Flat washer ( Ø 1/4" x 1/2")
1
Lock washer ( Ø 1/4" x 3/8")
2
Bolt (Ø1/4" x 1 3/4")
3
Allen key (4 x 59mm)
4
B
1 2 3

Step 2

Code. Q'ty
16
16
PCP850KBHW
16
1
HeadBoard
A
4
1/3
