Summary of Contents for Bob's Discount Furniture PowerBob Elite

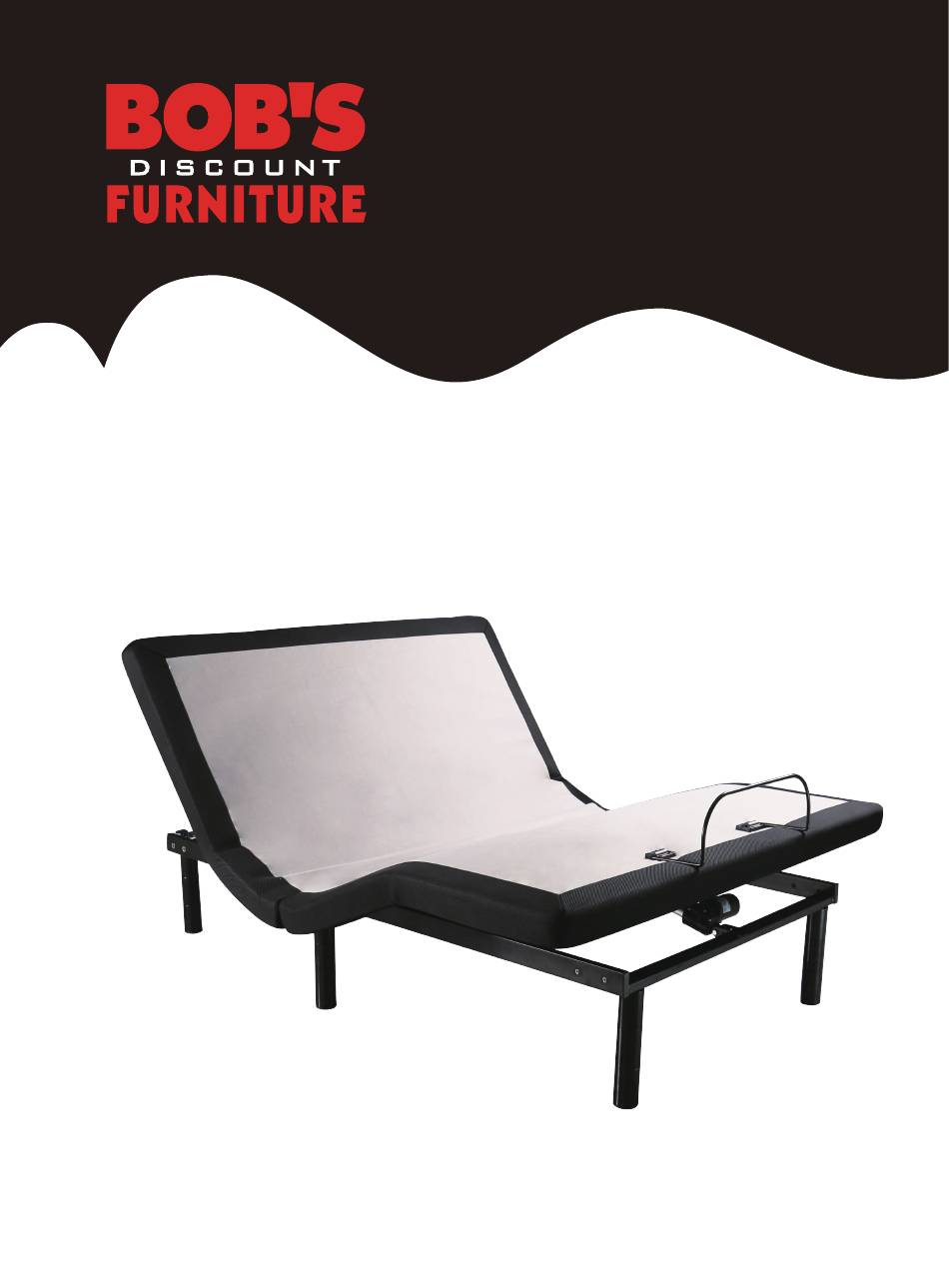

- Page 1 OWNER’S MANUAL Installation & Operation Power Bob Elite Serial No. Rev1 05/2019...
-
Page 2: Table Of Contents
Table Of Contents Safety & Warranty Warnings ……………………………………………… 01 Parts List……………………………………………………………………………… 02 Preparatory Work ……………………………………………………………… 03 Standard Power Founda�on Setup …………………………………… 04 Power Founda�on Set Up For Use On Pla�orm Or Storage Bed …………………………………………………………………………………………… 06 Electronics Quick Reference Guide & Synchronizing Two Founda�ons…………………………………………………………………………... -
Page 3: Safety & Warranty Warnings
Safety & Warranty Warnings Customer Service Toll Free: 1-844-696-6886 —01—... -
Page 4: Parts List
Parts List All electronics and components that need to be installed are located in boxes under the foundation or attached to the frame. Before discarding the packing materials, ensure that all the parts are accounted for. PARTS LIST (1) Power Supply with Sync Cord (1)Remote Control (1)AC Power Cord... -
Page 5: Preparatory Work
Preparatory Work Open the box lid, move away the outer packing box. ACCESSORIES BOX: Take out all the accessories Adjustable Remote Sync Cord AC Power Cord Headboard Bolts Washers Legs Control Brackets M8*16 （TXL/SCK Only） from the packaging and put them aside. -
Page 6: Standard Power Founda�On Setup
Standard Power Foundat ion Setup Two people are required to setup the foundation. Install 4 legs, make sure the Remove the bed from the box with a flipping motion, legs are tight. let the bed stand on the 4 legs. O A R O A R H E A... - Page 7 Standard Power Foundat ion Setup Make the bed completely flat. Install the mattress retainer bar one side after another. O A R H E A Uncoil the AC power cord, connect the DC power cord to the power supply and then connect the power supply to the AC power source.
- Page 8 Power Foundat ion Set Up For Use On Pla�orm Or Storage Bed Two people are required to setup the foundation. Take the bed out of the box, put it on the slat base, do not install any legs. Uncoil the DC power cord (connected to the control box)，pull the DC power cord towards the direction of the AC power source through either the bottom or the side of the bed frame.
- Page 9 Power Foundat ion Set Up For Use On Pla�orm Or Storage Bed Uncoil the AC power cord, connect the DC power cord to the power supply and then connect the power supply to the AC power source. Insert the batteries into the remote control.
-
Page 10: Electronics Quick Reference Guide & Synchronizing Two Founda�Ons
Electronics Quick Reference Guide Synchronizing Two Foundat ions OVERVIEW Remote Control Sync Cord WIRELESS RECEIVER HEAD FOOT SNORE CB11B Control Box HD Motor FT Motor Power Power Supply Power Cord Power Cord Charger Head Motor Foot Motor Synchronizing Two Foundations If simultaneous operation of two foundations is desired, use the sync cord to connect the electronics of both foundations together. -
Page 11: Remote Control Instruc�Ons
Remote Control Instruct ions REMOTE Home Position Lifts and Lifts and HEAD FOOT Lowers Foot Lowers Head TV Position Zero G Preset Anti-Snore SNORE Position Preset Position Under Bed Programmable LED on/off Positions ADJUST ONE TOUCH BUTTON This button lifts the head/foot section of the One touch flat position. -
Page 12: Pairing Remote
Pairing Remote The original remote that comes in the box is already paired to the foundation. No further action is required. In the event when the remote is not paired with the foundation, follow the following to pairing instructions. PAIRING REMOTE STEP 1：... -
Page 13: Headboard Bracket Installa�On Guide (Op�Onal)
Headboard Bracket Installat Guide (Opt ional) A 1/2'' (13 mm) socket and 1/2'' (13 mm) wrench are necessary to complete installation. HEADBOARD BRACKET COMPONENTS (2) T-Brackets (8) Bolts M8*16 (4) Nuts (4) Washers (2) Headboard Brackets a)Align the slot hole of the headboard bracket to the sleeve into a)To put the T-Bracket and Headboard Bracket together, you will which the leg threads. -
Page 14: Mobile App (Op�Onal)
Mobile APP (Opt ional) General Information Mobile APP is a mobile application to control the Power Foundation with mobile devices. The application is available for both iOS and Android based smart devices. The Mobile APP uses the latest technology to communicate with your Power Foundation. Make sure your mobile devices has the pairing function for the APP to work correctly. -
Page 15: Troubleshoo�Ng
Troubleshoot ing In the event that the power foundation fails to operate, assess the symptoms and possible solutions provided in the chart below. SYMPTOMS SOLUTIONS Verify that the power cord is plugged into a working, grounded Remote control illuminates and appears to be operable, but will not electrical outlet.
Need help?
Do you have a question about the PowerBob Elite and is the answer not in the manual?
Questions and answers
My base won't stop vibrating
The Bob's Discount Furniture Elite base may be vibrating because it includes massage features as part of its adjustable base options.
This answer is automatically generated
My remote does not control my bed
The remote may not be controlling the PowerBob Elite bed for several reasons:
1. Dead Batteries – Replace the remote’s three AAA batteries with new ones.
2. Not Paired – If the remote is not paired with the foundation, follow the pairing instructions.
3. Radio Frequency Interference – Other radio-transmitting devices may be causing interference. Wait a few seconds and try again.
4. Obstruction – The bed mechanism may be obstructed. Elevate the bed and remove any obstructions.
5. Defective Electrical Outlet – Test the outlet by plugging in another working appliance.
6. Motor Duty Cycle Limit – Ensure the motors are not operated for more than 2 minutes within an 18-minute period.
Checking and addressing these issues should restore remote functionality.
