Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all
components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult assembly is
required. The product of Bob's Discount Furniture is designed for residential use only.
HARDWARE LIST
A (8) Long Bolts
B (4) Medium Bolts
C (12) Short Bolts
D (12) Moon Nuts
E (1) Allen Wrench
F (52) Long Wood Screws
G (24) Medium Wood Screws
H (9) Short Wood Screws
I
(4) Wood Dowels
PARTS LIST
J (3) Drawer Faces
K (3) Drawer Box Back Panels
L (6) Drawer Box Side Panels
M (3) Drawer Box Bottom Panels
N (3) Drawer Metal Sliders (Top)
O (3) Drawer Metal Sliders (Bottom)
P (1) Lower Front Frame
Q (1) Lower Bed Rail (Back)
R (1) Lower Center Rail
S (1) Lower Bed Rail (Left)
T (1) Lower Bed Rail (Right)
U (26) Bed Slats
V (1) Front Bed Rail
W (1) Back Bed Rail
X (2) Side Walls
X
A A
A A
CARE & MAINTENANCE: The touch of a soft cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for polishing,
as they may cause damage to the finish. Periodic checks are recommended to make sure that all hardware is securely tightened.
CHADWICK II CAPTAIN'S BED
PART
A
C
E
G
I
X
I I
W
D D
D D
W
A A
A A
QTY
HARDWARE
8
12
1
24
4
X
FIGURE 1
V
X
I I
PART
QTY
B
4
D
12
F
52
H
9
A A
A A

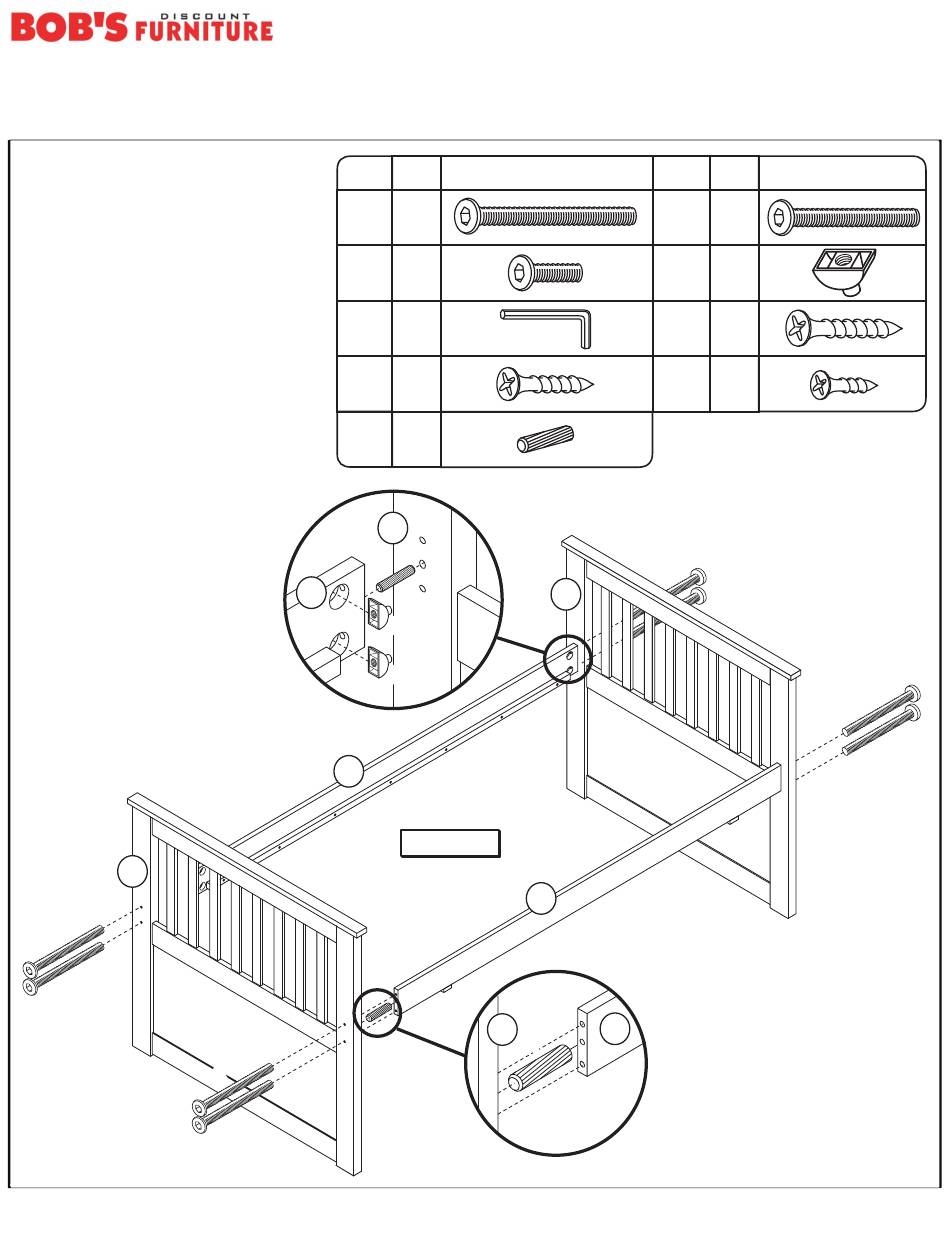

STEP 1 - Figure 1
Connect Front Bed Rail (V)
and Back Bed Rail (W) to
the Side Walls (X) using 2
V
Allen Bolts (A) from the
outside of each corner and 2
Moon Nuts (D) and 1 Wood
Dowel (I) from each corner
on the inside.
Date: 10-27-2014
Page 1 of 5
HARDWARE
A A
A A

Advertisement

loading
Need help?

Need help?

Do you have a question about the CHADWICK II CAPTAIN'S BED 20040384 and is the answer not in the manual?

Questions and answers

Denise Endo
March 6, 2025

My drawers won't slide in

1 comments:
Mr. Anderson
March 6, 2025

The drawers of the Bob's Discount Furniture Chadwick II Captain's Bed (part number 20040384) may not slide in due to several possible reasons:

1. Misalignment of Metal Sliders – Ensure that the metal sliders (Parts N and O) are properly installed and aligned. If they are not correctly positioned, the drawers will not slide smoothly.

2. Obstruction or Debris – Check for any obstructions or debris in the drawer tracks that might be preventing movement.

3. Loose or Improperly Tightened Hardware – Periodic checks are recommended to make sure all hardware is securely tightened. Loose screws or misaligned components could cause difficulty in sliding.

4. Incorrect Assembly – Verify that the drawer assembly has been completed correctly and that all panels are in the right position.

5. Warped or Damaged Parts – Inspect the drawer components for any signs of warping or damage that might prevent proper movement.

Ensuring proper alignment, secure installation, and checking for obstructions should resolve the issue.

This answer is automatically generated

Summary of Contents for Bob's Discount Furniture CHADWICK II CAPTAIN'S BED 20040384

  • Page 1 Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult assembly is required. The product of Bob's Discount Furniture is designed for residential use only. HARDWARE LIST...
  • Page 2 CHADWICK II CAPTAIN’S BED Date: 10-27-2014 Page 2 of 5 STEP 2 - Figure 2 FIGURE 2 Attach the Bed Slats (U) on to the Front and Back Bed Rails (V and W) using 2 Screws (F) per slat. STEP 3 - Figure 3 Attach each Drawer Box Back Panel (K) to 2 Drawer Box Side Panels (L) using 4 Wood...
  • Page 3 CHADWICK II CAPTAIN’S BED Date: 10-27-2014 Page 3 of 5 STEP 6 - Figure 6 Attach the Drawer Metal Sliders (N) to the FIGURE 6 bottom of the Drawer Box Bottom Panels (M) with 3 Wood Screws (H) per slider. FIGURE 8 FIGURE 7 STEP 7 - Figure 7...
  • Page 4 CHADWICK II CAPTAIN’S BED Date: 10-27-2014 Page 4 of 5 STEP 9 - Figure 9 Attach the Bottom Drawer Metal Sliders (O) to the bottom of FIGURE 9 the Lower Front Frame (P) with one Short Bolt (D) each. STEP 10 - Figure 10 Secure the Bottom Drawer Metal Sliders (O) to the Lower Center Rail (R) with one Short Bolt (C) each.
  • Page 5 CHADWICK II CAPTAIN’S BED Date: 10-27-2014 Page 5 of 5 F F F F F F F F F F F F STEP 12 - Figure 12 F F F F F F F F Lay down the Bed Slats (U) in between the Back Lower Bed Rail (Q) F F F F F F F F...
  • Page 6: Liste Du Matériel

    Gardez ces instructions de montage pour référence future. Assemblage par un adulte est requise. Le produit de Bob's Discount Furniture est conçu pour un usage résidentiel seulement.
  • Page 7 LIT CHADWICK II CAPITAINE Date: 10-27-2014 Page 2 of 5 ÉTAPE 2 - Figure 2 FIGURE 2 Fixez les lattes de sommier (U) sur les rails de lit avant et arrière (V et W) à l'aide de 2 vis (F) par latte. ÉTAPE 3 - Figure 3 Attach each Drawer Box Back Panel (K) to 2 Drawer Box...
  • Page 8 LIT CHADWICK II CAPITAINE Date: 10-27-2014 Page 3 of 5 ÉTAPE 6 - Figure 6 Fixez le tiroir en métal Sliders (N) au bas des FIGURE 6 panneaux de fond de tiroir caisse (m) avec 3 vis à bois (H) par curseur. FIGURE 8 FIGURE 7 ÉTAPE 7 - Figure 7...
  • Page 9 LIT CHADWICK II CAPITAINE Date: 10-27-2014 Page 4 of 5 ÉTAPE 9 - Figure 9 Fixez le bas du tiroir en métal Sliders (O) au fond du cadre FIGURE 9 inférieur avant (P) avec un boulon court (D) chacun. ÉTAPE 10 - Figure 10 Fixer le fond de tiroir en métal Sliders (O) au Centre rail inférieur (R) avec un boulon court (C) chaque.
  • Page 10 LIT CHADWICK II CAPITAINE Date: 10-27-2014 Page 5 of 5 F F F F F F F F F F F F ÉTAPE 12 - Figure 12 F F F F F F F F Fixer les lattes de sommier (U) entre le bas du dos Barrière de lit (Q) et le F F F F F F F F...
