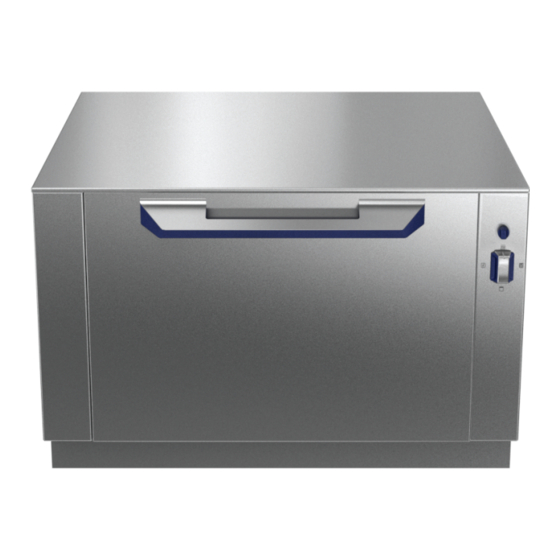

Electrolux Professional thermaline MBVG CPO Series Installation And Operating Manual

Electrolux Professional thermaline MBVG CPO Series Installation And Operating Manual

Static gas oven
Table of Contents

Advertisement

Quick Links

Static Gas Oven
EN-US
Installation and Operating manual
599A18800 - 82.8131.11- 2020.12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the thermaline MBVG CPO Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Electrolux Professional thermaline MBVG CPO Series

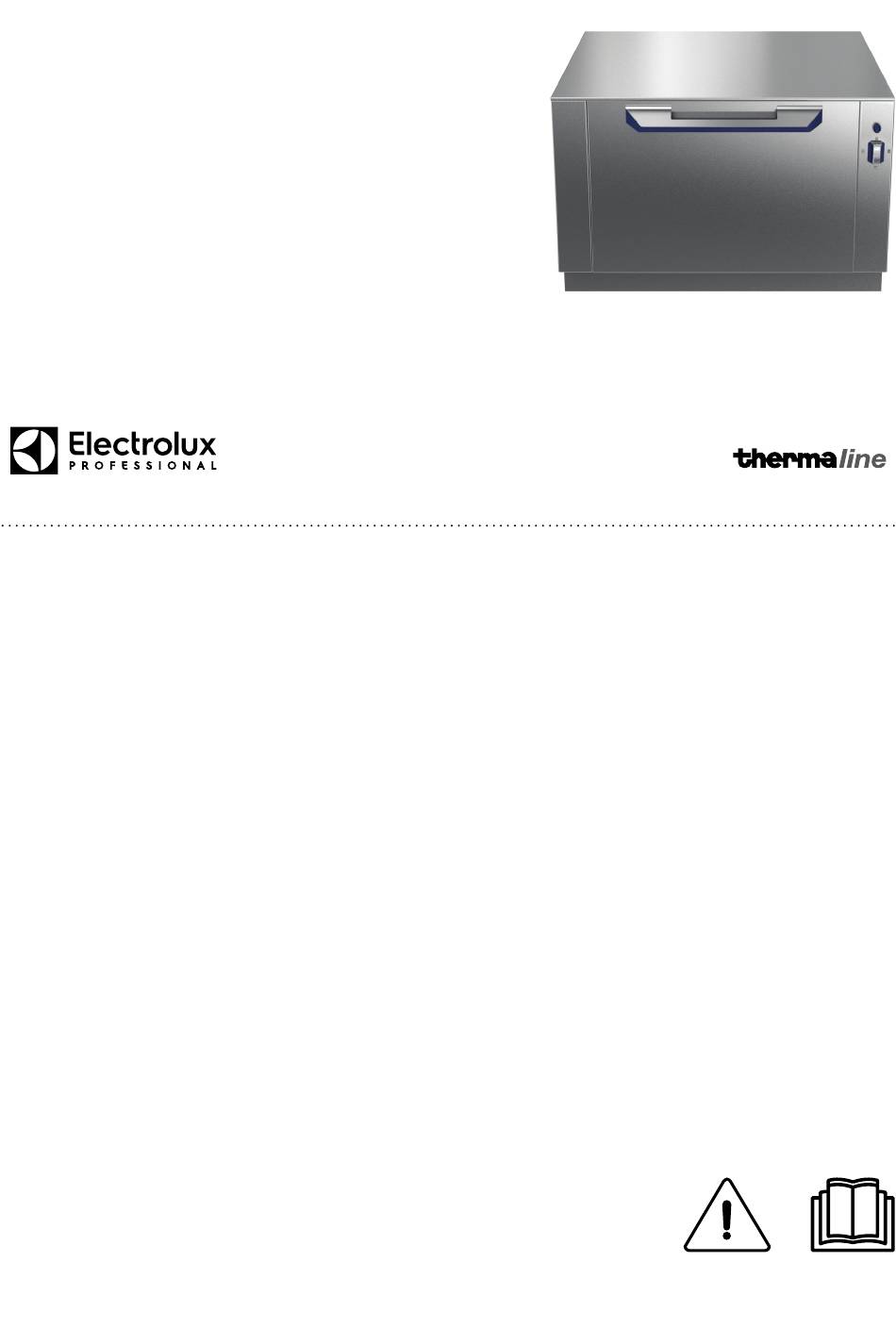

  • Page 1 Static Gas Oven EN-US Installation and Operating manual 599A18800 - 82.8131.11- 2020.12...
  • Page 2 Foreword Read the following instructions, including the warranty terms before installing and using the machine. Visit our website www.electroluxprofessional.com and open the Support section to: Register your product Get hints & tips of your product, service and repair information The installation, use and maintenance manual (hereinafter Manual) provides the user with information necessary for correct and safe use of the machine (or “appliance“).
  • Page 3: Table Of Contents

    Contents A WARNING AND SAFETY INFORMATION....................5 General information ........................5 Personal protection equipment ......................6 General safety ..........................6 General safety rules ........................7 Safety signs to be placed near the machine area ................. 8 Transport, handling and storage ...................... 9 Installation and assembly .......................
  • Page 4 H.6.4 Check the gas supply pressure .................... 28 H.6.5 Gas pressure regulator....................... 28 H.6.6 Primary air........................29 H.6.7 Primary air checking instructions ..................29 Main burner nozzle replacement ....................29 Ignition burner nozzle replacement ....................29 Safety thermostat ........................29 OPERATING INSTRUCTIONS .......................
  • Page 5: Awarning And Safety Information

    WARNING AND SAFETY INFORMATION General information To ensure safe use of the machine and a proper understanding of the manual it is necessary to be familiar with the terms and typographical conventions used in the documentation. The following symbols are used in the manual to indicate and identify the various types of hazards: WARNING Danger for the health and safety of operators.
  • Page 6: Personal Protection Equipment

    Personal protection equipment Summary table of the Personal Protection Equipment (PPE) to be used during the various stages of the machine's service life. Stage Protective Safety Gloves Glasses Safety garments footwear helmet ● ○ ○ — — Transport — ● ●...
  • Page 7: General Safety Rules

    • Air recirculation must take into account the air necessary for combustion, 2 m³/h/kW of gas power, and also the “well-being“ of persons working in the kitchen. • Inadequate ventilation causes asphyxia. Do not obstruct the ventilation system in the place where this appliance is installed.
  • Page 8: Safety Signs To Be Placed Near The Machine Area

    Residual risks • The machine has several risks that were not completely eliminated from a design standpoint or with the installation of adequate protection devices. Nevertheless, through this manual the Manufacturer has taken steps to inform operators of such risks, carefully indicating the personal protection equipment to be used by them.
  • Page 9: Transport, Handling And Storage

    Prohibition Meaning Keep the area around the appliance clear and free from combustible materials. Do not keep flammable materials in the vicinity of the appliance Install the appliance in a well-ventilated place to avoid the creation of dangerous mixtures of unburnt gases in the same room Danger Meaning...
  • Page 10: Electrical Connection

    Electrical connection Before connecting, make sure the mains voltage and frequency match those indicated on the appliance data plate. • Work on the electrical systems must only be carried out by specialised personnel. • Connection to the power supply must be carried out in compliance with the regulations and provisions in force in the country of use;...
  • Page 11: Reasonably Foreseeable Improper Use

    – go over all stainless steel surfaces vigorously with a cloth moistened with paraffin oil in order to create a protective film. • In case of electrical permanent connection: the device must be lockable in the open position and accessible even after the appliance is installed in its place. A.11 Reasonably foreseeable improper use Improper use is any use different from that specified in this manual.
  • Page 12: Machine Disposal

    Preventive maintenance • In order to ensure the safety and performance of your equipment, it is recommended that service is undertaken by Electrolux Professional authorised engineers every 12 months, in accordance with Electrolux Professional Service Manuals. Please contact your local Electrolux Professional Service Centre for further details.
  • Page 13: Ctechnical Data

    Electrolux Professional. subject to local terms and conditions. Warranty does not include scheduled maintenance activities Check on Electrolux Professional website the list of authorized (including the parts required for it) or the supply of cleaning customer care. TECHNICAL DATA Data plate position This instruction manual contains information relevant to various appliances.
  • Page 14: How To Interpret The Factory Description

    The factory description on the data plate has the following 700 mm / 27,56″, glass front panel meaning: 800 mm / 31,50″, glass front panel 700 mm / 27,56″, steel front panel Electrolux Professional AG Allmendstrasse 28 6 - User operating CH-6210 Sursee One side...
  • Page 15: Recipients Of The Manual

    Manufacturer Electrolux Professional SpA or any other Disposal of packing service centre authorised by Electrolux The packing must be disposed of in compliance with the Professional SpA.
  • Page 16: Etransport, Handling And Storage

    including correct interpretation of the drawings, signs and In case of a significant anomaly (e. g. short circuits, wires pictograms; coming out of the terminal block, motor breakdowns, worn electrical cable sheathing, etc.) the operator for normal • sufficient technical knowledge for safely performing his machine use must: duties as specified in the manual;...
  • Page 17 Floor installation options: 3. Against the wall on steel plinth or 1. On steel plinth or adjustable feet 2. On concrete plinth adjustable feet 31,5 / 33,5 / 35,4 in 31,5 / 33,5 / 35,4 in 31,5 / 33,5 / 35,4 in 800 / 850 / 900 mm 800 / 850 / 900 mm 800 / 850 / 900 mm...
  • Page 18: Installation And Connection Diagram

    Installation and connection diagram French tops with gas oven 35 mm 1,38 in 580 mm / 22,83 in 150 mm 130 mm 78 mm 78 mm 5,91 in 5,12 in 3,07 in 3,07 in 36 mm 1,42 in 33,46 29,92 21,26 21,65 31,50...
  • Page 19 Gas cookers with gas oven 150 mm 130 mm 35 mm 5,91 in 5,12 in 1,38 in 78 mm 78 mm 3,07 in 3,07 in 36 mm 1,42 in 33,46 29,92 21,26 21,65 31,50 25,35 7,87 17,72 1000 35,43 31,89 23,23 23,62 39,37...
  • Page 20: Accessing The Appliance's Internal Components

    Accessing the appliance’s internal components INSTALLATION AND ASSEMBLY Appliance type When describing our appliances, we distinguish between top modules A, base modules B and factory-assembled units C. Top and base modules can be set up together or as individual units. The appliance must always be installed in its intended location according to the relevant installation and connection diagrams (F Installation DIAGRAMS).
  • Page 21: Distances / Walls

    • on steel plinth furniture or similar, keep a safety-distance of approximately 150 mm / 5,91″ or fit some form of heat shield. • on concrete plinth When installing the unit in the immediate vicinity of walls, The appliances are suitable for setting up as single appliances partitions, kitchen units, decorative panels, etc., we recom- or as a group of appliances.
  • Page 22: Securing Or Adjusting To The Floor (Optional)

    3. Shift the appliance onto the transport pallet such that all of the installation connections lie within the appliance. 4. Tip the appliance until it is standing on the floor. Then lift at the front and remove the transport pallet. 5.
  • Page 23: Fastening Multiple Appliances Together

    Fastening multiple appliances together Remove lower panel A by undoing the screws. Push the units together. Use the adjusting screws on the feet to bring the appliances to the same height, then level them. Screw the appliances together at the base using the screw, washer and nut B.
  • Page 24 Available for appliance Height Width depth (mm, inch) inch inch 31,5″ 33,5″ 35,4″ 400 mm ● ● 15,75″ 700 mm ● ● ● Side panels for wall installation 27,56″ 800 mm ● ● 31,5″ 100 mm 300 – 2500 mm ●...
  • Page 25: Fixing The Side Panels

    Fixing the side panels G.7.1 Panels with a 12,5 mm / 0,49″ overhang Attach connecting rails B and C with the supplied Bring the side panel D into position. screws A. Make sure marking on part B on the rail is Put the 5 hooks of the panel F into the slots E.
  • Page 26: Side Cover Without Overhang

    G.7.2 Side cover without overhang The side cover should only be used as a closing off against the wall, against a niche and in between appliances (provided that these have the same dimensions). Standard cover has pre-cuts that you can adapt to the appliances according to the left/right side. Fit the 4 cage nuts A into the dedicated slots on the Attach connecting rails C and D with the supplied frame.
  • Page 27: Hgas Installation

    GAS INSTALLATION Gas, electricity, water and other A supply line with insufficient flow will affect correct operation of the appliances connected to it. connections (if present, depending on • If the gas feed pipe (flow, diameter, etc.) and/or upstream the appliance and/or model) gas valve are not designed correctly this may adversely •...
  • Page 28: Gas Connection

    The arrow on the regulator indicates the gas flow direction. 1. Electrolux Professional responsibility 2. Specialized personnel responsibility H.6.3 Sealing The screws on the gas lines must be sealed with suitable sealing material. Recommended sealing material for gas- supplying parts: •...
  • Page 29 Main burner nozzle replacement H.6.6 Primary air The flame must burn uniformly and dark blue, never yellow or 1. Runscrew nozzle A and replace with a nozzle that suits orange; there should not be any signs of soot and the flames the gas type;...
  • Page 30 2. Power level control I.4.2 Temperatures 3. Oven door The power levels correspond to following temperatures: • Position 1 - 210℉ First use • Position 2 - 260℉ Clean off any industrial protection grease from all parts of the • Position 3 - 320℉ appliance and accessories before first use.
  • Page 31 Oxygen-starving abrasives such as hydrochloric acid, chlor- Install in reverse order. ides and spice concentrates, mustard, vinegar essences, spice cubes and cooking salt solutions can lead to chemical damage or rupture of the passive layer, depending on the concentration and temperature. Extraneous rust (iron particles), the formation of galvanic elements and lack of oxygen could cause more damage.
  • Page 32 Should none of the measures listed below resolve the fault or if an error occurs that is not described here, disconnect the appliance from the mains supply (gas, water, electricity) and immediately contact the Electrolux Professional Customer Care Service. What to do if...
  • Page 33 NOTE! The symbol on the product indicates that this When scrapping the machine, any marking, this product should not be treated as domestic manual and other documents concerning the appli- waste, but must be correctly disposed of in ance must be destroyed. order to prevent any negative consequences for the environment and human health.
  • Page 36 Electrolux Professional AG Allmendstrasse 28 CH - 6210 Sursee www.electroluxprofessional.com...
