Sportsman GEN4000TRI Quick Start Manual

Follow This Step-By-Step
Guide To Using Your Generator
1
Remove generator from package
Oil Type: SAE10W-30 Oil (Must add BEFORE first use)
2
Add Oil
Oil Capacity: 18.5 fluid oz
Because this generator includes Low Oil Shut Off, the
generator will not start with low oil)
3
Connect
If using Gasoline, add fuel and turn Gasoline Fuel Petcock to On (Fig C).
If using LP, connect regulator hose (Fig A) to Propane Fuel Tank and to the
Fuel
Gas Inlet (Fig B). Make sure the LPG adapter (Fig F) is connected (Fig E).
If using NG, replace the LPG adapter with the NG adapter (Fig E).
(NOTE: Adapters are labeled with LPG and NG. (Fig F))
Directly connect to the NG system with a gas hose no less than 3/8" (inside
diameter), no longer than 10 ft (3m), and to the gas inlet (Fig B). DO NOT
(Figure F)
use the LP regulator hose (Fig A) for NG.
Refer to the manual for detailed information.
4
Start The Generator
Use the generator OUTDOORS in a WELL VENTILATED AREA.
DO NOT CONNECT electrical devices until AFTER the generator
is started.
Turn Power Switch to ON
Adjust the CHOKE to CLOSED position (Figure D)
To start the generator manually, use the Recoil (Pull) Start.
Once the engine has started, wait an addtional 2 minutes to allow
the engine to warm up. Then turn the CHOKE LEVER to OPEN
position. You can now connect electrical devices.
Regulator Hose (Figure A)
Fuel On
Fuel Off
Fuel Petcock (Figure C)
WARNING
IF THERE IS ANY QUESTION ABOUT A
CONDITION BEING SAFE OR UNSAFE,
DO NOT OPERATE THIS PRODUCT!
Always follow Warning labels placed on the
generator, and read and follow all Warning
labels included inside the Product Manual.
WARNING: NEVER use a generator inside
a home or a garage, EVEN IF the doors
and windows are open.
ONLY USE OUTSIDE and far way from
windows, doors and vents leading into an
enclosed area.
Using a generator indoors can kill you in
minutes. The generator produces an
exhaust that contains carbon monoxide.
This is a poison you cannot see or smell.
Do not attach a chain or rope to secure the
generator to a post as this can be difficult to
remove in the event of an emergency.
TOLL-FREE NATIONWIDE HELP LINE! 866-460-9436
This generator includes
ATTENTION
a built-in Carbon Monoxide
Warning Alert! The generator
will automatically shut-off if
dangerous levels of Carbon
ALERT!
Monoxide is detected.
Gas Inlet (Figure B) Adapter (Figure E)
Propane / NG
Choke (Figure D)
Power
Switch
Recoil
Start
Need Help? Call Customer Service!
Monday-Friday 8:00 AM - 4:00 PM Central Time

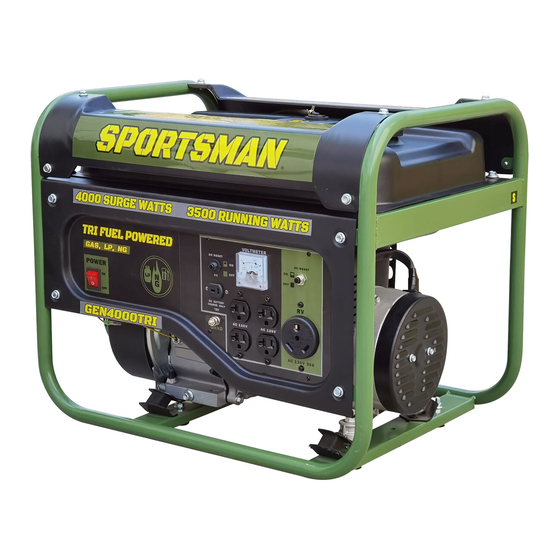

ITEM # GEN4000TRI
4,000 Surge / 3,500 Running Watts
TRI FUEL : GAS/ LP / NG GENERATOR
GENERATOR SPECIFICATIONS:
• 4 - 120V A/C Outlets
• 1 - 120V RV Outlet
• 1 - 12V D/C Outlet
• Recoil Start
• 7 HP OHV Engine
• Displacement: 212cc
• Phase: Single
• AC Voltage: 120V @ 60Hz
• Decibel Rating <68 db @ 24 Feet
• Mobility Kit: Not Included
• Complies with EPA emissions
• Engine Run Time: 10 Hours @ 50% Load (Gas)
• Engine Run Time: 12 Hours @ 50% Load (LP)
• Fuel Tank Capacity: 3.6 Gallon
• High Altitude Use: This generator is not
recommended for high altitude use 3,000 feet above
sea level.
• If you are using a generator at 3,000 feet above
sea level, the generator may not function properly
because of air flow getting through the carburetor.
• Warranty: 2 YEAR Limited Emissions
• Warranty: 1 YEAR Limited
• DO NOT use E85, gas/oil mix, or modify the
engine to run on alternate fuels.
OIL IS NOT INCLUDED WITH THIS
GENERATOR. IT IS SOLD SEPARATELY.
Read and understand instruction manual
before using generator.
Add Fuel
Add Oil
