NavTool NAVRGB6.0-VI Installation Manual page 8

Installation Instructions

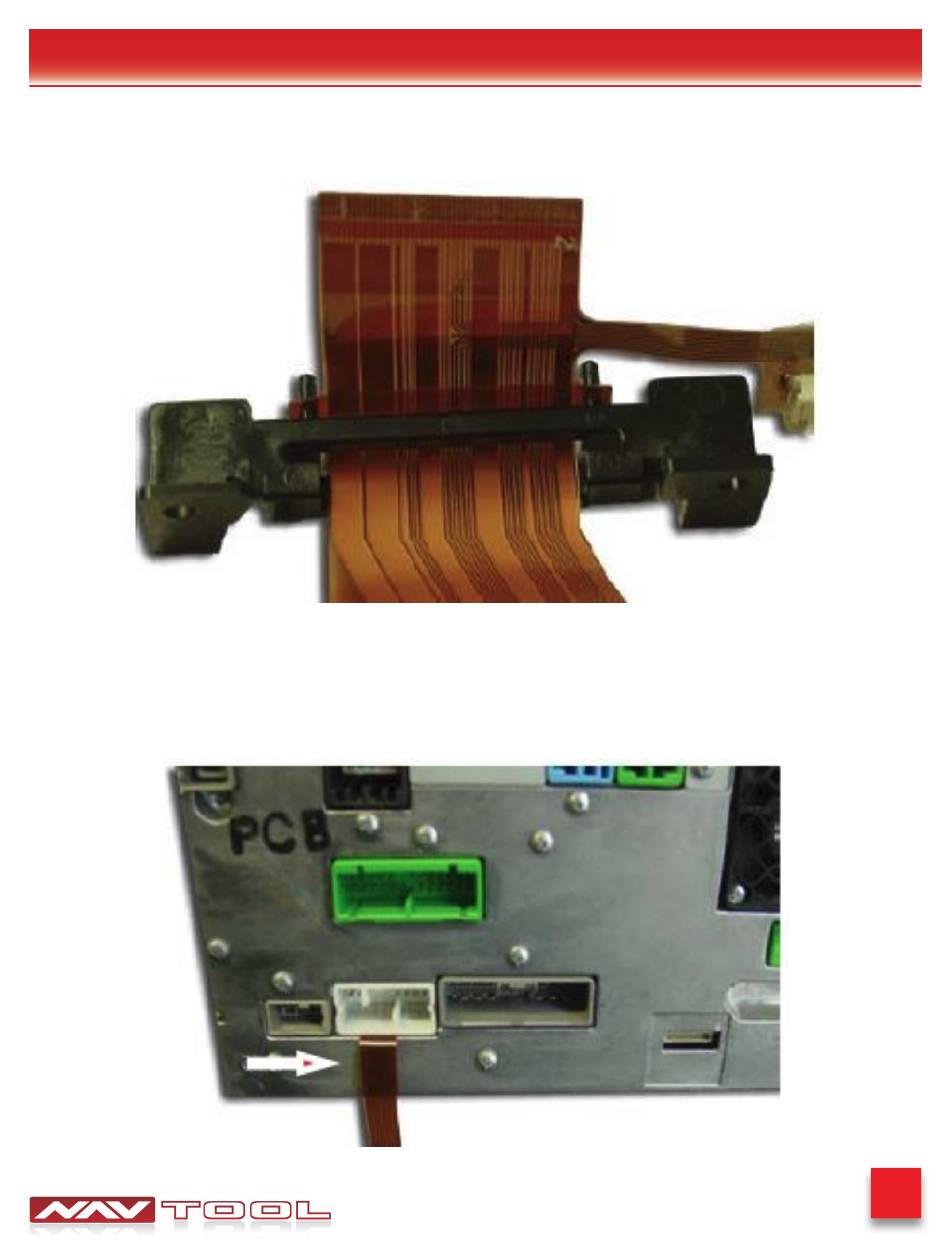

Step 9: Place the supplied ribbon cable through the black plastic fastener in the same way the factory ribbon
cable originally was with the silver pads facing UP.
Step 10: Route the supplied small flex ribbon cable thru the back of the radio, under the white connector with
silver traces facing DOWN.
