OPERATOR'S MANUAL
MANUEL D'UTILISATION
MANUAL DEL OPERADOR

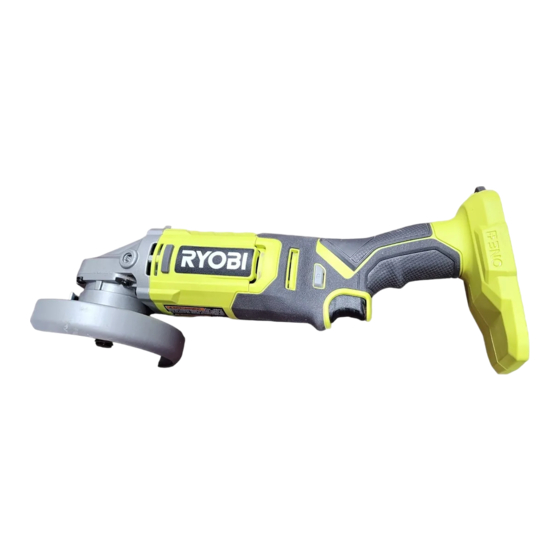

18 VOLT ANGLE GRINDER
MEULEUSE D'ANGLE DE 18 V
AMOLADORA ANGULAR
DE 18 V
PCL445
INCLUDES: Angle Grinder, Side Handle/
Wrench, Grinding Wheel, Operator's Manual

TABLE OF CONTENTS

****************
 General Safety Rules .......................2-3
 Specific Safety Rules ......................3-5
 Symbols ..............................................6
 Features ..............................................7
 Assembly .........................................7-8
 Operation .......................................9-11
 Maintenance ..................................... 12
 Illustrations ..................................13-15
 Parts Ordering and Service
............................................Back page
WARNING:
To reduce the
risk of injury, the user must read and
understand the operator's manual
before using this product.
SAVE THIS MANUAL FOR
FUTURE REFERENCE
INCLUT : Meuleuse d'angle, Poignée
latérale/llave, muela abrasiva, manual del
operator
TABLE DES MATIÈRES
****************
 Symboles ............................................6
 Caractéristiques ................................. 7
 Assemblage .....................................7-8
 Utilisation ......................................9-11
 Entretien ...........................................12
 Illustrations ..................................13-15
 Commande de pièces et dépannage
..........................................Page arrière
AVERTISSEMENT :
réduire les risques de blessures,
l'utilisateur doit lire et veiller à bien
comprendre le manuel d'utilisation avant
d'employer ce produit.
CONSERVER CE MANUEL
POUR FUTURE RÉFÉRENCE
INCLUYE: Amoladora angular, mango
lateral/llave, brida circular, manual del
operador
ÍNDICE DE CONTENIDO
****************
 Símbolos ............................................6
 Características ...................................7
 Armado .......................................... 7-8
 Funcionamiento ........................... 9-11
 Mantenimiento .................................12
 Illustraciones .............................. 13-15
 Pedidos de piezas y servicio
......................................Pág. posterior
ADVERTENCIA:
Pour
el riesgo de lesiones, el usuario debe leer
y comprender el manual del operador
antes de usar este producto.
GUARDE ESTE MANUAL
PARA FUTURAS CONSULTAS
Para reducir
