CASED COOLING COIL INSTALLATION FOR GAS-FIRED
INDOOR HEATER
NOTE: Installation should be done by a qualified agency in accordance with these instructions
and in compliance with all codes and requirements of authorities having jurisdiction.
• These instructions are for installing an optional cased cooling coil on a model CAUA heater (see
coil may be ordered as either model ACU (A, B, or C) or as a C option. Thermostatic expansion valves selected
to match the coil are shipped loose for field-installation.
• Shipped with the heater is a package of parts required to install a heat section condensate drain. When the
application includes a cooling coil, installation of the heat section condensate drain is required.
• Refer to the installation manual provided with the heater for important safety information and for instructions to
install the heater. The heater should be in its final installation location without discharge ductwork before installing
the cooling coil.
• Refer to
Table 1
to match model CAUA and ACU unit sizes with available cooling coils.
NOTE: All cooiling coils are for use with R-410A refrigerant.
Model CAUA
Cased Cooling
Unit Size
Coil Model
150, 200
ACUA
250, 300
ACUB
*
ACUC
350, 400
*
The cased cooling coil for unit sizes 350 and 400 may include a factory-installed discharge plenum (option CD62). To install a cased cooling
coil with a discharge plenum, refer to these instructions plus the instructions in the CAUA-DISCH-PLENUM manual available at
reznorhvac.com.
MODEL CAUA

GENERAL INFORMATION

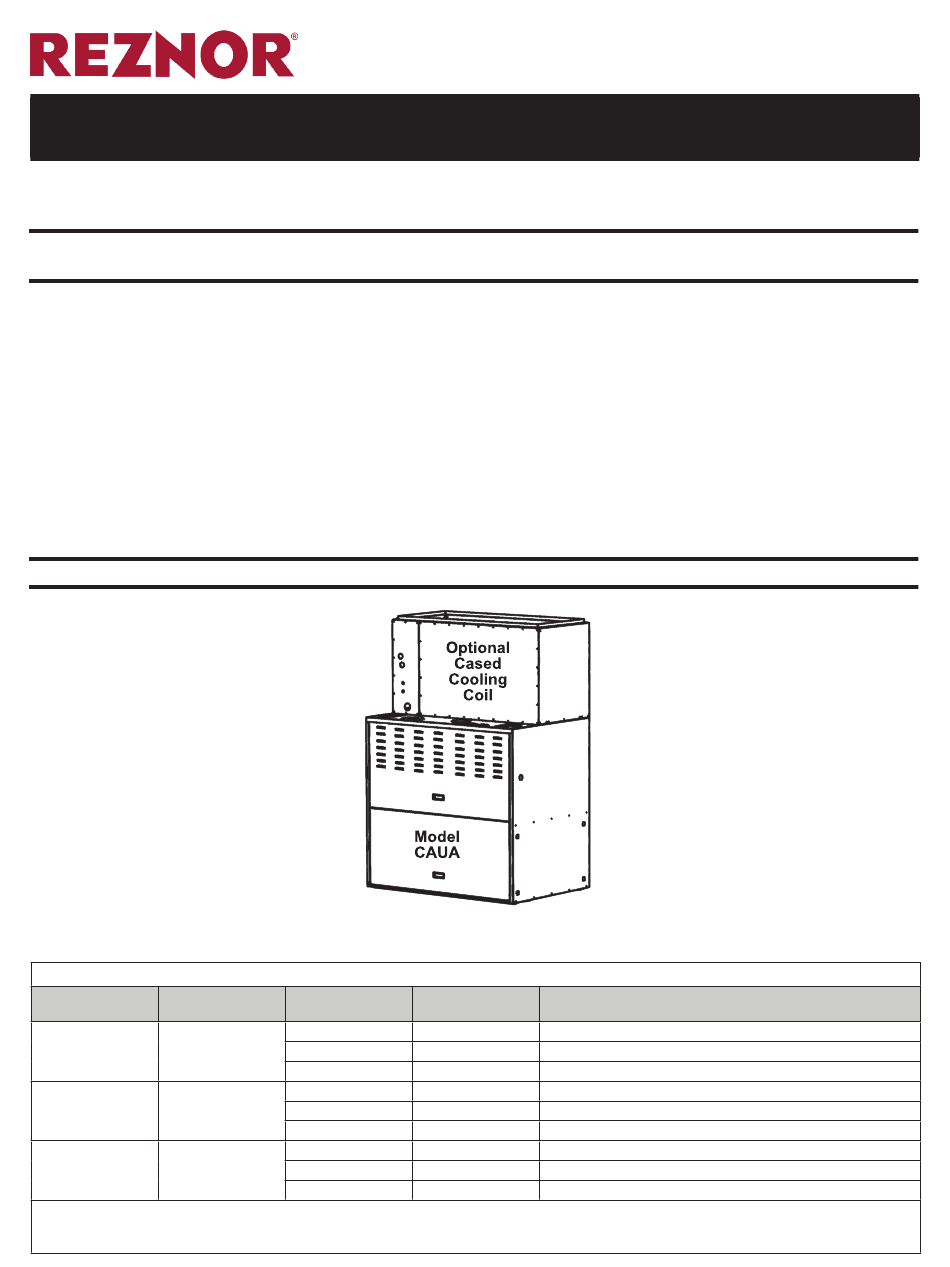

Figure 1. Model CAUA with Optional Cooling Coil
Table 1. Cooling Coils
ACU Unit
Size
060
072
090
090
120
150
120
150
180
Revision: CAUA-COOLING-COIL (03-22) 166152-A
Supersedes: I-CAUA-CC (04-15) PN166152R5
Option
C060
5-ton, single-circuit A or dual-circuit A (1/3–2/3) cased coil
C072
6-ton, single-circuit A cased coil
C090
7.5-ton, dual-circuit A (50/50 or 1/3–2/3) cased coil
C090
7.5-ton, dual-circuit A (50/50 or 1/3–2/3) cased coil
C120
10-ton, dual-circuit A (50/50 or 1/3–2/3) cased coil
C150
12-ton, dual-circuit A (50/50 or 1/3–2/3) cased coil
C120
10-ton, dual-circuit A (50/50 or 1/3–2/3) cased coil
C150
12-ton, dual-circuit A (50/50 or 1/3–2/3) cased coil
C180
15-ton, dual-circuit A (50/50 or 1/3–2/3) cased coil
Figure
1). The
Description
www.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAUA and is the answer not in the manual?

Questions and answers

Summary of Contents for Reznor CAUA

  • Page 1 The cased cooling coil for unit sizes 350 and 400 may include a factory-installed discharge plenum (option CD62). To install a cased cooling coil with a discharge plenum, refer to these instructions plus the instructions in the CAUA-DISCH-PLENUM manual available at www.
  • Page 2 1-1/8 1-3/8 258867 257544 216432 220557 1-1/8 1-1/8 1-3/8 258868 257336 216428 216432 234052 220557 1-1/8 1-3/8 Circuit A is bottom connection. Circuit B is top connection. Liquid line tubing size. Refer to Table 3 for specifications. CAUA-COOLING-COIL (03-22) 166152-A...
  • Page 3 BBIZE-2 257329 257330 257331 220553 BBIZE-3 257332 257333 257334 220554 BBIZE-4 257335 257336 257538 220555 BBIZE-6 257539 257540 257541 220557 BBIZE-8 257542 257543 257544 234052 BBIZE-5 258846 Dimensions Figure 2. Cased Cooling Coil Dimensions (Refer to Table CAUA-COOLING-COIL (03-22) 166152-A...
  • Page 4 NOTE: Hole locations: suction lines = G × P for circuit A or F × Q for circuit B, liquid lines = J × N for circuit A or H × N for circuit A, drain = K × M. Weights Table 5. Cased Cooling Coil Weights CAUA Unit Size Cased Cooling Coil Model Option...
  • Page 5 9 o’clock 3 o’clock Suction line Bulb at cross-section Bulb at TXV bulb 8 o’clock 4 o’clock Capillary Field-supplied tubing equalizer tubing Suction line from TXV TXV bulb Figure 3. TXV Bulb Installation (Applies to Both Circuits) CAUA-COOLING-COIL (03-22) 166152-A...
  • Page 6 Figure 4. Equalizer Line Installation (Applies to Both Circuits) Heat Section Condensate Drain Line Installation When a cooling coil is installed on a model CAUA heater, a heat section condensate drain line must be installed. Refer to burner condensate drain kit installation instructions available at www.reznorhvac.com...
  • Page 7 • YEAR-ROUND USAGE: Climates or applications with cooling requirements year-round require more frequent inspections of the cooling coil cabinet and condensate drains. Depending on climate, freeze-protection of traps may be required during non-cooling hours. CAUA-COOLING-COIL (03-22) 166152-A...
  • Page 8 MASA or field-provided condensing unit to complete the cooling system. Specifications and illustrations subject to change without notice or incurring obligations. Latest version of this manual is available at www.reznorhvac.com. ©2022 Nortek Global HVAC LLC, O’Fallon, MO. All rights reserved. CAUA-COOLING-COIL (03-22) 166152-A...
