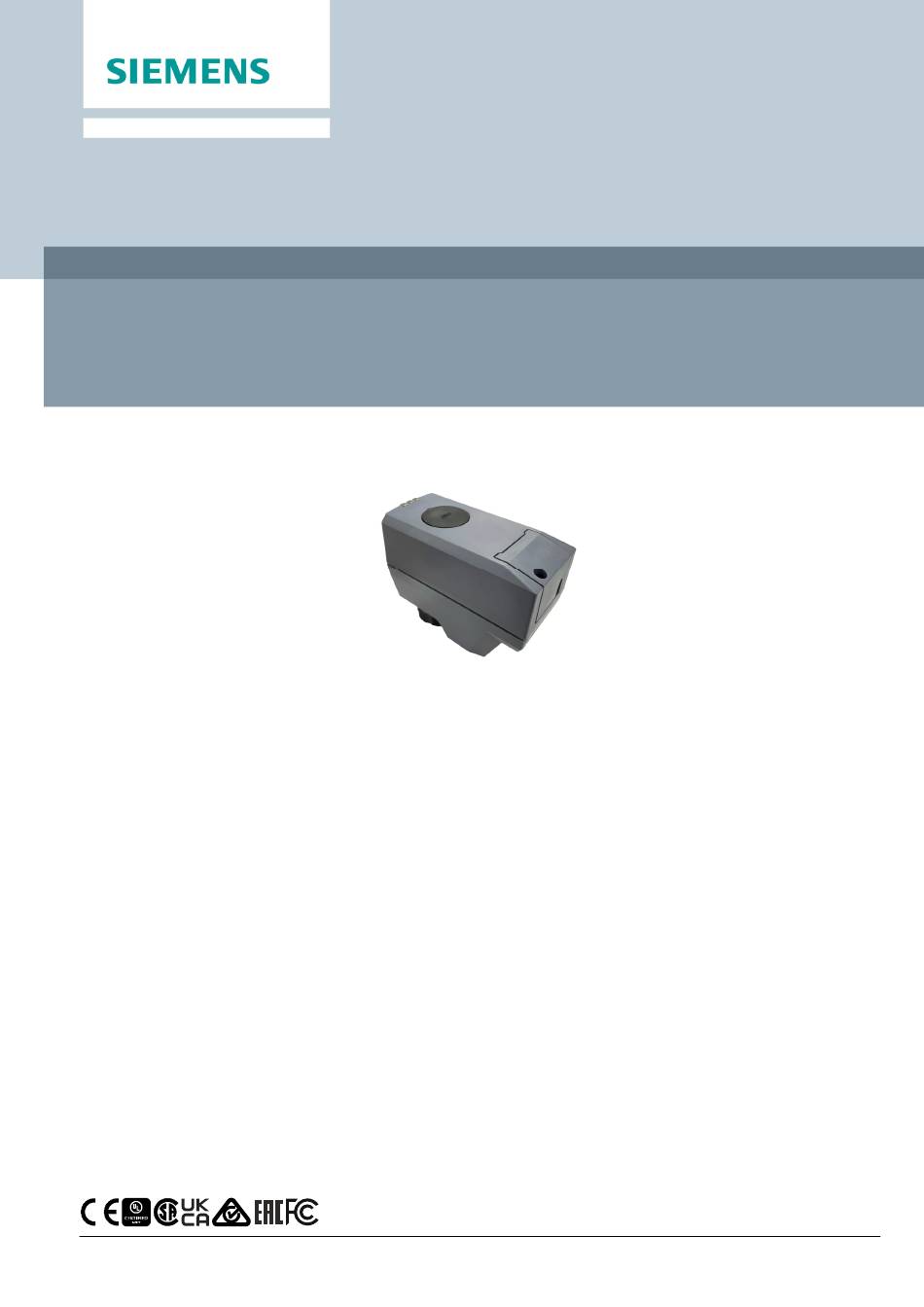

Electromotoric actuator
SSB161.05U
A6V12681516_enUS_a
10/12/2022
For Powermite MZ Series 2-way and 3-way globe valves
Operating voltage AC/DC 24 V, positioning signal DC 0...10 V
Self-calibrating to the valve stroke
Direct mounting with coupling nut, no tools required
Manually override
Position and actuator motion indication (LED)
Positioning force 45 lbf (200 N)
Parallel operation of multiple actuators possible
Smart Infrastructure

Advertisement

loading
Need help?

Need help?

Do you have a question about the SSB161.05U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Siemens SSB161.05U

  • Page 1 Electromotoric actuator SSB161.05U For Powermite MZ Series 2-way and 3-way globe valves ● Operating voltage AC/DC 24 V, positioning signal DC 0...10 V ● Self-calibrating to the valve stroke ● Direct mounting with coupling nut, no tools required ● Manually override ●...
  • Page 2 Typically in chilled ceiling, VAV, unit ventilators, fan coil unit and other terminal unit ap- plications ● Max.10 units of SSB161.05U can operate in parallel, provided the controller output suffices. Technical design When the actuator is driven by DC 0…10 V positioning signal, it produces a stroke, which is transmitted to the valve stem.
  • Page 3 Valves and actuators can be ordered assembled in the factory or ordered separately. For easier valve assembly, actuators ordered separately have the actuator stem fully retracted. Equipment combinations Valves Combinable valves for SSB161.05U- 2-way Powermite 599 MZ Series Action Nominal Line Size Flow Rate...
  • Page 4 Flow Rate Connection Inch FxUM AFxUM 0.75 (5.43) 599-01129 599-01130 – (8.6) 599-01131 – – Combinable valves for SSB161.05U – 3-way Powermite 599 MZ Series Nominal Line Size Flow Rate Connection Inch (0.34) 599-01132 0.63 (0.54) 599-01133 (0.85) 599-01134 (1.37) 599-01135 (2.15)
  • Page 5 The actuator must be commissioned only with a correctly mounted valve in place! Self-calibration When operating voltage is applied, the actuator self-calibrates (fully retracted ➙ fully extended ➙ setpoint). Fully retracted Fully extended Calibration Power Siemens A6V12681516_enUS_a Smart Infrastructure 10/12/2022...
  • Page 6 If operating voltage is applied to actuator, press button (a) before and after manually adjusting the position of the actuator stem. If no operating voltage and control signal are applied, manual operation can be done without pressing button (a). Cabling operation 1. Unscrew cover screw 2. Remove cover Siemens A6V12681516_enUS_a Smart Infrastructure 10/12/2022...
  • Page 7 Comply with all local and currently applicable laws and regulations. Warranty Technical data on specific applications are valid only together with Siemens products listed under "Equipment combinations". Siemens rejects any and all warranties in the event that third-party products are used.
  • Page 8 Open Source Software (OSS) Software license overview These devices use Open Source Software (OSS). All Open Source Software components used in the product (to include copyrights and licensing agreement) are available at http://siemens.com/bt/download. Firmware version OSS document Device Document ID Title 2.10.0 or above...
  • Page 9: Technical Data

    Plastic coupling nut 3/4” inch Orientation Above horizontal Standards EU conformity (CE) A5W00254962A RCM conformity A5W00254983A UKCA A5W00257055A Housing protection degree NEMA 2 / IP20 (EN 60529) Protection class according to EN 60730 Pollution degree Siemens A6V12681516_enUS_a Smart Infrastructure 10/12/2022...
  • Page 10 -13 to 158°F (-25…70 ℃) Temperature Humidity 5…95 % r.h. <95 % r.h. 5…95 % r.h. non condensing non condensing non condensing Atmospheric Min. 700 hPa, corresponding to pressure max. 3,000 m above sea level Siemens A6V12681516_enUS_a Smart Infrastructure 10/12/2022...
  • Page 11 Material Cover/base PC + ABS Weight 7.8 ounces (220 g) Siemens A6V12681516_enUS_a Smart Infrastructure 10/12/2022...
  • Page 12 SP, G = System potential AC 24 V SN, G0 = System neutral Y = Control signal SN (-) Dimensions mm (inch) 76.7 27.7 (3") (1.9") (1.1") Revision numbers Type Valid from rev. no. SSB161.05U Siemens A6V12681516_enUS_a Smart Infrastructure 10/12/2022...
  • Page 14 Issued by © Siemens Switzerland Ltd, 2022 Siemens Switzerland Ltd Technical specifications and availability subject to change without notice. Smart Infrastructure Global Headquarters Theilerstrasse 1a CH-6300 Zug +41 58 724 2424 www.siemens.com/buildingtechnologies Document ID A6V12681516_enUS_a Edition 10/12/2022...
