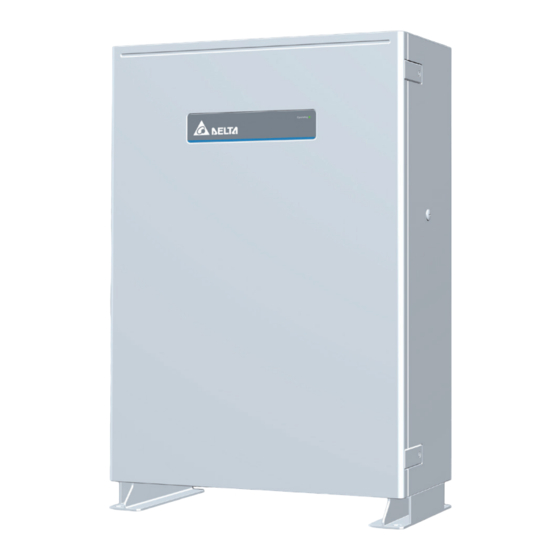

Delta BX6.3 DD Quick Installation Manual

BX6.3_DD user manual
For more instruction and specification,
please scan QR-code to see user manual.
> Battery > BX6.3_DD Operation and Installation Manual
- https://mydeltasolar.deltaww.com/?p=product_manual

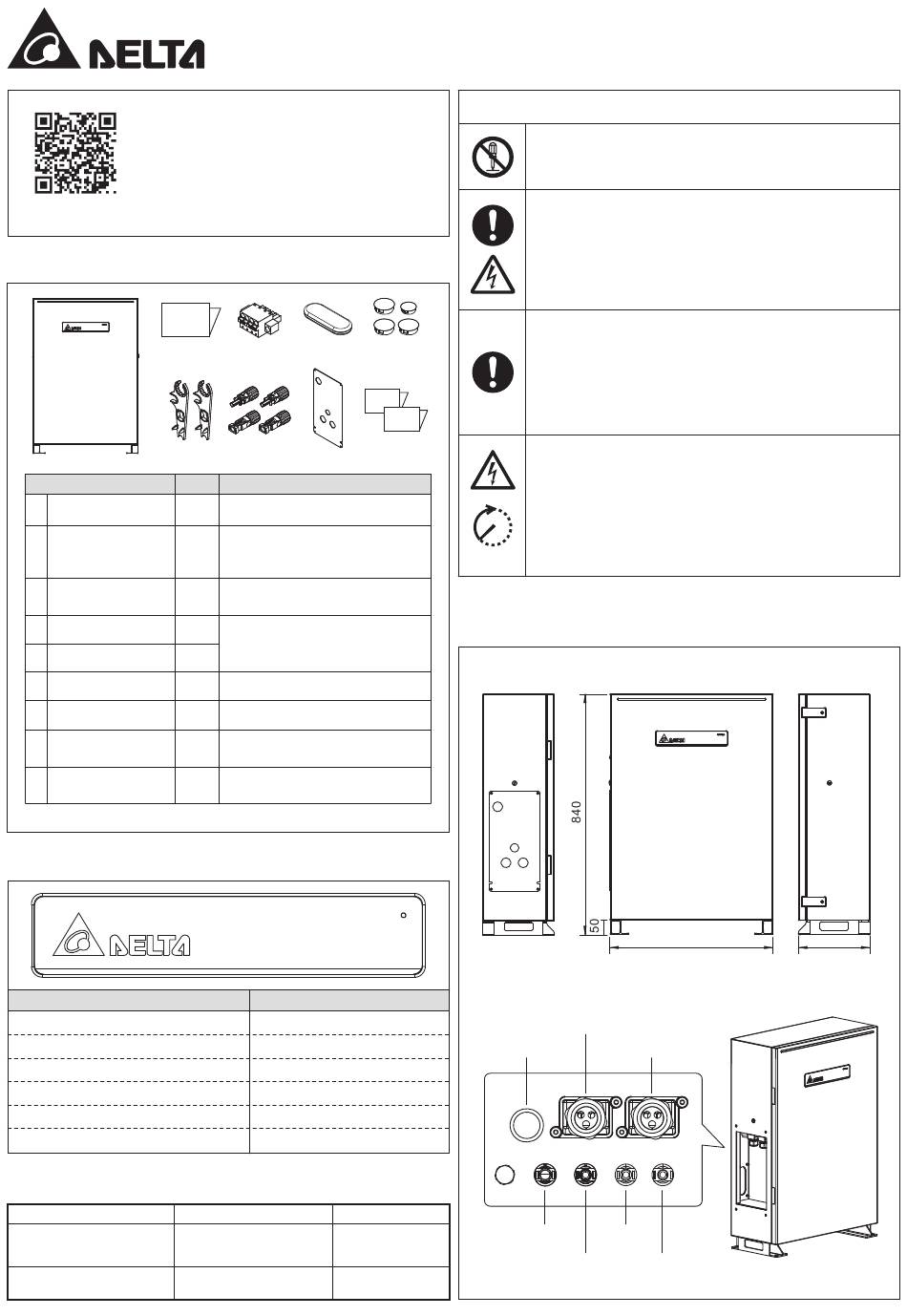

Descriptions of Components
①
Object
①
Delta BX6.3_DD
Quick
②
Installation Guide
(English)
Communication
③
connector
④
Rubber cover
⑤
Plastic cover
⑥
H4 Wrench
⑦
H4 Connector
⑧
Wiring Cover
⑨
Japanese Manual *
* Japanese manual is only intended for Japanese market.
LED Indicators
LED Status
GREEN FLASH
ORANGE ON
GREEN ON
RED FLASH
RED ON
RED & GREEN FLASH ALTERNATELY
Push Button
Status
BX6.3_DD power OFF
BX6.3_DD power ON already
② ③ ④
⑥ ⑦ ⑧
Qty Description
1 Residential DC ESS
The Instruction to provide the
information of safety, installation
1
and specification.
Connector for inverter
1
communication board
1
Protective cover for non-critical
waterproof and dust prevent
4
2 To disconnect H4 connector
2 pair Connector for inverter
Protective cover to prevent users
1
from touching the power cable
User manual and Quick install
2
guide in Japanese
Definition
Standby mode
Charge
Discharge
Boot up / Shut down
BMS error
Programming
Operation Action
Power button push > 20 sec Power ON the unit
(until grid green LED flash) (Cold start-up)
Power button push >1 sec Power OFF the unit
⑤
⑨
60 seconds
Dimensions and Interface Overview
Operating
unit: mm
Push button
Inverter Bus+
Battery Storage System
Quick Installation Guide
Warning
Do not open this product or insert tools due to shock and fire hazard
which may cause injury.
The following instructions must be adhere when installing:
● The product is intended to be installed and operated by qualified
personnel or service personnel only.
● Do not power up the device before installation is complete.
● All circuit breakers must be in the OFF position before commencing
installation.
● Do not install BX6.3_DD near or on flammable surfaces.
● Please mount BX6.3_DD tightly on a solid / smooth surface.
● Install BX6.3_DD in a location that prevents damage from flooding.
● Do not expose BX6.3_DD to ambient temperatures above 60°C or
below -20°C.
● Operating or storing BX6.3_DD in temperatures outside its specified
range might cause damage to BX6.3_DD.
Danger to life through electric shock
Potentially fatal voltage is applied to the unit during operation.
Voltage persists 60 seconds after disconnection of power supply.
Never open the unit. The unit contains no components that must be
maintained or repaired by the operatoror installer.
Opening the housing will void the warranty.
570
Inverter Comm.
Ex Comm.
BT+
Inverter Bus- BT-
BX6.3_DD
250
