TBS technologies TBS2801 User Manual

Hdmi 4k 60 video encoder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TBS6301T is a HDMI 4K UHD Video Encoding Card, being capable of max 3840 x 2160P@60fps input and H.265 &
H.264 encoding.

Key Feature:

1.
HDMI 2.0 Input,
2.
HDCP 2.2 supported
3.
Supports to 4K_60hz (3840x2160p_60hz) in and supports 4K_60fps (3840x2160p_60fps) out maximum
4.
H.265/H.264 Encode
5.
Audio AAC Encode
6.
Bitrate adjust 5~60Mbps
7.
Support 2160p_60hz/2160p_50hz/2160p_30hz/1080p_60hz/1080p_50hz/720p and lower input. Does not
support Interlace input (For instance, 1080i_60hz/1080i_50hz and ect.).
8.
Web UI Control

Hardware Connection

1.

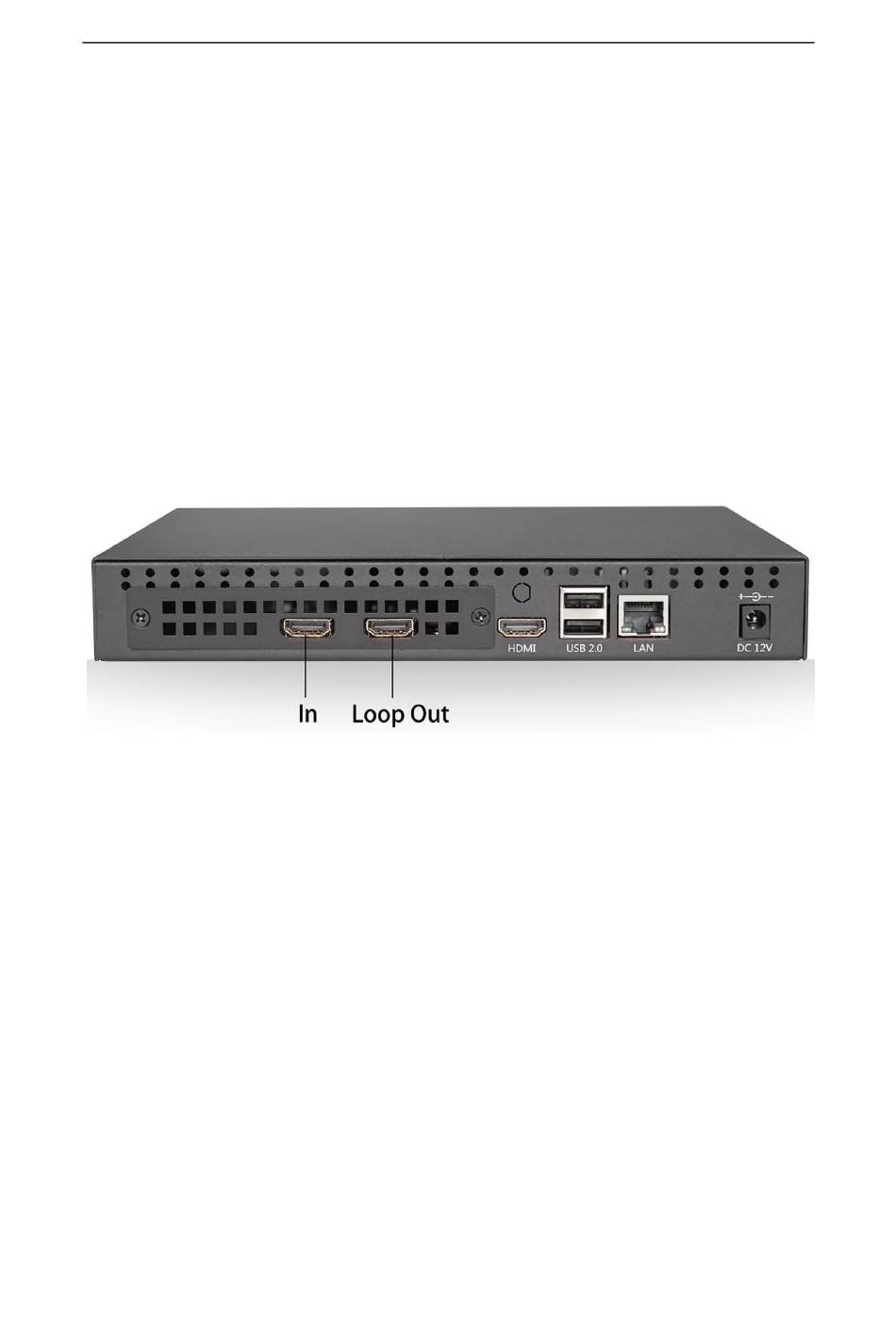

Connect your HDMI Source. It could be coming from Android box, Tv Receiver, DVD Player, Camera and ect.
In: HDMI IN; Loop Out: HDMI Loop out.
HDMI Cable requires HDMI 2.0 Cable or higher, because a normal HDMI Cable does not have plenty of
bandwidth to transmit 4K_60 media.
Please make sure HDMI Cable is tightly connected to Encoder.
2.
Connect LAN Cable. Because Encoder is pre-set a static IP "192.168.1.168" in default, please make sure your
PC/Laptop also works in a same IP range "192.168.1.xxx". Encoder and PC/Laptop connect
For instance, you can manual set "IP: 192.168.1.100, Net mask: 255.255.255.0, Gateway: 192.168.1.1" for
your PC/Laptop.
3.
Connect the power, DC 12V/3A adapter.
www.tbsdtv.com
TBS2801 HDMI 4K_60 Video Encoder
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TBS2801 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TBS technologies TBS2801

Summary of Contents for TBS technologies TBS2801

  • Page 1 TBS2801 HDMI 4K_60 Video Encoder TBS6301T is a HDMI 4K UHD Video Encoding Card, being capable of max 3840 x 2160P@60fps input and H.265 & H.264 encoding. Key Feature: HDMI 2.0 Input, HDCP 2.2 supported Supports to 4K_60hz (3840x2160p_60hz) in and supports 4K_60fps (3840x2160p_60fps) out maximum H.265/H.264 Encode...
  • Page 2 www.tbsdtv.com Web UI login Default IP: 192.168.1.168 Default web UI login: http://192.168.1.168:3000 Default login/pwd: admin/123456 Dashboard System state: CPU, RAM consumption Network: the traffic statistic of Ethernet port Interface state: green means input is detected. “width, height, frame rates” will be also indicated. If input does not detect, it will show “gray”...
  • Page 3 www.tbsdtv.com 3.Audio sample rate: It’s same as the input. For audio in, the supported sample rate is 44.1khz & 48khz. 4.Video codec: H.265, H.264 If the source is 3840x2160p_60hz/50hz in, the video codec supports H.265 (H.265 3840x2160p_60fps) only; if source is “3840x2160p_30hz or lower like 1920x1080p_60hz, 1080p_50hz, 720P_60hz and ect.”, video codec can H.265 or H.264.
  • Page 4 www.tbsdtv.com Reset: 1.If you finish the encode configuration and go to “Save”, it might remind “fail”, and if it occurs several times in succession. In this case, you can have a try “Reset”. 2. Streaming failed. In this case, you can also try “Reset”. For “Reset”, it will take around 40 seconds, please wait more seconds.
  • Page 5 www.tbsdtv.com RTSP 1.Port: 1~65535. Be careful, please not to use these ports which are taken. 2.Suffix: path of the url. 3.Transport protocol: TCP, UDP. RTP/UDP Unicast: RTP/UDP Unicast, it means streaming to a specified destination. Multicast: Multicast address, please refer to the following: https://en.wikipedia.org/wiki/Multicast_address...
  • Page 6 www.tbsdtv.com RTMP/RTMPS RTMP push Syntax: rtmp://ip:port/app_name/stream_name rtmp://username:password@ip:port/app_name/stream_name rtmps://ip:port/app_name/stream_name Reference: Youtube rtmp://a.rtmp.youtube.com/live2/2za0-4pgx-c7ha-xxxx-xxxx{stream_key} Twitch rtmp://live-dfw.twitch.tv/app/xxxxxxxxx{stream_key} Wowza rtmp://2012:Admin1998@media.xx-mediaserver.com:1935/8018/xxxxxx Facebook. rtmps://live-api-s.facebook.com:443/rtmp/xxxxxxxx {stream_key}...
  • Page 7 www.tbsdtv.com caller: the "agent" (this application) sends the connection request to the peer, which must be listener, and this way it initiates the connection. listener: the "agent" waits to be contacted by any peer caller. Note that a listener can accept multiple callers, but srt-live-transmit does not use this ability;...
  • Page 8 www.tbsdtv.com System Network configuration, change the password of web UI, reboot & reset for Encoder, Firmware upgrade. Network configuration: default is static IP “192.168.1.168”. If you set to DHCP please check the new IP on Oled screen. Reset: it contains reset Encoder to the default configuration and also reboot Encoder. Any other question, please write to us: support@tbsdtv.com...
