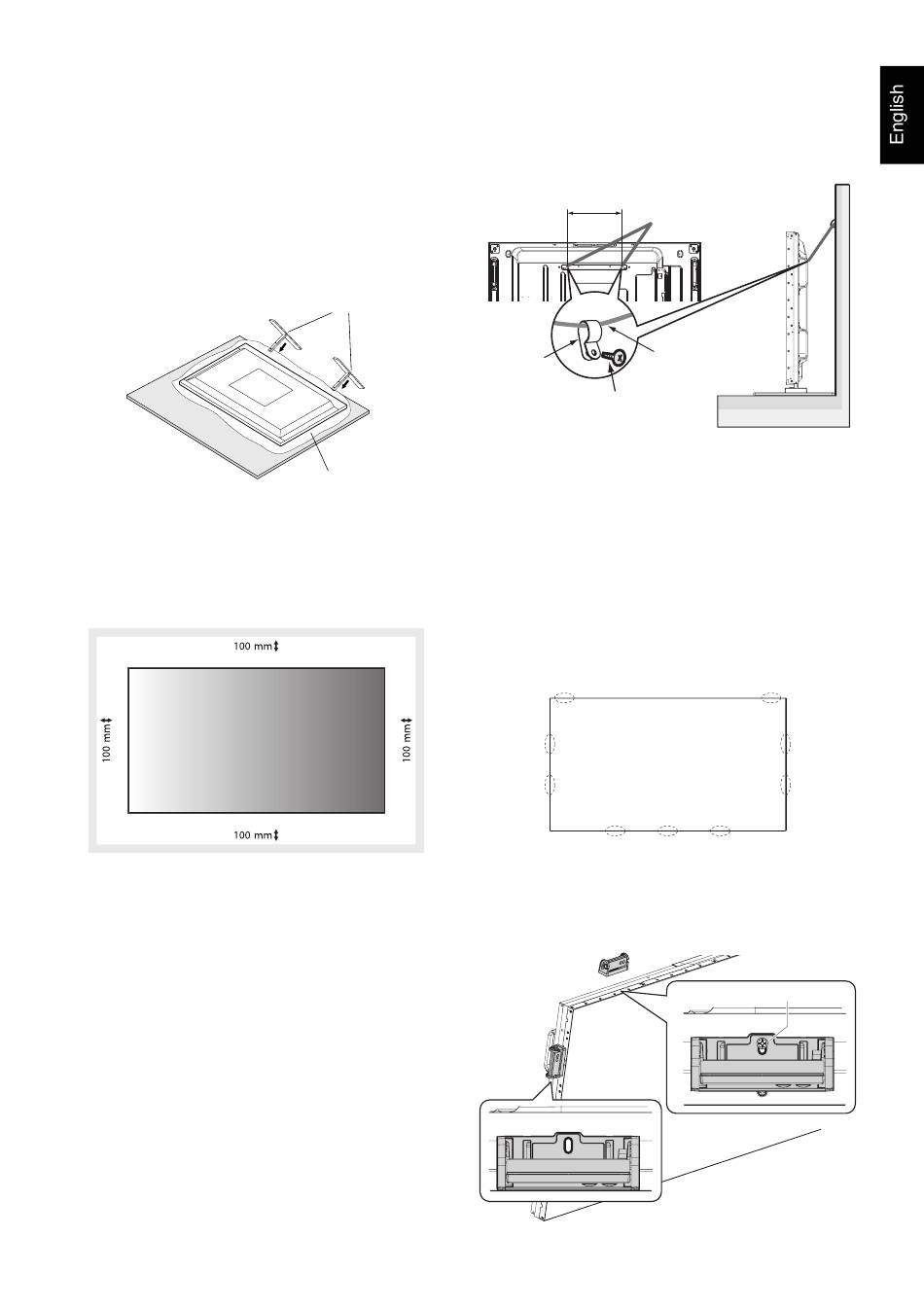

3. Installing and removing optional table
top stand
CAUTION: Installing and removing the stand must be done
by two or more people.
To install, follow those instructions included with the stand or
mounting apparatus. Use only those devices recommended
by the manufacturer.
NOTE: Use ONLY thumbscrews which are included in the
monitor.
When installing the LCD monitor stand, handle the unit with
care to avoid pinching your fi ngers.
Optional table top stand
Table
NOTE: Install the stand so the long end of the feet face
forward. Use the ST-5220.
4. Ventilation Requirements
When mounting in an enclosed space or recessed area,
leave adequate room between the monitor and the enclosure
to allow heat to disperse, as shown below.
Allow adequate ventilation or provide air conditioning around
the monitor, so that heat can properly dissipate away from
the unit and mounting apparatus; especially when you use
monitors in multiple screen.
Protective Sheet
English-7
5. Prevent Tipping
When using the display with the optional table top stand
fasten the LCD to a wall using a cord or chain that can
support the weight of the monitor in order to prevent the
monitor from falling. Fasten the cord or chain to the monitor
using the provided clamps and screws.
314 mm
Clamp
Screw (M4)
Before attaching the LCD monitor to the wall, make sure that
the wall can support the weight of the monitor.
Be sure to remove the cord or chain from the wall before
moving the LCD.
Installing Optional Sensor Unit
Fixed by screw: You can secure the sensor unit using the
attached screw.
For UN551S/UN551VS, please use the screw attached to
the monitor. It isn't possible to use a screw of the Optional
Sensor Unit.
For fi xing the sensor unit within the bezel, it is recommended
using screw holes as below mentioned.
Fixed by double-sided tape: You can set the sensor unit at
any side of the monitor.
For setting the sensor unit within the bezel, it is
recommended to set the sensor unit in line with the front
edge of the bezel.
Double-sided
tape
Screw Holes Screw Holes
Cord or chain
Screw Position
