Fitting and Operating Instructions
GB
Rooflight Model 28, 32, 40
Issue Nov. 2013
We reserve the right to change technical
1
specifications without notice. E&OE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 28 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MPK 28

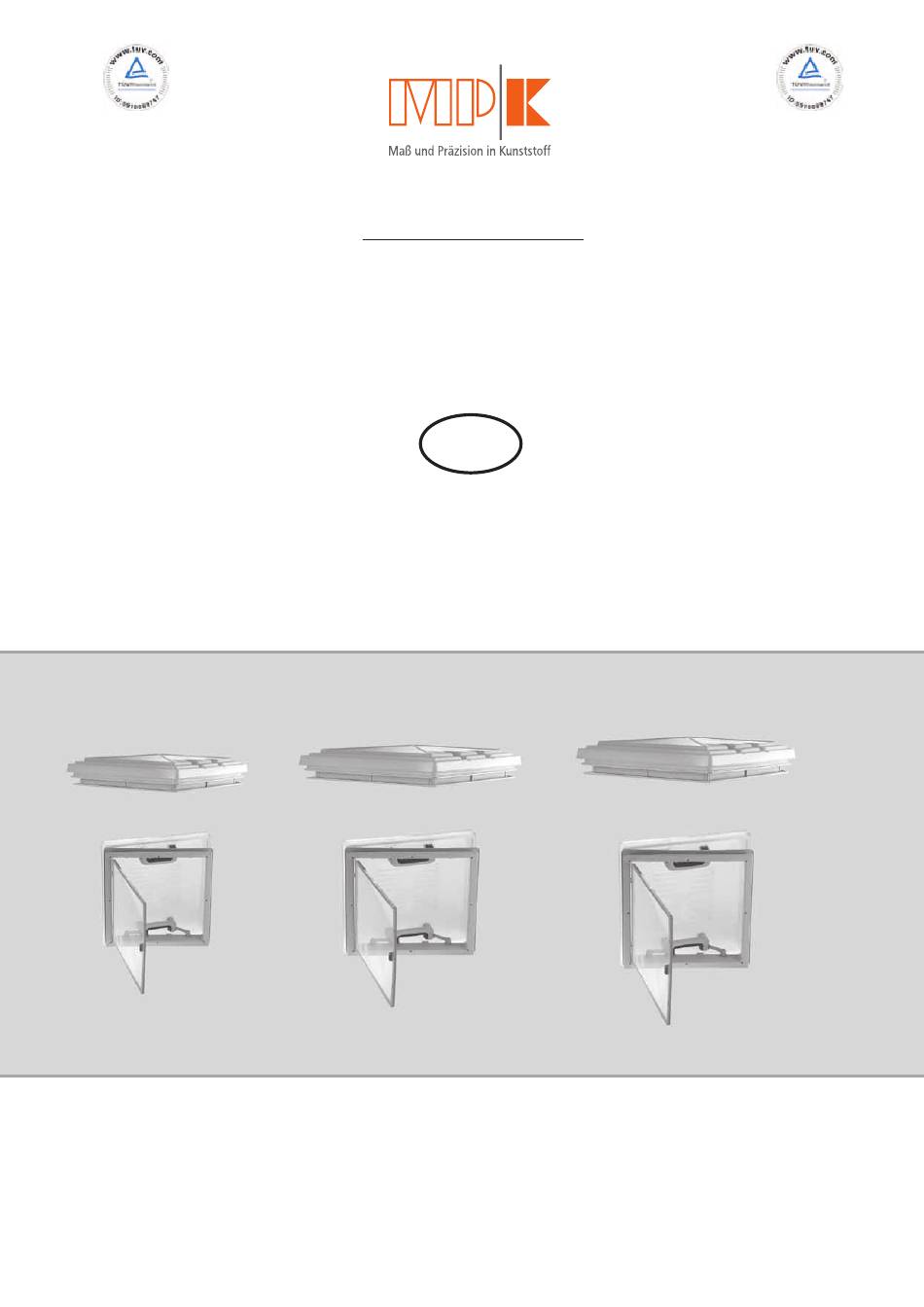

  • Page 1 Cert.-No. 01 100 89747 Cert.-No. 01 104 069609 Metall- und Plastikverarbeitungs- GmbH & Co. KG Kierspe Internet: www.mpk-kierspe.de Fitting and Operating Instructions Rooflight Model 28, 32, 40 Issue Nov. 2013 We reserve the right to change technical specifications without notice. E&OE...
  • Page 2 Illustration wrong wrong wrong wrong wrong We only recommend installation by authorised dealers. Please read these instructions carefully before fitting and operating the rooflights. Important: We cannot be held responsible for incorrect fitting, handling or operation. Any product faults relating to the production and materials used should be notified to us via an authorised dealer immediately.
  • Page 3 Fitting Instructions Warning! Never stand on the dome of the rooflight! (See picture 1) Fitting position Choose a fitting position that will not interfere with other roof mounted components (e.g. roof-racks/antenna's etc.) and avoid internally installed electrical cables and furniture, which could impede the correct operation of the rooflight.
  • Page 4 Operation Instruction Instruction for use The rooflight can be opened fully, or in four different directions, so that the dome can be angled against driving weather conditions. To open squeeze the locks (optional) into the handles and push open. To open and close pull the flynet slightly into inner direction until it slides beside the flynet click.
  • Page 5 - Removable flynet, optional roller blind - ECE R43 Whole Vehicle Type Approved (Please ask for further details.) Technical Data: Dome/ outer frame material: Polypropylene Model 28 Aperture: 280 x 280 mm Size dome: 330 x 330 mm Free-air-flow: 60 cm²...
  • Page 6 Technical Information Model Options: Model 28 Not available anymore, has been replaced by rooflight model 29. Model 32 white grey beige roller roof thickness air-flow weight 320VB 24-46 mm 120 cm² 1350 g. 320VNB 24-46 mm 120 cm² 1400 g.
  • Page 7 Spare parts Colour frame: Spare parts beige white grey Replacement dome model 28 290.52VB 290.52VAW 290.52VG Replacement dome model 32 320.52VB ---------- ---------- Replacement dome model 40 150 cm³ air-flow 420.52VB 420.52VAW 420.52VG Outer frame model 28 280.22B 280.22AW 280.22G Outer frame model 32 320.22B...
