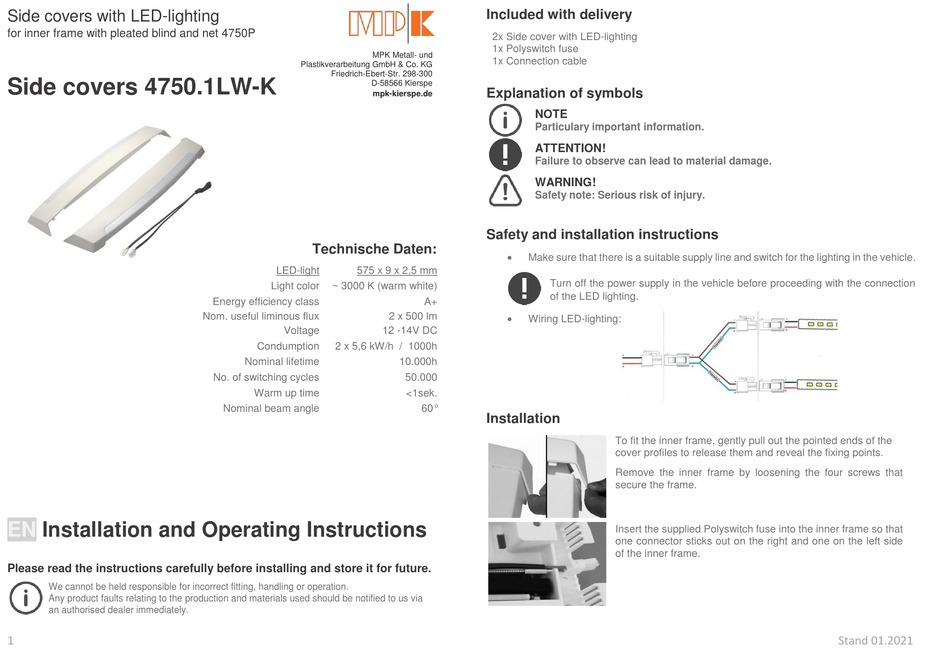

MPK 4750.1LW-K Installation And Operating Instructions

Side covers with LED-lighting
for inner frame with pleated blind and net 4750P
Side covers 4750.1LW-K
EN Installation and Operating Instructions
Please read the instructions carefully before installing and store it for future.
We cannot be held responsible for incorrect fitting, handling or operation.
Any product faults relating to the production and materials used should be notified to us via
an authorised dealer immediately.
1
MPK Metall- und
Plastikverarbeitung GmbH & Co. KG
Friedrich-Ebert-Str. 298-300
D-58566 Kierspe
mpk-kierspe.de
Technische Daten:
LED-light 575 x 9 x 2,5 mm
Light color ~ 3000 K (warm white)
Energy efficiency class
Nom. useful liminous flux
Voltage
Condumption 2 x 5,6 kW/h / 1000h
Nominal lifetime
No. of switching cycles
Warm up time
Nominal beam angle
Included with delivery
2x Side cover with LED-lighting
1x Polyswitch fuse
1x Connection cable

Explanation of symbols

NOTE
Particulary important information.
ATTENTION!
Failure to observe can lead to material damage.
WARNING!
Safety note: Serious risk of injury.

Safety and installation instructions


Make sure that there is a suitable supply line and switch for the lighting in the vehicle.
Turn off the power supply in the vehicle before proceeding with the connection
of the LED lighting.
A+
2 x 500 lm 
Wiring LED-lighting:
12 -14V DC
10.000h
50.000
<1sek.
60°

Installation

To fit the inner frame, gently pull out the pointed ends of the
cover profiles to release them and reveal the fixing points.
Remove the inner frame by loosening the four screws that
secure the frame.
Insert the supplied Polyswitch fuse into the inner frame so that
one connector sticks out on the right and one on the left side
of the inner frame.
Stand 01.2021
