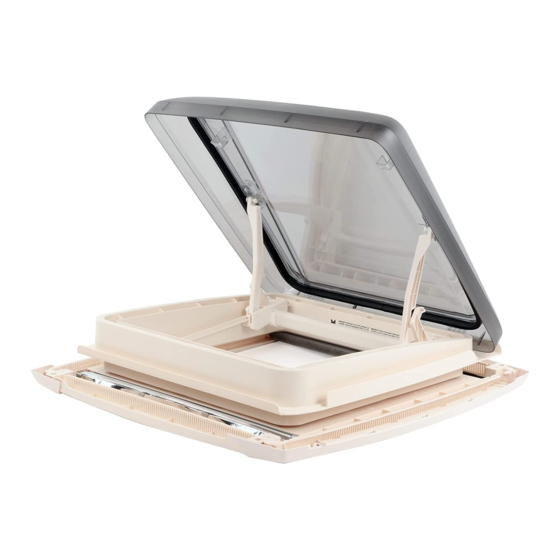

MPK VisionStar M pro LED Installation And Operating Instructions

Rooflight with pleated blind and net
for installation in caravans and mobile homes
VisionStar M pro
EN Installation and Operating Instructions
Please read the instructions carefully before installing the rooflight and store
it for future.
We cannot be held responsible for incorrect fitting, handling or operation.
Any product faults relating to the production and materials used should be notified to us via
an authorised dealer immediately.
1
MPK Metall- und
Plastikverarbeitung GmbH & Co. KG
Friedrich-Ebert-Str. 298-300
LED
D-58566 Kierspe
mpk-kierspe.de
Technical data:
Aperture 400 x 400 mm
Roof thickness 25 bis 60 mm
Corner radius
Site dome 490 x 470 mm
Height over roof
Ventilation 0 bis 150 cm²
Weight
Size inner frame 585 x 570 x 35 mm
Outer frame material Polypropylene
Dome material Polycarbonate
Speed limit
Authorization ECE R43 -019651
LED-light 394 x 9 x 2,5 mm
Light color ~ 3000 K (warmwite)
Energy efficiency class
Nom. useful liminous flux
Voltage
Condumption 2 x 4,2 kW/h / 1000h
Nominal lifetime
No. of switching cycles
Warm up time
Nominal beam angle
Included with delivery
1x Rooflight with outer frame
1x Inner frame with LED, polyswitch fuse, connection cable
1x self-adhesive rubber seal (for permanent ventilation)
1x Fixing parts (8x fixing brackets and 4x large plastic screw)
Additionally required for installation (not included in delivery)
1x Elastic sealant adhesive, e.g. Dekalin Dekaseal 8936 or SikaLastomer®-710
8x Fixing screws for the upper frame
Pan 3,5 mm / head according to DIN ISO 7049 (DIN 7981) / The length of the screw should
be determined by the roof thickness, plus approximately 10 mm for the screw to enter the
upper frame.
With timber support under the roof lining:
4x Fixing screws for the inner frame:
Pan 3,5 mm / head according to DIN ISO 7049 (DIN 7981) / length max. 10 mm
23 mm
Explanation of symbols
80 mm
NOTE
Particulary important information.
3,8 kg
ATTENTION!
Failure to observe can lead to material damage.
WARNING!
160 km/h
Safety note: Serious risk of injury.
Safety and installation instructions

Check the roof thickness of your vehicle before mounting.
A+

The rooflight should only be fitted to a flat roof surface, both internally and
2 x 390 lm
externally.
12 -14V DC

Choose a fitting position that will not interfere with other roof mounted components
(e.g. roof-racks/antenna's etc.) and avoid internally installed electrical cables and
10.000h
furniture, which could impede the correct operation of the rooflight.
50.000
<1sek.
60°

Make sure that there is a suitable supply line and switch for the lighting in the vehicle.

We recommend installation with the hinge side in the direction of travel.

Never stand on the dome of the rooflight!
Inner frame
Issue 01.2021
