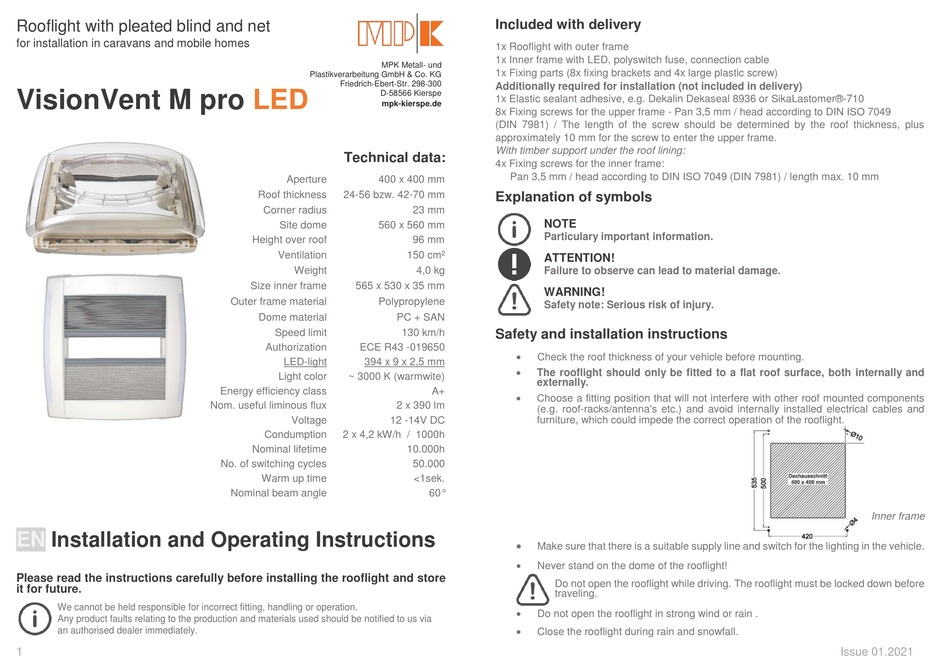

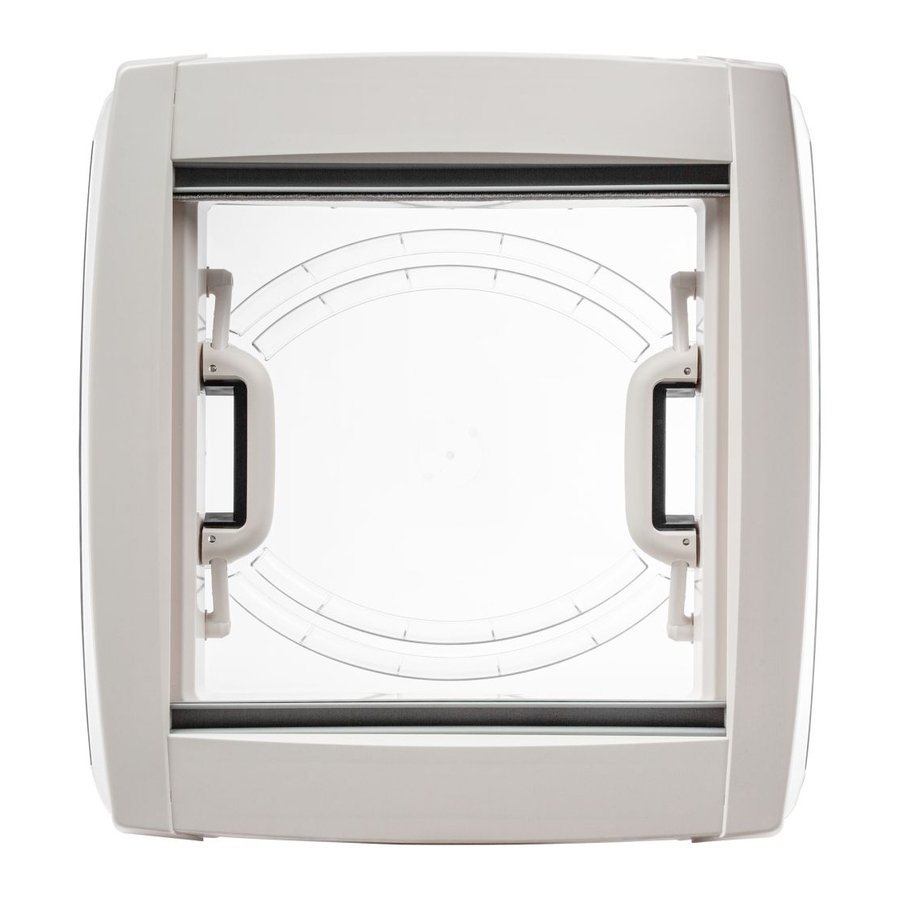

MPK VisionVent M pro Installation And Operating Instructions

Rooflight with pleated blind and net
for installation in caravans and mobile homes
VisionVent M pro
EN Installation and Operating Instructions
Please read the instructions carefully before installing the rooflight and store
it for future.
We cannot be held responsible for incorrect fitting, handling or operation.
Any product faults relating to the production and materials used should be notified to us via
an authorised dealer immediately.
1
MPK Metall- und
Plastikverarbeitung GmbH & Co. KG
Friedrich-Ebert-Str. 298-300
LED
D-58566 Kierspe
mpk-kierspe.de
Technical data:
Aperture 400 x 400 mm
Roof thickness 24-56 bzw. 42-70 mm
Corner radius
Site dome 560 x 560 mm
Height over roof
Ventilation
Weight
Size inner frame 565 x 530 x 35 mm
Outer frame material Polypropylene
Dome material
Speed limit
Authorization ECE R43 -019650
LED-light 394 x 9 x 2,5 mm
Light color ~ 3000 K (warmwite)
Energy efficiency class
Nom. useful liminous flux
Voltage
Condumption 2 x 4,2 kW/h / 1000h
Nominal lifetime
No. of switching cycles
Warm up time
Nominal beam angle
Included with delivery
1x Rooflight with outer frame
1x Inner frame with LED, polyswitch fuse, connection cable
1x Fixing parts (8x fixing brackets and 4x large plastic screw)
Additionally required for installation (not included in delivery)
1x Elastic sealant adhesive, e.g. Dekalin Dekaseal 8936 or SikaLastomer®-710
8x Fixing screws for the upper frame - Pan 3,5 mm / head according to DIN ISO 7049
(DIN 7981) / The length of the screw should be determined by the roof thickness, plus
approximately 10 mm for the screw to enter the upper frame.
With timber support under the roof lining:
4x Fixing screws for the inner frame:
Pan 3,5 mm / head according to DIN ISO 7049 (DIN 7981) / length max. 10 mm
Explanation of symbols
23 mm
NOTE
Particulary important information.
96 mm
150 cm²
ATTENTION!
4,0 kg
Failure to observe can lead to material damage.
WARNING!
Safety note: Serious risk of injury.
PC + SAN
130 km/h Safety and installation instructions

Check the roof thickness of your vehicle before mounting.

The rooflight should only be fitted to a flat roof surface, both internally and
externally.
A+

Choose a fitting position that will not interfere with other roof mounted components
2 x 390 lm
(e.g. roof-racks/antenna's etc.) and avoid internally installed electrical cables and
12 -14V DC furniture, which could impede the correct operation of the rooflight.
10.000h
50.000
<1sek.
60°

Make sure that there is a suitable supply line and switch for the lighting in the vehicle.

Never stand on the dome of the rooflight!
Do not open the rooflight while driving. The rooflight must be locked down before
traveling.

Do not open the rooflight in strong wind or rain .

Close the rooflight during rain and snowfall.
Inner frame
Issue 01.2021
