MPK 32 Installation And Operating Instructions

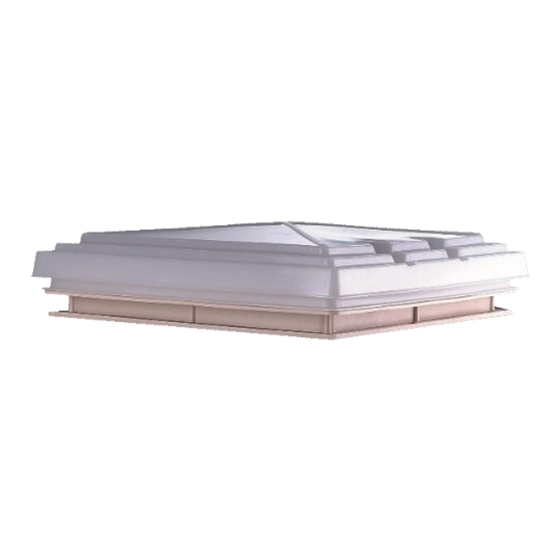

Rooflight with flynet frame
for installation in caravans and mobile homes
Model 32
EN Installation and Operating Instructions
Please read the instructions carefully before installing the rooflight and store
it for future.
We cannot be held responsible for incorrect fitting, handling or operation.
Any product faults relating to the production and materials used should be notified to us via
an authorised dealer immediately.
1
Technical data:
Aperture 320 x 360 mm
Roof thickness 24-46 mm
Site dome 380 x 420 mm
Height over roof
Ventilation 120 cm²
Weight
Size inner frame
Outer frame material Polypropylene
Dome material Polypropylene
Speed limit 130 km/h
Authorization ECE R43 -019649
Included with delivery
1x Rooflight with outer frame
1x Inner frame (flynet frame optional)
Additionally required for installation (not included in delivery)
1x Elastic sealant adhesive, e.g. Dekalin Dekaseal 8936 or SikaLastomer®-710
8x Fixing screws for the upper frame
Pan 3,5 mm / head according to DIN ISO 7049 / Length acc. to table
Roof thickness
Screw length
Explanation of symbols
NOTE
Particulary important information.
ATTENTION!
Failure to observe can lead to material damage.
WARNING!
83 mm
Safety note: Serious risk of injury.
1,4 kg
Safety and installation instructions
6 mm

Check the roof thickness of your vehicle before mounting.

The rooflight should only be fitted to a flat roof surface, both internally and
externally.

Choose a fitting position that will not interfere with other roof mounted components
(e.g. roof-racks/antenna's etc.) and avoid internally installed electrical cables and
furniture, which could impede the correct operation of the rooflight.

Always fit the rooflight with the handles facing in the direction of travel (i.e. handles
at the front and rear)

Never stand on the dome of the rooflight!
Do not open the rooflight while driving. The rooflight must be locked down before
traveling.

Do not open the rooflight in strong wind or rain.

Close the rooflight during rain and snowfall.
mm 24-34 31-41 37-46
mm 25 32 38
Issue 03.2024
