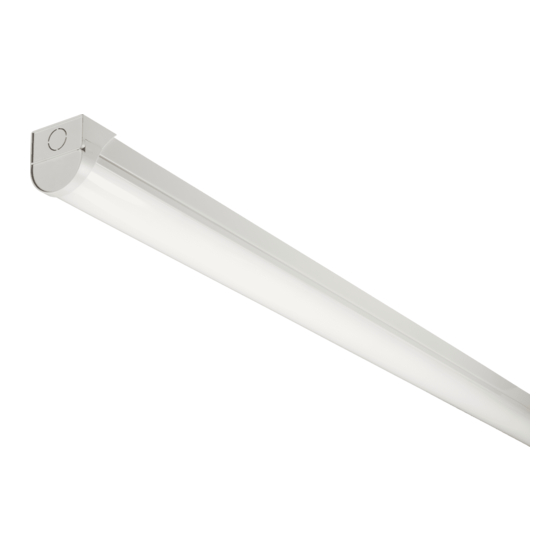

- Page 1 INSTALLATION & MAINTENANCE MANUAL BATSCWST4 / BATSCWST5 / BATSCWST6...
-
Page 2: General Instructions
These instructions should be used to aid installation of the following products: BATSCWST4 / BATSCWST5 / BATSCWST6 • This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671) and current Building Regulations. If in any doubt, consult a qualified electrician •... - Page 3 Provide power to the required point of installation • • Squeeze the sides and hinge the diffuser away from the fitting (see Fig. 1) Fig. 1 k the location of the fixing holes and drill the holes ensuring not to infringe with any ga •...
-
Page 4: Self-Test Function
Fig. 3 Fig. 3 • Switch on and check for correct operation ensuring the green indicator LED is illuminated • See below for operation of the self-test function Select the required sensor settings (see below) • • We recommend, on commissioning the installation, a minimum charge period of 24 hours before carrying Switch on and check for correct operation ensuring the green indicator LED is illuminated •... - Page 5 Following self-tests, the unit will revert to charging mode, and any faults will be indicated by the bi-colour LED indicator as follows: LED indicator Status Slow flash green (3 sec on, 1 sec off) Charging Solid green Fully charged Fast flash green (0.1 sec on, 0.1 sec off) Function test underway Slow flash green (1 sec on, 1 sec off) Duration test underway...
-
Page 6: Warranty
If this product should fail within its warranty period, it should be returned to the place of purchase for a free of charge replacement. ML Accessories does not accept responsibility for any installation costs associated with the replacement product. Your statutory rights are not... -
Page 7: Test Record
TEST RECORD Recommended routine test procedure in accordance with BS5266: • Daily check – check status of bi-colour LED indicator • Monthly functional test – the luminaire will perform this function without any action from the user. Alternatively, simulate a mains supply failure for approx. 30 seconds by operation of key switch, switching off circuit breaker or using test button. - Page 8 colour LED indicator • 3-hour duration test – the luminaire will perform this function without any action from the user. Alternatively simulate a mains supply failure for 3-hour continuous test by operation of key switch, or switching off circu breaker. Ensure normal supply is restored after test and check status of bi-colour LED indicator •...
- Page 9 Supplied By: (UK) Manufacturer ML Accessories Ltd, Unit E Chiltern Park, Boscombe Road, Dunstable LU5 4LT, www.mlaccessories.co.uk (EU) Authorised Representative nnuks Holding GmbH, Niederkasseler Lohweg 18, 40547 Düsseldorf, Germany, Email: eprel@nnuks.com ~50°C DCAPR22_V1...
