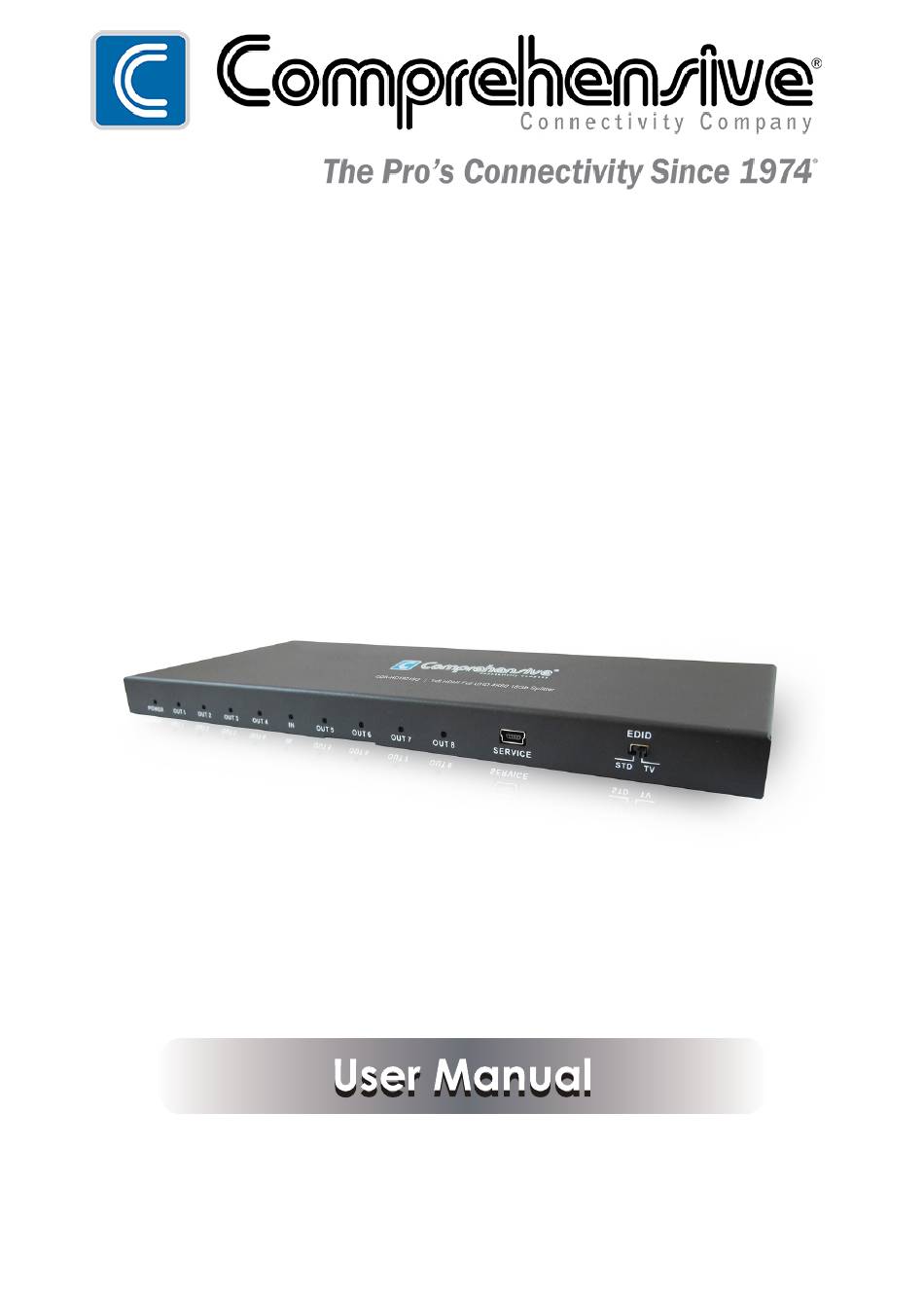

- Page 1 CDA-HD18018G 1x8 HDMI Full UHD 4K60 18Gb Splitter (YUV:444) VER 1.0...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction 18Gbps 1x8 HDMI Splitter is an advanced solution for splitting single HDMI signal to 8 HDMI outputs synchronously. It supports up to 18Gbps bandwidth, HDMI 2.0b/HDCP 2.2 content up to 4K@60Hz 4:4:4. It can be set the COPY/ AUTO EDID configuration. -
Page 4: Specifications
4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 Video Bandwidth 594MHz/18Gbps Video Resolution 480i ~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz PCM 2CH, LPCM 7.1/5.1CH, Dolby Digital, DTS 5.1, HDMI Audio Formats Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos and DTS:X Human body model—±8kV (Air-gap discharge) &... -
Page 5: Operation Controls And Functions
5. Operation Controls and Functions COPY AUTO Number Name Function description This blue LED will illuminate when the device POWER LED connects power supply. This blue LED will illuminate when HDMI IN port IN LED connects an active source device. These blue LEDs will illuminate when HDMI OUT OUT LED ports connects an active display device. -
Page 6: Application Example
6. Application Example Power Supply DVD or Blu-ray Player UHDTV UHDTV 7. FAQ Q: Where is this product usually used? A: It can be used in many place such as Entertainment Room / Home Theater / Lecture Room / Hall Presentation / Show Room / Demo Room / Public Commercial Display etc.
