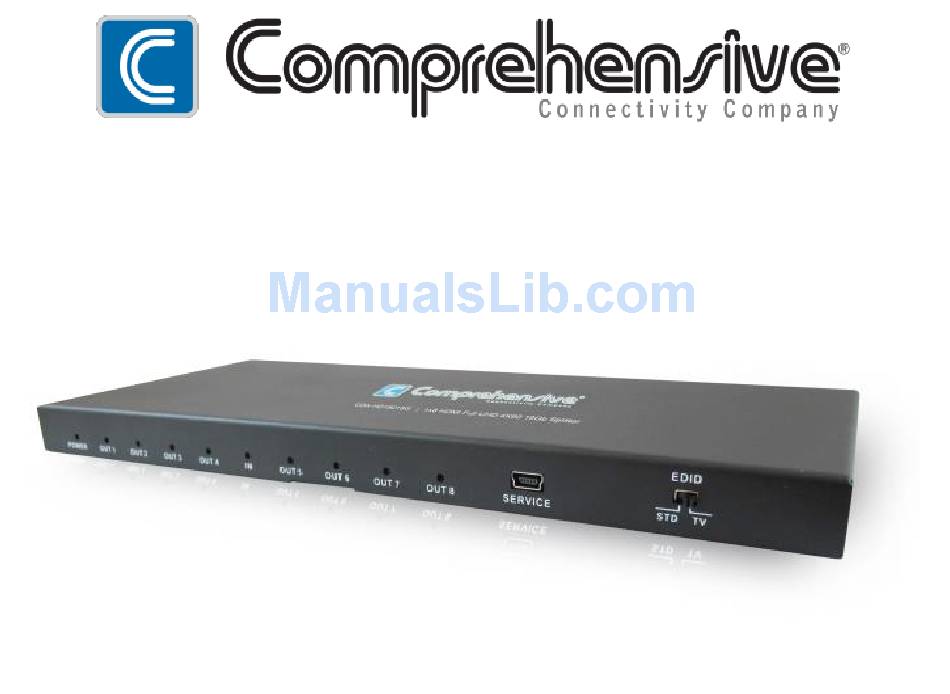

- Page 1 CDA-HD18018G 1x8 HDMI Full UHD 4K60 18Gb Splitter (YUV:444) User manual V1.0ep...
- Page 2 Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. I. Introduction This 1 by 8 HDMI UHD Splitter with HDCP 2.2 is an advanced solution for splitting a single HDMI input to eight HDMI outputs.
- Page 3 to 4k2k@60Hz with 12bit YCBCR 4:4:4; Support 3D frame sequential video format up to 1080p@60; Support high resolution VESA mode video format up to QSXGA@60Hz; Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio; Supports smart EDID control; III. Package UHD 1x8 HDMI Splitter ------------------------------------------------------------------ 1PC 12V2.5A DC Power adapter ------------------------------------------------------------- 1PC Operation Manual ------------------------------------------------------------------------- 1PC...
- Page 4 Output Resolution 480i ~1080p50/60, 4Kx2K@24/30, 4k2k@60Hz ESD Protection Human Body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Power Supply 12V/2.5A DC (US/EU standards, CE/FCC/UL certified) Dimensions 105 mm (W) × 245 mm (D) × 16 mm (H) Weight 630g Chassis Material Metal...
- Page 5 V. Operation controls and Functions Front Panel & Rear Panel POWER LED: Blue LED will illuminate when the device is connected with power supply. OUT LED: Blue LEDs will light up to indicate which HDMI outputs are connected to an active TV/display/monitor.
- Page 6 EDID STD: When in “STD” mode, the unit will use its own built-in EDID settings. In this mode, the video output will be set to 1080p@60Hz and the audio output at LPCM 2CH Stereo. Use this mode if there are display problems in TV Mode. EDID TV: When in “TV”...
- Page 7 VI. Application Example 80 Little Falls Road, Fairfield, NJ 07004 l Phone: 800.526.0242 l Fax: 201.814.0510 l www.ComprehensiveCo.com...
