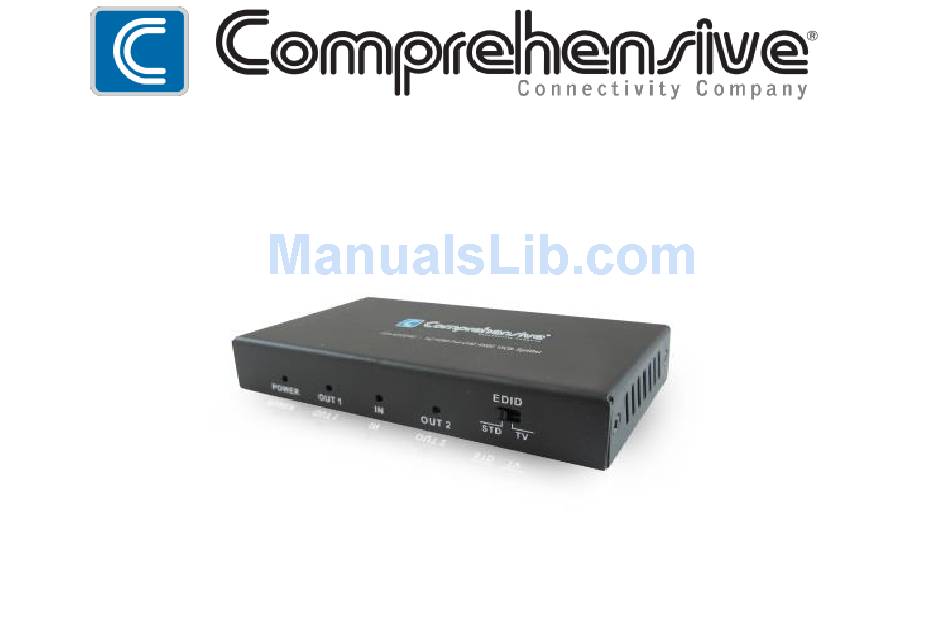

- Page 1 CDA-HD12018G 1x2 HDMI Full UHD 4K60 18Gb Splitter (YUV:444) User manual V1.0C...
- Page 2 Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. I. Introduction This 1 x 2 HDMI UHD Splitter with HDCP 2.2 is an advanced solution for splitting a single HDMI input to two HDMI outputs.
- Page 3 3.Supports 3D frame sequential video format up to 1080p@60 4.Supports high resolution VESA mode video format up to QSXGA@60Hz 5.Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio 6.Supports smart EDID control III. Package Contents UHD 1x2 HDMI Splitter ------------------------------------------------------------------ 1pc 5V1A DC Power adapter ----------------------------------------------------------------- 1pc Operation Manual ------------------------------------------------------------------------- 1pc IV.
- Page 4 5.ESD ProtectionHuman Body model:±8 kV (air-gap discharge) ±4 kV (contact discharge) Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified) Dimensions 56 mm (W) × 100 mm (D) × 16 mm (H) Weight 165 g Chassis Material Metal Operating Temperature 0 °C~40 °C/ 32 °F~104 °F Storage Temperature −20 °C ~ 60 °C/−4 °F ~140 °F Relative Humidity20~90 % RH (non-condensing)
- Page 5 V. Operation controls and Functions Front Panel & Rear Panel POWER: A blue LED will illuminate when the device is connected to the power supply OUT 1, OUT 2: The blue LEDs will light up to indicate which HDMI outputs are connected...
- Page 6 to an active TV/display/monitor. IN: A blue LED will illuminate when the source is connected to the device. EDID STD: When in “STD” mode, the unit will use its own built-in EDID settings. In this mode, the video output will be set to 1080p@60Hz and the audio output at LPCM 2CH Stereo.
- Page 7 DC 5V: Plug the 5V DC power supply into the unit and connect the adaptor to an AC outlet. VI. Application Example Comprehensive puts everything within reach. Check out the collection of computers & hardware we offer.
