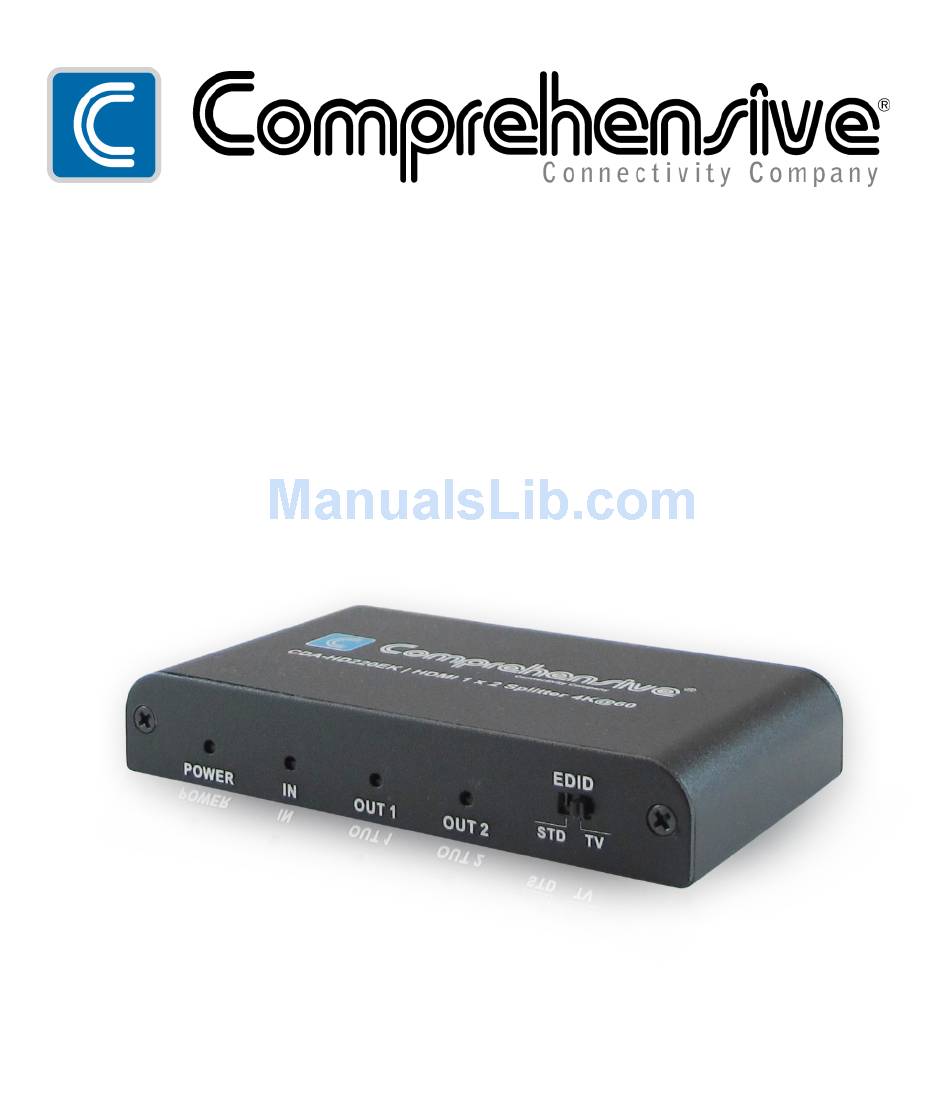

- Page 1 CDA-HD220EK HDMI 1 x 2 Splitter with HDCP 2.2 - 4K@60 (YUV420) User manual...
- Page 2 This 1 by 2 HDMI UHD Splitter with HDCP 2.2 is an advanced Introduction solution for splitting a single HDMI input to two HDMI outputs. It provides high performance audio and video output through HDMI cables up to 4K2K@60Hz (YUV420) resolution and is capable of receiving and transmitting up to 9Gbps of bandwidth with no data loss.
- Page 3 User manual----------------------------------------------1pcs Compliant with HDMI2.0, HDCP2.2 and DVI 1.0; Feature Support video format up to 4k2k@30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2,and up to 4k2k@60Hz with 12bit YCBCR 4:2:0; Support 3D frame sequential video format up to 1080p@60Hz; Support high resolution VESA mode video format ...
- Page 4 Support smart EDID control; Specification 300MHz/10.2 Gbps Video Bandwidth Input Ports 1 x HDMI (Female type) Output Ports 2 x HDMI (Female type) 480i ~1080p50/60, 4Kx2K@24/30, Output Resolution 4k2k@60Hz with 12bit YCBCR 4:2:0, VGA~UXGA...
- Page 5 Human Body model: ESD Protection ±8 kV (air-gap discharge) ±4 kV (contact discharge) Power Supply 5 V/1A DC Dimensions 56 mm (W) × 96 mm (D) × 17 mm (H) Weight 100 g Chassis Material Metal Silkscreen Color Black Operating Temperature 0 °C~40 °C/ 32 °F~104 °F Storage Temperature −20 °C ~ 60 °C/−4 °F ~140 °F...
-
Page 6: Relative Humidity
20~90 % RH (non-condensing) Relative Humidity 1.5W Power Consumption Connect the signal sources such as Blu-Ray Player, Play Station Connect and Operate 3, satellite receivers and computers equipped with HDMI output interfaces with a short high-speed HDMI cable to the HDMI Splitter input. -
Page 7: Power Led
The Splitter is powered by an external power supply which is included. Connect power first to the source, then to the Splitter and then to each HD TV or projector. This blue LED illuminated when the 1.POWER LED: device is connected with power supply. This blue LED illuminated when the Source 2.IN LED: connect to the device. - Page 8 which HDMI outputs are connected to an active TV/display/monitor. When in 'STD' mode, the unit will use its own 4.EDID STD: built-in EDID settings. In this mode, the video output will be set to 1080p@60Hz and the audio output at LPCM 2CH Stereo. Use this mode if there are display problems in TV Mode.
- Page 9 the best resolution that all displays can support. 1.HDMI Connect each of the HDMI outputs to an HDMI display OUT 1~2: for simultaneous HDMI distribution, or cascade the output to another transmitter to extend the operating distance. Connect the input port to the HDMI or DVI output of 2.HDMI IN: your source device such as a DVD player or set-top box with an HDMI cable.
-
Page 10: Connection Diagram
Plug the 5V DC power supply into the unit and 3.DC 5V: connected the adaptor to an AC outlet. Connection Diagram...
