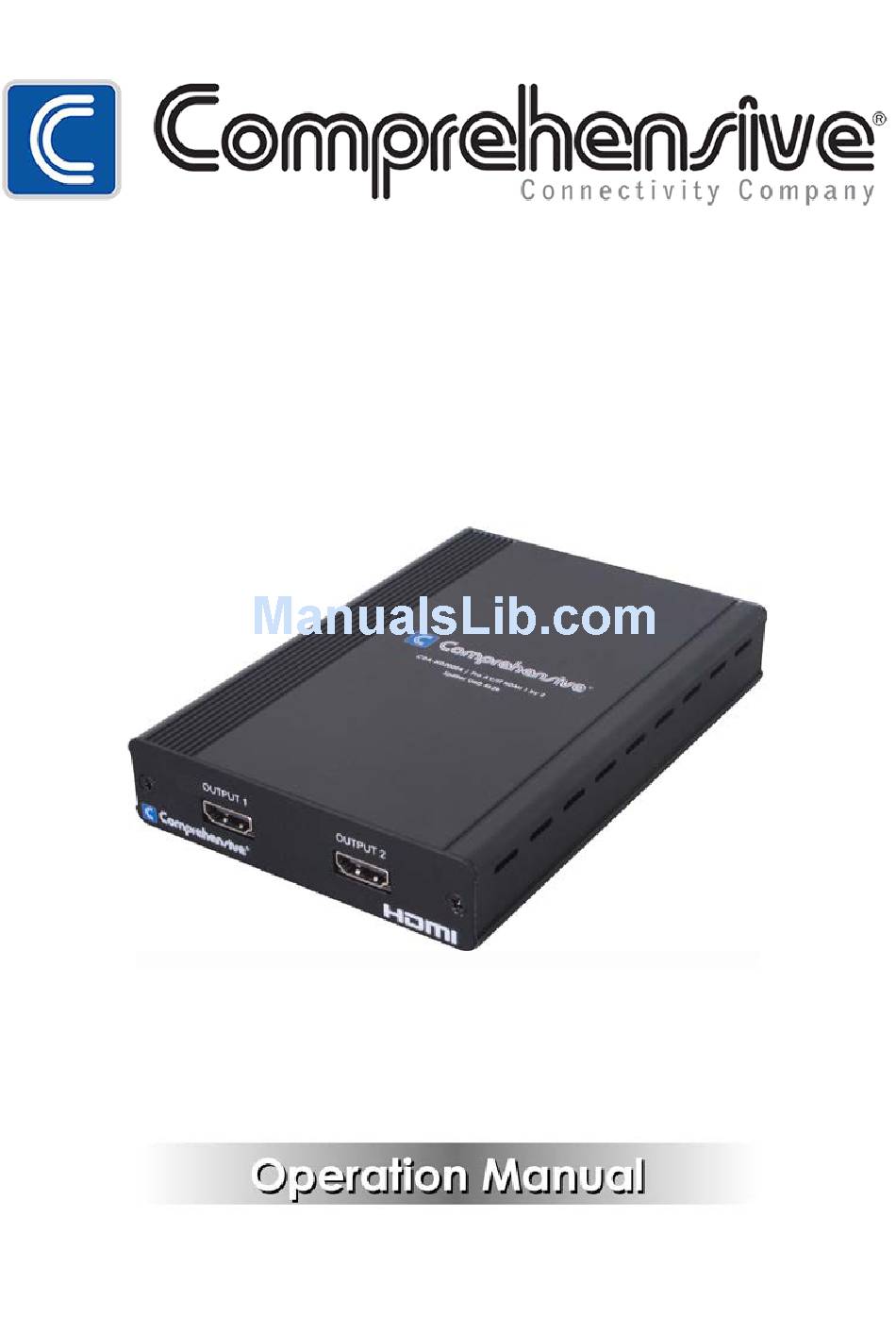

  • Page 1 CDA-HD200EK 1 by 2 HDMI Splitter...
  • Page 2 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 3: Table Of Contents

    CONTENTS 1. Introduction..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements......1 5. Features ..........1 6. Operation Controls and Functions..2 6.1 Front Panel ........2 6.2 Rear Panel......... 2 7. Connection Diagram ......3 8.

  • Page 4: Introduction

    1. INTRODUCTION This HDMI splitter provides one HDMI in to two HDMI outputs and supports 4K×2K, 3D, 12-bit Deep Color as well as High Definition Lossless Audio. With its 3Gbps bandwidth and the additional features of the latest HDMI standards you can be sure of great HDMI distribution.

  • Page 5: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel HDMI OUTPUT: Connect each of the output ports to the HDMI display for simultaneous HDMI distribution. 6.2 Rear Panel HDMI INPUT: Connect the input ports to the HDMI source. SERVICE: Manufacturer use only. POWER LED: The power LED will illuminate when the unit is powered.

  • Page 6: Connection Diagram

    7. CONNECTION DIAGRAM...

  • Page 7: Specifications

    8. SPECIFICATIONS Video Bandwidth 9 Gbps Input Port 1×HDMI (Female connector) 1×USB (Manufacturer use only) Output Ports 2 ×HDMI (Female connector) Output Resolution 480i~1080p@50/60, 1080p@24/50/60, VGA~UXGA, 4K×2K@30 ESD Protection Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Dimensions 4.05”...

  • Page 8: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM 4K×2K 3840×2160 HDMI High-Definition Multimedia Interface HDTV High-Definition Television 80 Little Falls Road Fairfield, New Jersey 07004 Toll Free: 1-800-526-0242 sales@comprehensiveco.com www.comprehensiveco.com...
