HANDLE INSTALLATION

CAUTION
Wear gloves and use extreme CAUTION
when installing these handles. The rounded
end of the handles may be sharp.
IMPORTANT
To ensure proper installation of handles, please
review these instructions and illustrations thor-
oughly prior to installing the handles.
Additionally, before installing the door han-
dles, make sure the door swing is correct.
Your model will have either a right hand or
left hand door swing. Follow instructions in
the Use & Care Guide to reverse the doors,
if necessary.

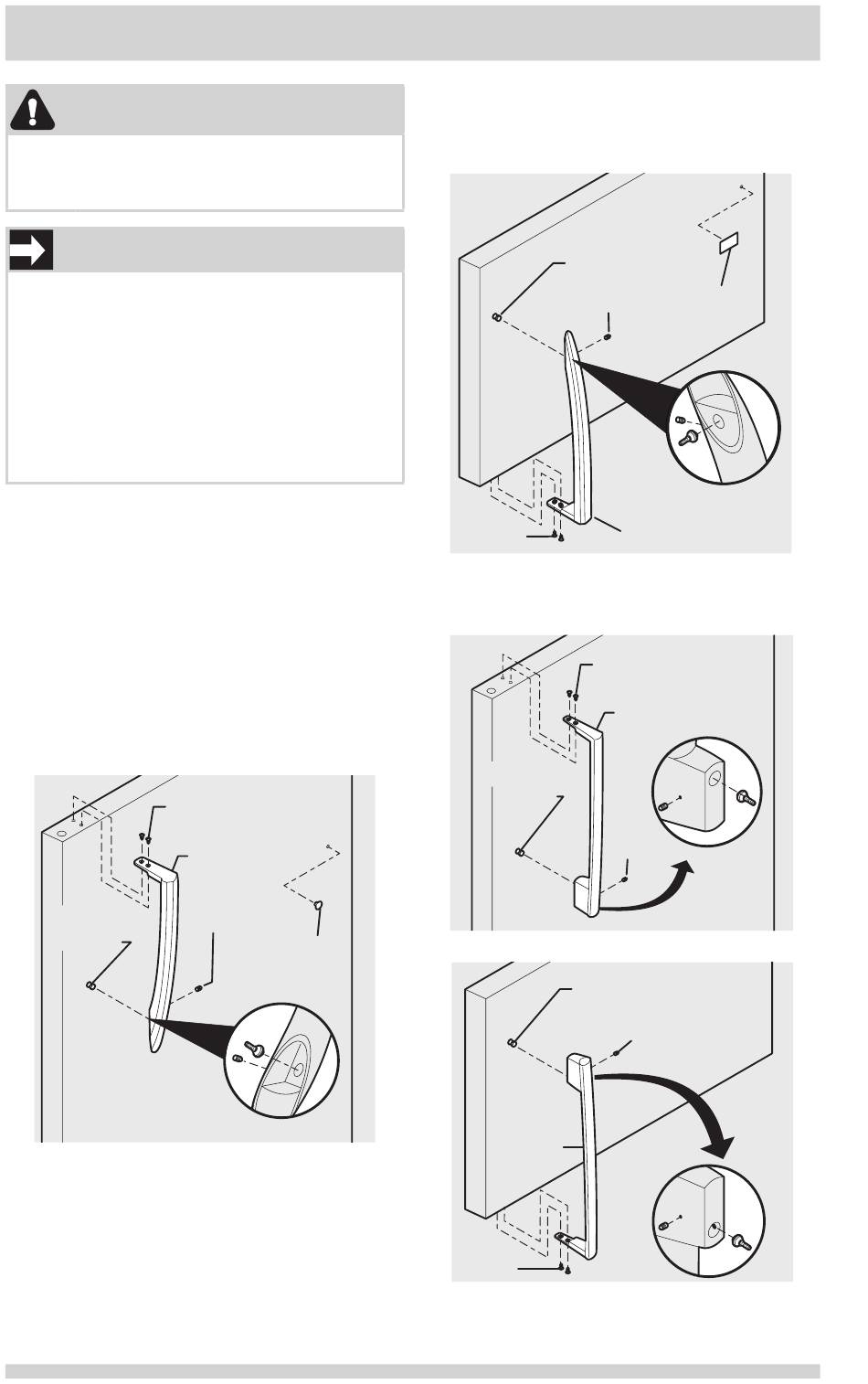

To attach metal refrigerator handle:
1. Place rounded part of handle onto
shoulder screw on face of door and align
the two holes in top of handle with the
two holes in top of door. Do not tighten
the set screw yet.
2. Install the two screws into the top of the
handle.
3. Tighten the set screw on the rounded part
of the handle until the handle is flush with
the door, then tighten another ½ turn.
Shoulder
Screw
To attach metal freezer handle:
1. Place rounded part of handle onto
shoulder screw on face of door and align
the two holes in bottom of handle with
the two holes in bottom of door. Do not
tighten the set screw yet.
2. Install the two screws into the bottom of
the handle.
10
Screw
Handle
Set
Screw
Button
Plug
3. Tighten the set screw on the rounded part
of the handle until the handle is flush with
the door, then tighten another ½ turn.
Shoulder
Screw
Set Screw
Screw
Stainless Steel Models
Shoulder
Screw
Shoulder
Screw
Handle
Screw
Nameplate
Handle
Screw
Handle
Set
Screw
Set
Screw
