Setup - Trigger Action Setup

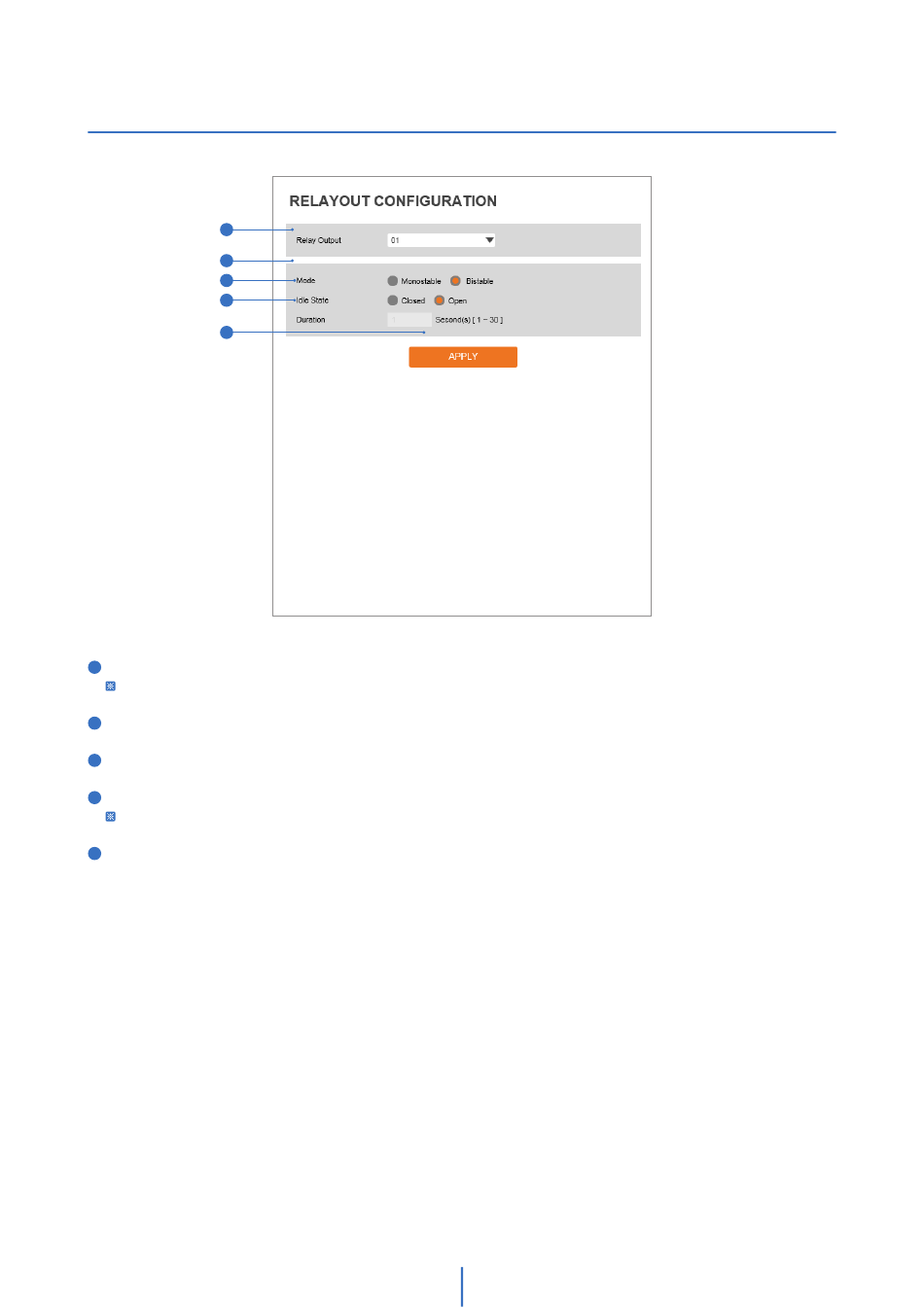

Relayout Configuration
1
2
3
4
5
Relay Output - Select the Relay output.
1
The number of relay outputs available depends on the camera model.
Mode - Select the monostable/bistable for relay mode.
2
Idle State - Select whether the contact is normally opened or is closed.
3
Duration - Relay out is operated during the setting time.
4
In monostable mode, this function must be set up.
Click 'Apply' to save all changes.
5
