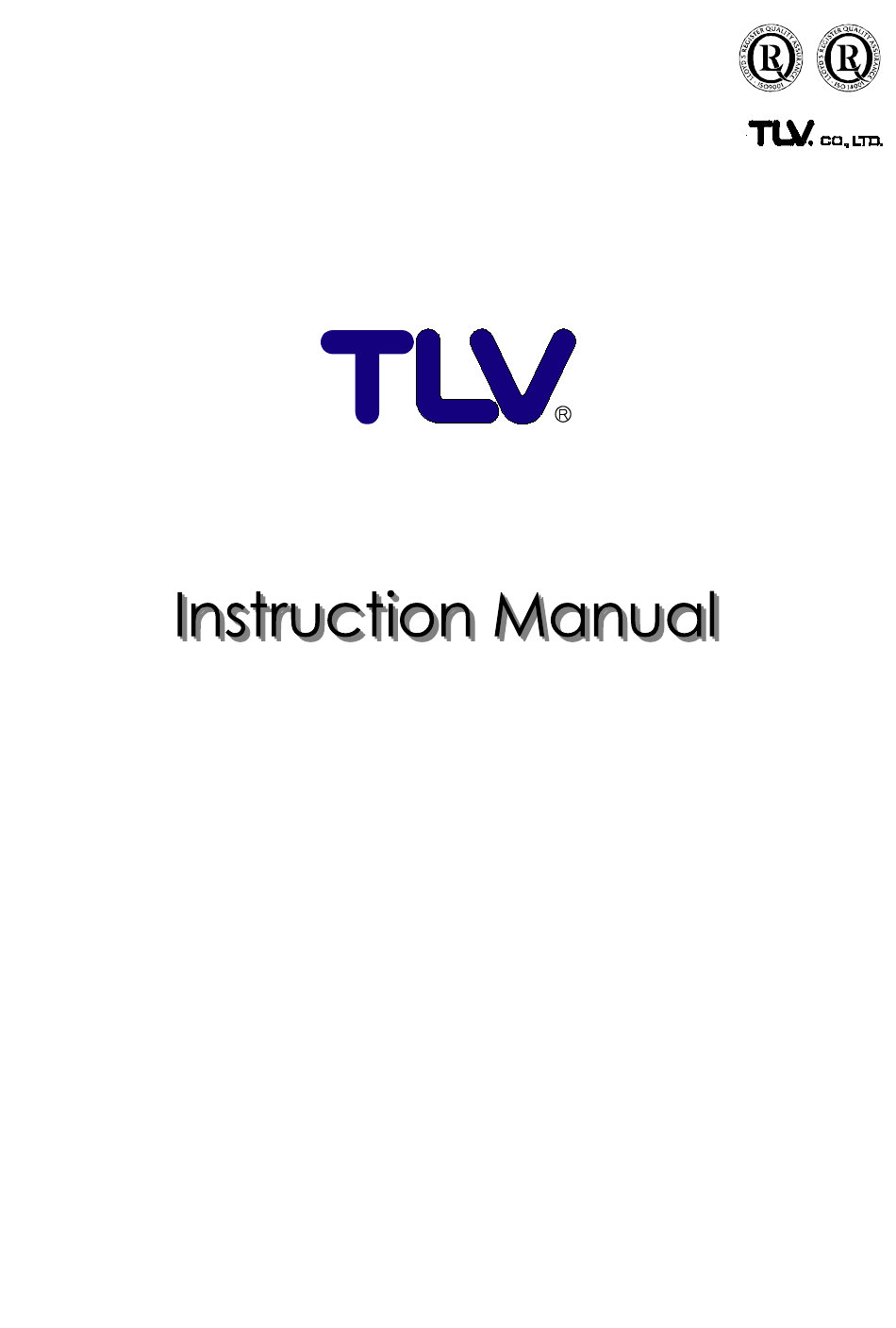

TLV JH7RL-B Instruction Manual

TLV JH7RL-B Instruction Manual

Free float steam trap
Hide thumbs Also See for JH7RL-B:

Advertisement

Quick Links

ISO 9001/ ISO 14001
172-65455MA-03 (JH7RL-B/JH7RM-B) 13 July 2015
Manufacturer
Kakogawa, Japan
is approved by LRQA LTD. to ISO 9001/14001
Free Float Steam Trap
JH7RL-B
JH7RM-B
Copyright © 2015 by TLV CO., LTD.
All rights reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JH7RL-B and is the answer not in the manual?

Questions and answers

Summary of Contents for TLV JH7RL-B

  • Page 1 ISO 9001/ ISO 14001 172-65455MA-03 (JH7RL-B/JH7RM-B) 13 July 2015 Manufacturer Kakogawa, Japan is approved by LRQA LTD. to ISO 9001/14001 Free Float Steam Trap JH7RL-B JH7RM-B Copyright © 2015 by TLV CO., LTD. All rights reserved...
  • Page 2: Table Of Contents

    This instruction manual is intended for use with the model(s) listed on the front cover. It is necessary not only for installation but for subsequent maintenance, disassembly/reassembly and troubleshooting. Please keep it in a safe place for future reference. 172-65455MA-03 (JH7RL-B/JH7RM-B) 13 Jul 2015...
  • Page 3: Safety Considerations

    • The three types of cautionary items above are very important for safety: be sure to observe all of them as they relate to installation, use, maintenance, and repair. Furthermore, TLV accepts no responsibility for any accidents or damage occurring as a result of failure to observe these precautions.
  • Page 4 Use only under conditions in which no water hammer will occur. The impact of water hammer may damage the product, leading to fluid discharge, which may cause burns or other injury. 172-65455MA-03 (JH7RL-B/JH7RM-B) 13 Jul 2015...
  • Page 5: Checking The Piping

    4. Have maintenance valves been installed at the inlet and outlet? If the outlet is subject to back pressure, has a check valve (TLV-CK) been installed? 5. Is the inlet pipe as short as possible, with as few bends as possible, and installed so the liquid will flow naturally down into the trap? 6.
  • Page 6: Operation

    4. Closed Position When the condensate flow rate decreases, the float falls, closing off the orifice (B) opening. A water seal is maintained at all times over the orifice (B) to prevent steam loss. Steam Condensate 172-65455MA-03 (JH7RL-B/JH7RM-B) 13 Jul 2015...
  • Page 7: Specifications

    Air Vent Valve Plug  22 Snap Ring 23 Nameplate   24 Drain Plug Gasket * Replacement parts are available only in the following kits: 25 Drain Plug M = maintenance kit; R = repair kit; F=float 172-65455MA-03 (JH7RL-B/JH7RM-B) 13 Jul 2015...
  • Page 8: Installation

    If there is a problem, determine the cause using the “Troubleshooting” section in this manual. Tolerance Angle for Installation - 5° Make sure the trap is installed with the raised lettering on the body horizontal. 172-65455MA-03 (JH7RL-B/JH7RM-B) 13 Jul 2015...
  • Page 9: Maintenance

    (When conducting a visual inspection, flash steam is sometimes mistaken for steam leakage. For this reason, the use of a steam trap diagnostic instrument – such as TLV TrapMan – in conjunction with the visual inspection is highly recommended.)
  • Page 10: Disassembly / Reassembly

    (Fig. A) Air Vent Valve Remove with a socket Consult the table of Seat wrench tightening torques and tighten to the proper torque Air Vent Case Remove from the cover Place it in the cover 172-65455MA-03 (JH7RL-B/JH7RM-B) 13 Jul 2015...
  • Page 11 1 N⋅m ≈ 10 kg⋅cm) NOTE: - Coat all threaded portions with anti-seize. - If drawings or other special documentation were supplied for the product, any torque given there takes precedence over values shown here. 172-65455MA-03 (JH7RL-B/JH7RM-B) 13 Jul 2015...
  • Page 12 Air Vent Valve Plug Bimetal Plate Snap Ring Air Vent Screen Float Snap Ring Cover Gasket Connector Connector Gasket Cover Bolt Body Drain Plug Drain Plug Gasket Orifice Gasket Orifice Orifice Plug Gasket Orifice Plug 172-65455MA-03 (JH7RL-B/JH7RM-B) 13 Jul 2015...
  • Page 13: Instructions For Plug / Holder Disassembly And Reassembly

    Instructions for Plug / Holder Disassembly and Reassembly The seal on the threaded plugs/holders found on TLV products is formed by a flat metal gasket. There are various installation orientations for the gaskets, such as horizontal, diagonal and downward, and the gasket may be pinched in the thread recesses during assembly.
  • Page 14: Troubleshooting

    NOTE: When replacing parts with new, use the parts list for reference, and replace with parts from the Maintenance Kit, Repair Kit, etc. Please note that replacement parts are only available as part of a replacement parts kit. 172-65455MA-03 (JH7RL-B/JH7RM-B) 13 Jul 2015...
  • Page 15: Product Warranty

    One year following product delivery. 2. Warranty Coverage TLV CO., LTD. warrants this product to the original purchaser to be free from defective materials and workmanship. Under this warranty, the product will be repaired or replaced at our option, without charge for parts or labor.
  • Page 16: Options

    Options The options shown below are available for this product on request. Please compare with the product you received. Options for Area A (standard: with drain plug) Without Drain Plug 172-65455MA-03 (JH7RL-B/JH7RM-B) 13 Jul 2015...
