iOptron MiniTower GOTO Quick Start Manual

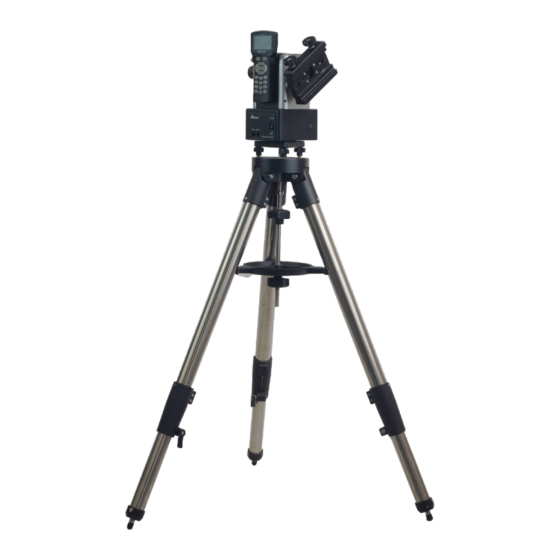

The MiniTower™ GOTO AltAz Mount
with GPS and dual Mount set-up
#8300
FEATURES
•
25 lb Payload
•
8 lbs of additional payload on the balancing side
•
All metal (aluminum alloy and stainless steel) heavy duty tripod
•
1.5"/1.25" stainless steel legs
•
Internal GPS
•
#8401 controller with USB port and 130,000 objects in database
•
Accurate SmartStar® GoTo and auto-tracking
•
Conical bearings, 4 steel ball bearings
•
Metal worm/gears
•
Automatic over-current protection
•
Automatic clutch protection for both axes
•
Typical GoTo accuracy: 1 Arc Min.
•
Resolution: 1 Arc Sec.
•
Dual scope setup with two dovetails
•
High accuracy level indicator
•
3-point easy level adjustment system
•
Manual push-to for both Axes
PACKAGE CONTENTS
•
Telescope Mount (with built-in GPS)
•
#8401 Hand Controller
•
Controller Cable
•
1.75-inchTripod
•
Tripod bolt
•
Tripod Support
•
3 kg Counterweight
•
Tripod Lock
•
Tripod Support
•
Tripod Rod
•
Primary Dovetail Lock
•
Primary Dovetail Holder
ONLINE CONTENTS (click under "Support" menu) www.iOptron.com
•
Manuals (you will need to refer to the full manual for details on set-up and operation).
•
Tips for set up
•
Hand controller firmware upgrades (check online for latest version)
•
Reviews and feedback from other customers
iOptron Corp. | 6E Gill Street | Woburn, MA 01801 USA | (781) 569‐0200 | Toll Free (866) 399‐4587 | www.iOptron.com
•
Azimuth Lock
•
Altitude Lock
•
Counter Balance Arm Lock
•
Secondary Dovetail Holder Lock
•
Secondary Dovetail Holder
•
Secondary Dovetail Lock
•
Counter Balance Arm
•
AC adapter
•
USB cable
•
12V DC adaptor cable with car
lighter plug
•
Hard travel case
