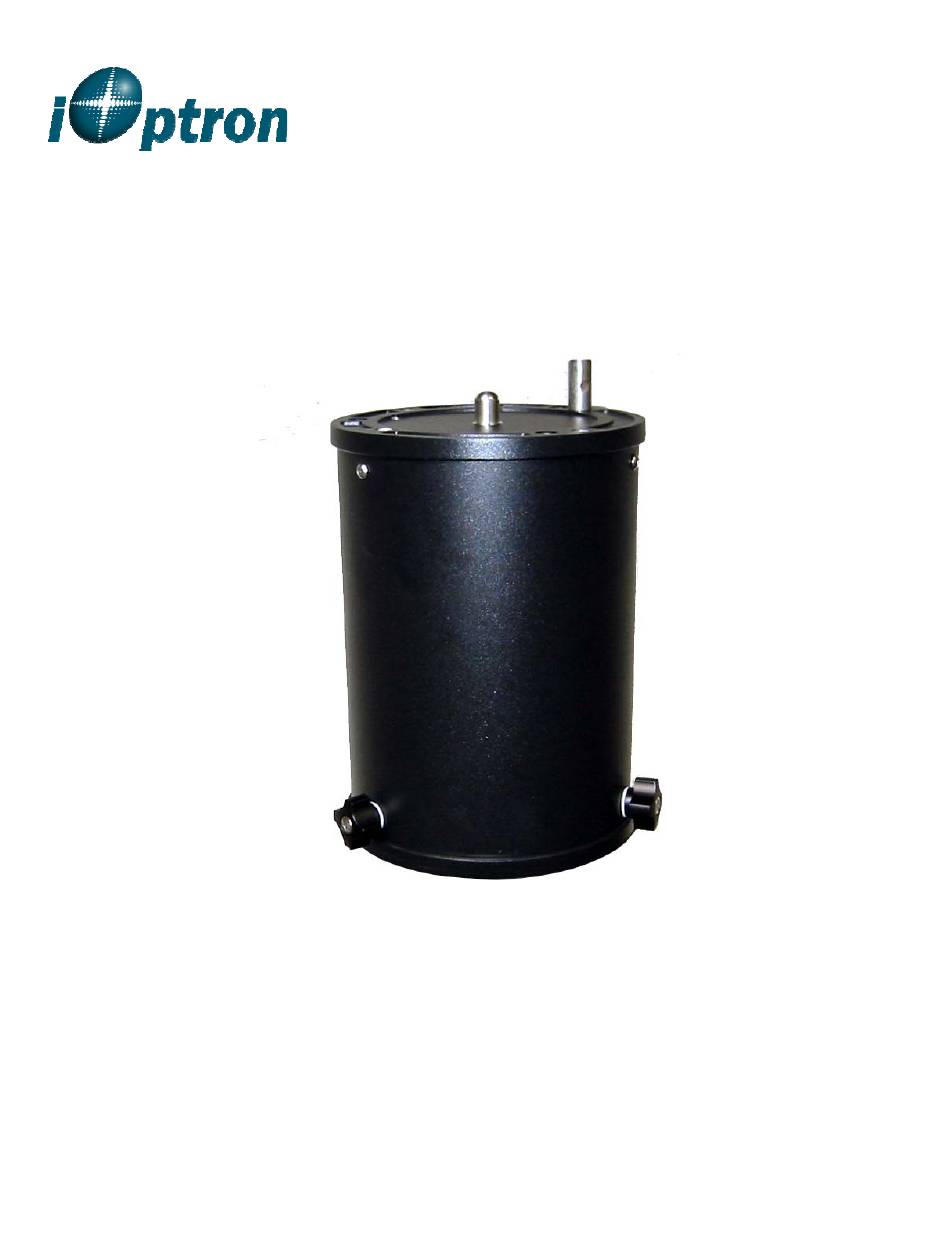

- Page 1 ® ® iOptron MiniPier Instruction Manual Product #8032...

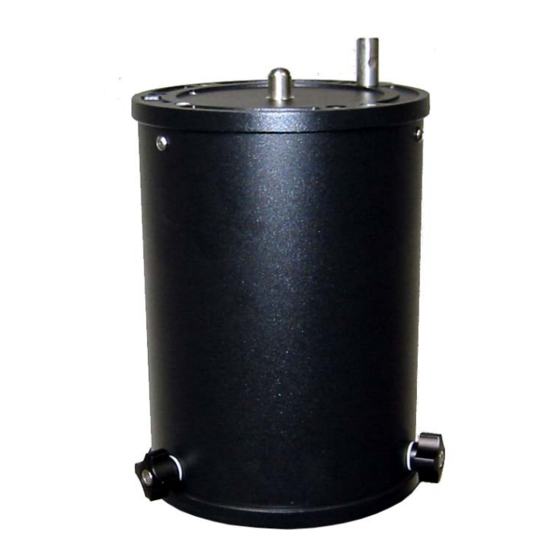

- Page 2 MiniPier 8032 ® iOptron MiniPier is designed for iOptron GOTO mounts, which includes CEM60, iEQ45, iEQ30 MiniTower and AZ mount Pro mount. It can be used with a MiniTower/MiniTower Pro/iEQ45 tripod, pier or Tri-pier to raise 8” in height. Parts include: The actual parts included in the package depend on the mount type: 1.
- Page 3 Remove the alignment peg from the iEQ45 tripod head. 2. Release three locking screws located at the bottom of the MiniPier body. Put the Base Flange onto the tripod head. Using two M8 hex head screws to secure the base flange on to the iEQ45 tripod.
- Page 4 The assemble example shown here is to installing a MiniPier onto a 1.5 inch MiniTower tripod. The procedure will be similar for installing a MiniPier onto a 2 inch MiniTower Pro/AZMP tripod. 1. Extend the tripod legs and adjust the height of the tripod.
- Page 5 8. Final adjust the tripod height and level the tripod with MiniPier before mounting the MiniTower mount. 9. Install 3 MiniTower level adjustment screws and threaded in about half of the threads. Put the MiniTower on to it. Level it. Thread the MiniTower Securing Bolt into the MiniTower and tighten it.
