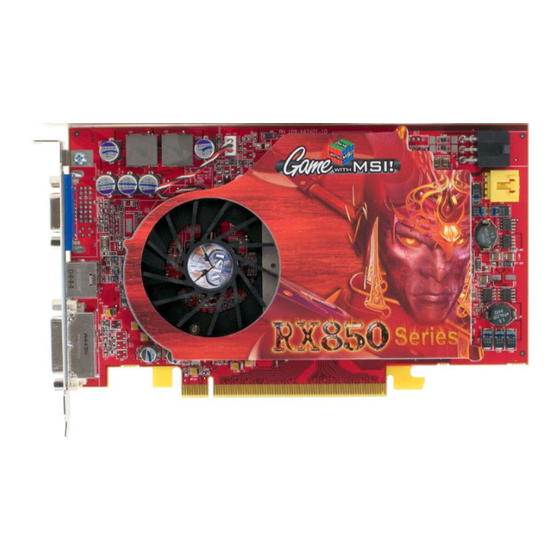

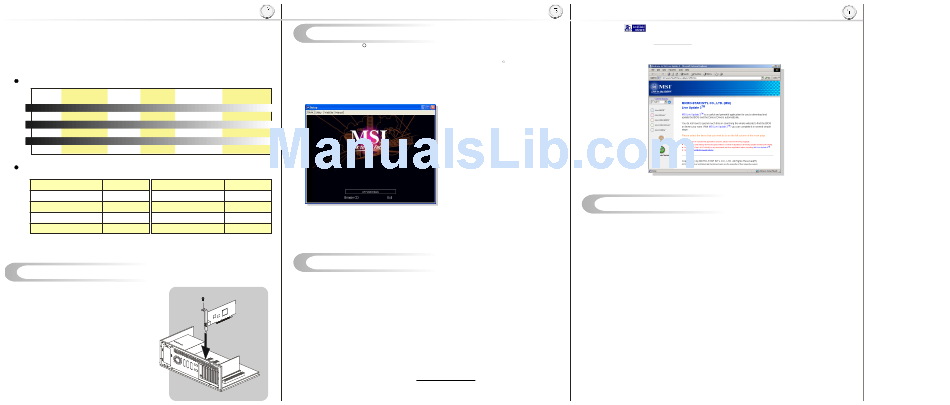

MSI RX850PRO-TD256E Quick Installation Manual

* Seamless integration of pix el shaders with video in real time
TM
* FULLSTREAM video de-blocking technology for Real, DivX, and WMV9 formats
TM
* VIDEOSOAP noise removal filtering for captured video
* MPEG1/2/4 decode and encode acceleration
* Adaptive Per-Pixel De-Interlacing and Frame Rate Conversion (temporal filtering)
* Innovative 0.11 micron process technology
PERFORMANCE **For Reference Only**
Pix el Geometr y Me mor y Core Speed/
Pipelines
Transform Rate Gigaflops Bandwidth Memor y Speed
RX850XT PE
16 810 207 37.8 540
M vertices/sec. GB/sec. e
RX850XT
16 780 200 34.6 520 /540
M vertices/sec. GB/sec. e
RX850PRO
12 780 159 24.6 520 /540
M vertices/sec. GB/sec. e
2D Display Modes: Resolutions, colors and masimum refresh rates(Hz) in 256, 65K Or 16.7M
colors
640x480 200Hz 1600x1200
800x600 200Hz 1920x1080
1024x768 200Hz 1920x1200
1152x864 200Hz 1920x1440
1280x1024 160Hz 2048x1536
H
ardware Installation
Follow the steps below to install the VGA card :
1. Remove the computer case.
2. Locate the PCI Express slot on your mainboard.
Warning: Inserting the VGA card into a wrong
slot (e.g. AGP slot) may damage your card (refer
to your mainboard manual for more Information).
3. Put the card directly over the PCI Ex press slot
and press one end of the card into the slot first.
Gently but firmly press the other end until it is
fully seated in the slot.
4. Secure the card with a bracket screw.
5. Install all other cards and devices and connect
all the cables, and t hen install the case.
6. Connect the monitor. Now, you are ready to
install the software on your computer.
S
oftware Installation
R
(for Windows XP/ 2000
To install the driver of the VGA card to your computer running
please f ollow the st eps below:
1. Turn on the computer.
2. Insert the CD int o the CD-ROM drive. The Autorun program will start the Setup
program, and show the setup screen as follows:
Pixel Fill Rate
/590 8.6
m Mhz Gigapixels/sec.
8.3
m Mhz Gigapixels/sec.
6.2
m Mhz Gigapixels/sec.
120Hz
120Hz
100Hz
3. Click A i VGA Drivers T
90Hz
installation.
85Hz 4. After finishing the installation, restart the computer as instructed.
I
TM
nstalling MSI Live Update 3
MSI TM Live Update 3 TM is a useful utility for you to upgrade your MSI
VGA card. Thanks to the powerful capac ity of this utility, you can conveniently
download and automatically update the BIOS and the drivers on-line, without spending
much time in searching many Web sites to find the BIOS or drivers you want.
Installing from the CD-Title
1. Insert the CD into the CD-ROM drive, and start the
2. Click the Utility tab on the setup screen.
TM
3. Click the MSI Live Update 3
installation.
TM
Installing from the MSI
1. Make connection to MSI's website at http://www.msi.com.tw
2. Select /Support/Live Update 3/
the setup page.
)
Windows XP or 2000, R
Tip : If, on your computer, the
Autorun program does not execute
automatically, please 1) enable the
CD-ROM drive Auto-detect function
from Control Panel; or 2) find and
run the setup.exe file manually from
the CD.
. Follow the on-s creen instructions to complete the
TM
TM mainboard and
Setup program.
TM
. Follow the on-screen instructions to complete the
Web Site
on the upper part of the MSI's homepage to enter
3. Click the InstallShield Wizard button to have the program of MSI
TM TM
Update 3 with MSI Live monitor downloaded and installed on your system
automatically, or click here (manual) to download and install the program manually.
4. Follow the on-screen instruct ions to complete the installation.
The page of the MSI TM Live Update 3 TM
U
TM TM
sing MSI Live VGA Driver Update
TM TM
MSI Live VGA Driver Update
This service enables you to update the latest VG A driver for your VGA card.
TM TM
1. To update t he MSI Live VGA Driver , click Live VGA Driver
column of the main page.
2. This utility will start checking your platform and the information on the VGA card, and
display the information in a l ist.
3. Click the graph button on the bottom to connect MSI Live Update Series Server.
Then, it will automatically connect the Internet and compare the version of the driver
in the database.
4. It may take several minutes to det ect the required drivers. Please wait while
proceeding detection.
5. Click the InstallShield Wizard but ton on the right side of the table to download and
updat e the driver. All actions will proceed automatically.
6. Follow the on-screen instruct ions to complete the updating procedure.
