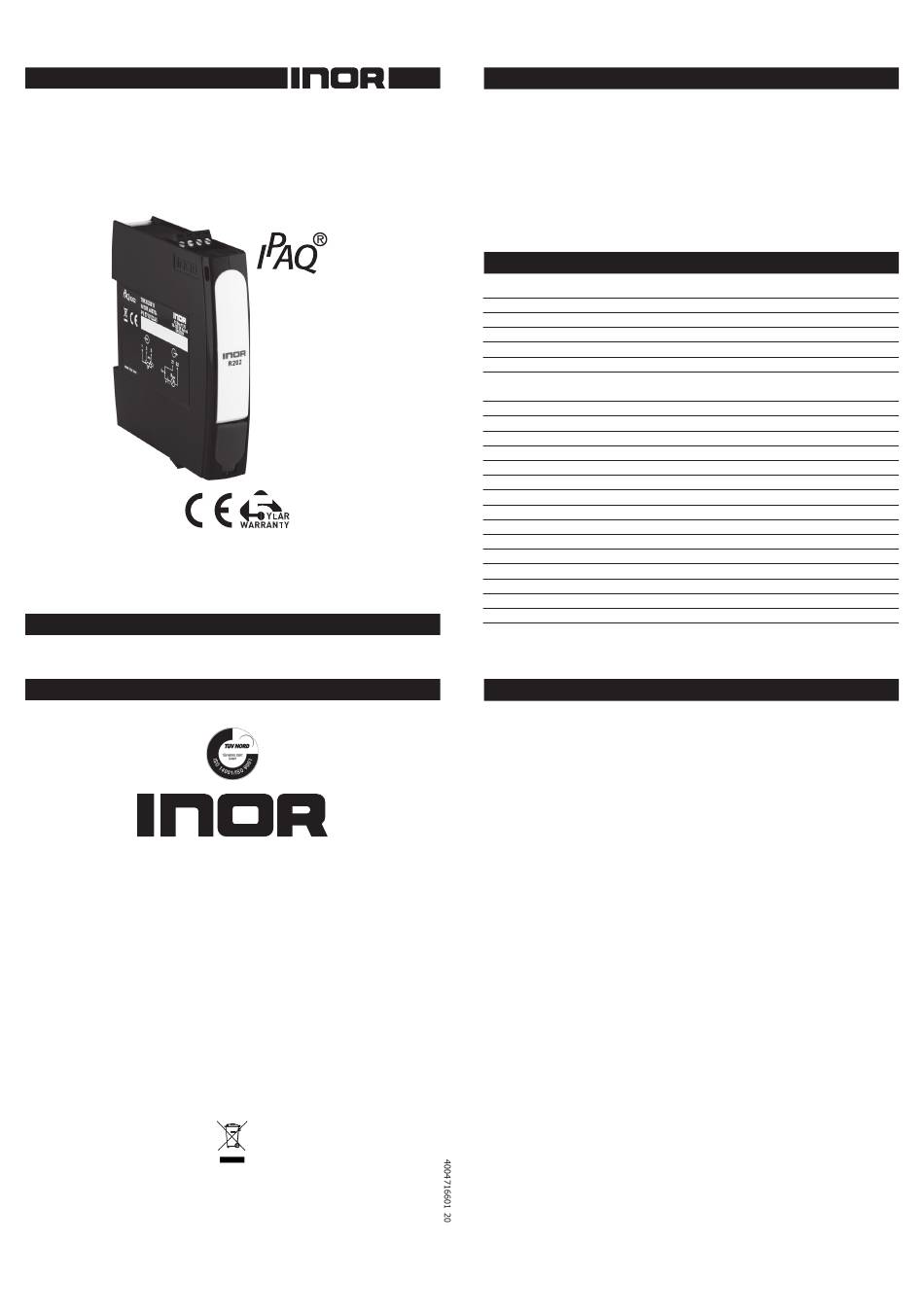

USER INSTRUCTIONS
PC-programmable
2-wire Transmitter
for Pt100 Input
The user instruction must be read prior to adjustment and/or installation.
All information subject to change without notice.
M E AS U R E O F S U C C E S S
This product should not be mixed with other kind of scrap, after usage.
It should be handled as an electronic/electric device.
M E AS U R E O F S U C C E S S
Find Quality Products Online at:
R202
GlobalTestSupply
www.
G E NE R A L I NF O R M A T I O N
IPAQ R202 is a low cost, non-isolated, easy-to-use 2-wire temperature
transmitter for Pt100 input intended to be used in industrial environment.
IPAQ R202 is designed to be mounted on a 35 mm DIN Rail.
The transmitter is configured from a PC via a USB port, connected via the
INOR USB Interface, by using the ConSoft program.
All necessary hardware and software for configuration are included in the
ICON Configuration Kit, 70CFGUS001.
D A T A ( s h o r t f o r m )
Input Pt100
α
Pt100 (IEC 60751, =0.00385)
Adjustments - Zero
Adjustments - Minimum span 20 °C / 36 °F
Output
Sensor failure indication
NAMUR Compliance
Response time
Ambient temperature
Storage and operation
Galvanic isolation
Power supply
Accuracy
Sensor error correction
Runtime counter
Mounting
Factory settings
Input
Output
Filtering level
Sensor failure indication
C O NF I G U R AT I O N
Before making a configuration of IPAQ R202 you need to do
following:
1. Install the configuration software ConSoft and drivers for the
INOR USB communication interface on a PC.
2. Connect the USB Interface to a free USB port of your PC and
wait for automatic installation of the USB Interface.
Please refer to the installation guide for ConSoft for detailed
installation instructions.
Required versions of configuration software:
ConSoft, 3.1.0 or higher
USB Interface, firmware 1.2.06 or higher
Connections:
PC to Interface: through USB type A to USB type B connection cable
Interface to transmitter: Mini USB type B to Mini USB type B cable
Configuration procedure:
1. Connect the transmitter to the PC via the USB Interface, LED indicator
"DEV" on the USB Interface becomes green.
Configuration can be performed with or without connected power
supply to the transmitter.
2. In ConSoft, click on the "Read" button. The software will recognize
the connected transmitter and open the configuration window.
3. In the "C202/R202" configuration window you can edit:
a. Measuring range in three different engineering units
b. Upscale or downscale action at sensor errors
c. Compensation for known sensor errors
d. TAG-number
4. The selected configuration is downloaded to the transmitter by
clicking the button "Write", when the data transfer is complete,
the transmitter begins using the new parameters directly.
.com
3-wire connection
-200 to +850 °C / -328 to +1562 °F
Any value within range limits
4-20 mA, temperature linear
Upscale (≥21.0 mA) or downscale (≤3.6 mA)
Current limitations and failure currents acc.
to NAMUR NE 43
0.13 to 54 s, adjustable filtering level
-40 to +85 °C / -40 to +185 °F
No
6 to 35 VDC
Max. of ±0.1 °C / ±0.2 °F or ±0.1 % of span
Via two-point correction
Hour counter for elapsed operational time
DIN rail acc. to EN 60715 / EN 50022, 35 mm
Pt100 3W, 0 to 100 °C
4 to 20 mA
Response time 0.9 s
Upscale (≥21.0 mA)
