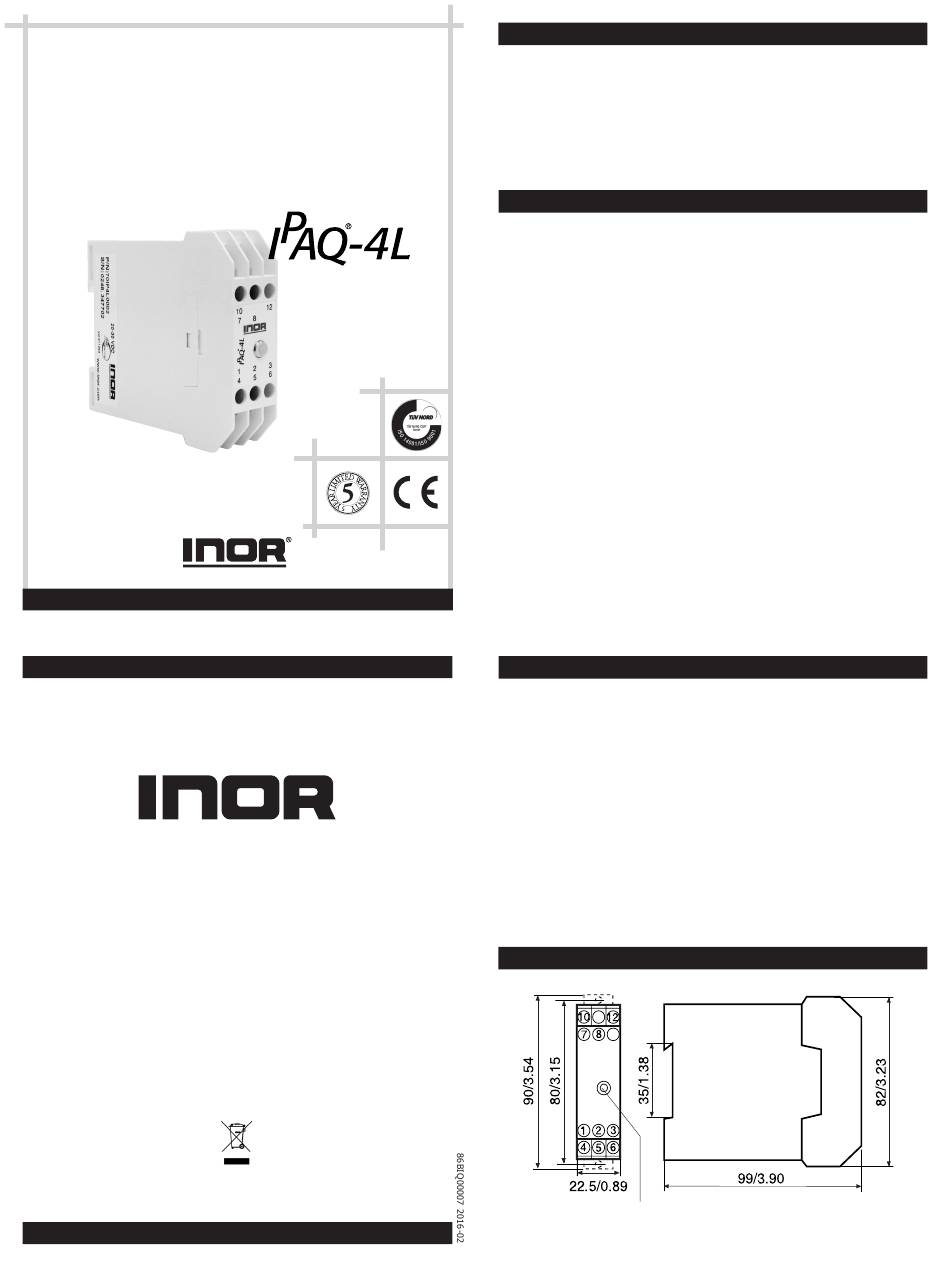

USER INSTRUCTIONS
Universal
High-Isolation
4-wire Transmitter
The manual must be read prior to adjustment
and/or installation. All information subject to
change without notice.
www.inor.com, www.inor.se
M E A S U R E O F S U C C E S S
INOR Process AB, PO Box 9125, SE-200 39 Malmö, Sweden,
Phone: +46 40 312 560, Fax: +46 40 312 570, E-mail: support@inor.se
INOR Transmitter OY, Unikkotie 13, FI-01300 Vantaa, Finland,
Phone:+358 10 421 7900, Fax: +358 10 421 7901, E-mail: myynti@inor.fi
INOR Transmitter GmbH, Am See 24, D-47279 Duisburg, Germany,
Phone: +49-203-7382 762 0, Fax: +49-203 7382 762 2, E-mail: info@inor-gmbh.de
KROHNE Temperature Division INOR, 7 Dearborn Road,
Peabody, MA 01960, USA,
Phone: +1 978 826 6900, Fax: +1 978 535 3882, E-mail: inor-info@krohne.com
www.inor.com, www.inor.se
This product should not be mixed with other kind of scrap, after usage.
It should be handled as an electronic/electric device.
MEASUR E O F SU CCESS
I NT R OD U C T I ON
IPAQ-4L is a fully universal and programmable 4-wire (separately
powered) transmitter. The high isolation provides safe and problem
free measurements. Offering both current and voltage output,
IPAQ-4L meets any process requirements. Designed for wall and
DIN-rail mounting.
IPAQ-4L is intended to be used in industrial environment.
C O NF I G U R AT I O N
The transmitter is configured from a standard IBM compatible PC
by using the IPRO software (version 4.1 or later). IPRO 4.1 is com-
patible with Windows 98SE, Windows NT Workstation 4.0, Windows
2000 and Windows XP. When the transmitter is reconfigurated by a
PC no recalibration is needed.
Connect the IPRO communication cable between the serial port of
a PC (with IPRO software installed) and the PC connection port on
IPAQ-4L.
The IPAQ-4L must be powered, when you configure the
transmitter.
If IPRO (the IPAQ software) isn't installed in your PC, install the
software (follow the instructions in "IPRO"). Configuration from
PC is "on-line", that is, the transmitter can be installed in the process
with input connected during configuration. The output is frozen while
transmission from PC to IPAQ take place. When transfer is done the
transmitter uses the new parameters.
NOTE: The label on the transmitter indicate allowed power supply
to the transmitter. By connecting false power supply the
transmitter may be damaged.
C ALI BR ATI O N
Since IPAQ-4L is a precision instrument it´s recommended to check
the calibration once a year. Use equipment with an
inaccuracy of at least 5 times better than the checked one, e.g. if you
are checking a transmitter with an inaccuracy of 0.1% use instrument
with an inaccuracy of maximum 0.02%.
You can either perform a full recalibration of the transmitters stored
calibration parameters (Basic Calibration) or make a System
Error Correction (recommended). In each case use the IPRO software
and follow the instructions on the screen. When performing a System
Error Correction, please note that this is only a compensation for
errors at the measuring range in use.
D I M ENS I O NS
PC connection
mm/inches
