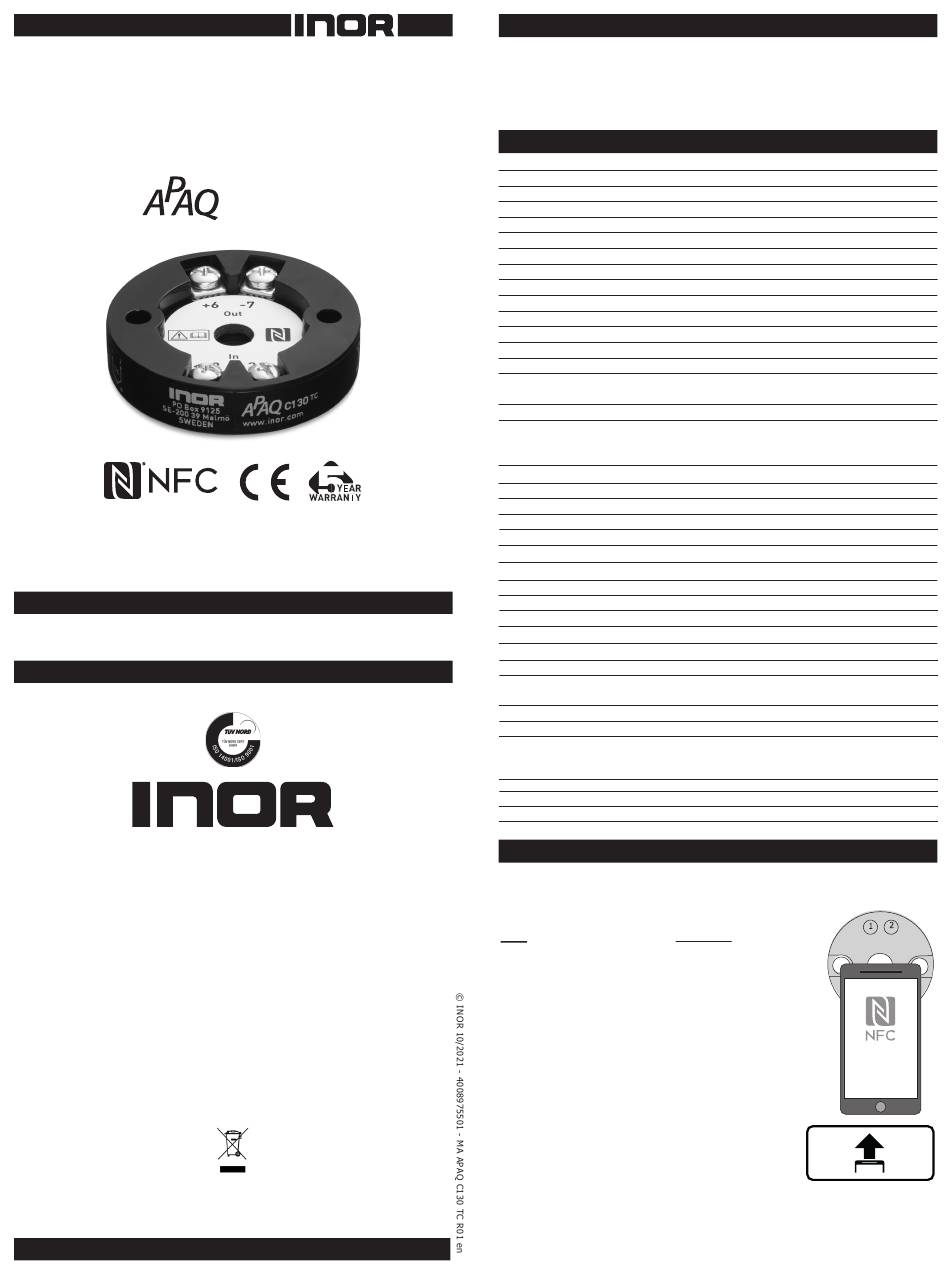

USER INSTRUCTIONS
Programmable
2-wire Transmitter
for Thermocouple
The user instruction must be read prior to adjustment and/or installation.
All information subject to change without notice.
MEASUR E OF SUC C ESS
INOR Process AB, PO Box 9125, SE-200 39 Malmö, Sweden,
Phone: +46 40 312 560, Fax: +46 40 312 570, E-mail: support@inor.se
INOR Transmitter OY, Unikkotie 13, FI-01300 Vantaa, Finland,
Phone:+358 10 421 7900, Fax: +358 10 421 7901, E-mail: myynti@inor.fi
INOR Transmitter GmbH, Am See 24, D-47279 Duisburg, Germany,
Phone: +49-203 7382 762 0, Fax: +49-203 7382 762 2, E-mail: info@inor-gmbh.de
KROHNE Temperature Division INOR, 55 Cherry Hill Drive,
Beverly, MA 01915, United States
Phone: +1 978 826 6900, Fax: +1 978 535 1720, E-mail: inor-info@krohne.com
www.inor.com, www.inor.se
This product should not be mixed with other kind of scrap, after usage.
It should be handled as an electronic/electric device.
MEASUR E OF SUC C ESS
C130
TC
G ENERA L I NFO RM A TI ON
APAQ C130 is a low cost, non-isolated, easy-to-use 2-wire transmitter, for
TC
thermocouple input, intended to be used in industrial environment.
The transmitter is configured from a mobile device via NFC
communication, by using the app INOR Connect. Inor Connect is available
for free download on App Store, Google Play Store and Huawei AppGallery.
D AT A (s h or t f o rm)
Input
TC type B - Pt30Rh-Pt6Rh (IEC 60584)
TC type E - NiCr-CuNi (IEC 60584)
TC type J - Fe-CuNi (IEC 60584)
TC type K - NiCr-NiAl (IEC 60584)
TC type N - NiCrSi-NiSi (IEC 60584)
TC type R - Pt13Rh-Pt (IEC 60584)
TC type S - Pt10Rh-Pt (IEC 60584)
TC type T - Cu-CuNi (IEC 60584)
Input impedance
Maximum wire loop resistance
Cold Junction Compensation
Output
Sensor failure indication
NAMUR Compliance
Adjustable filtering level
Warm-up time
Ambient temperature
Storage and operation
Galvanic isolation
Power supply
Accuracy
TC type B
TC type R, S, T
TC type E, J, K
TC type N (-100...+1300 °C )
TC type N (-270...-100 °C )
CJC accuracy

Mounting

Configuration

RoHS, China RoHS
Factory settings
Input
Output
Sensor error indication
C ONFI G UR AT I ON
Before making a configuration of APAQ C130
Make sure that you have a mobile device with NFC communication
activated. Download the app INOR Connect to your mobile device.
Required versions:
iOS: iOS 13 or later and Android:
Iphone 7 or later for NFC
Android 4.4 or later
Configuration procedure:
1.
Launch the app by clicking on the App icon or holding
your mobile device against the transmitter on the part
of the device where NFC is located (only possible with
Android).
2. Click on "Read Configuration" and hold your mobile
device against the transmitter as explained in the
first section.
In the app you can edit the following:
3.
a. Sensor type
b. Measuring range
c. Upscale or downscale sensor error indication
d. Filter level
e. TAG-number
f. Password
4.
Once you have set the desired values in the app, you transfer it to the
transmitter by clicking the transfer button and holding the mobile device
against the transmitter until a green check box appears confirming that
the transfer has been completed.
2-wire connection
0...+1820 °C / +32...+3308 °F
-270...+1000 °C / -454...+1832 °F
-210...+1200 °C / -346...+2192 °F
-270...+1300 °C / -454...+2372 °F
-270...+1300 °C / -454...+2372 °F
-50...+1750 °C / -58...+3182 °F
-50...+1750 °C / -58...+3182 °F
-270...+400 °C / -454...+752 °F
10 MΩ
In-head transmitter (TC sensor): 5 kΩ
Internal or fixed
4-20 mA, temperature linear
Upscale (≥21.0 mA) or downscale (≤3.6 mA)
Current limitations and failure currents acc.
to NAMUR NE 43
0.4 to 26 sec.
After a max. 20 minutes the accuracy
specifications are reached
(due to the internal cold junction)
-40 to +85 °C / -40 to +185 °F
None
6 to 32 VDC
See Data Sheet
Max. of ±2.0 °C or ±0.2% of span
Max. of ±3.6 °F or ±0.2% of span
Max. of ±1 °C or ±0.2% of span
Max. of ±1.8 °F or ±0.2% of span
Max. of ±1 °C or ±0.2% of span
Max. of ±1.8 °F or ±0.2% of span
±2.0 °C / ±3.6 °F
Typical ±1 °C / ±1.8 °F (max ±3 °C /
±5.4 °F) within ambient temperature range
DIN B-head or larger
App INOR Connect via NFC™
Directive: 2011/65/EU and 2015/863/EU
Harmonized standard: EN IEC 63000
China RoHS 2
Type K
0 to 1000 °C
4 to 20 mA
Upscale
you need to do following:
TC
