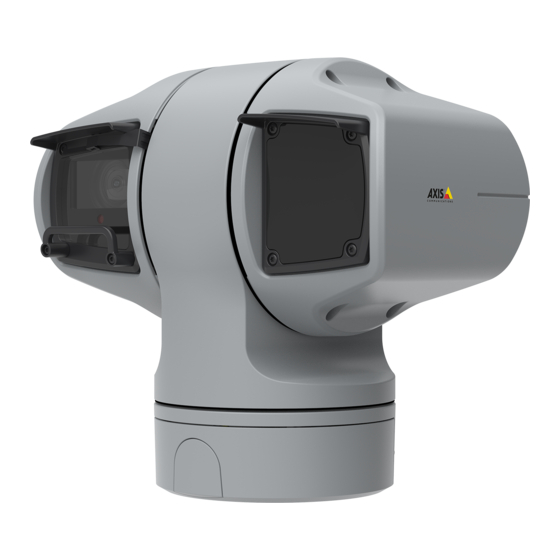

AXIS Q6225-LE PTZ Camera
Repainting Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the Q6225-LE and is the answer not in the manual?

Questions and answers

Related Manuals for Axis Q6225-LE

Summary of Contents for Axis Q6225-LE

  • Page 1 AXIS Q6225-LE PTZ Camera Repainting Instructions...

  • Page 2: Impact On Warranty

    Risks with repainting There are several risks when disassembling or assembling an Axis product. There is always a certain yield loss during assembly. Training of operators and the use of correct tools mediates some of the problems but they can never be fully avoided. Some of the risks include: ESD Damage - Always handle the product in an ESD safe environment.
  • Page 3 AXIS Q6225-LE PTZ Camera Repaint the product Repaint the product Preparations • If applicable, disassemble the device according to the instructions in this document. • Clean all parts that will be repainted thoroughly to remove grease, dust, or oil. •...
  • Page 4 AXIS Q6225-LE PTZ Camera Repaint the product 2. Unscrew the four screws from the main window. 3. Disconnect the heater connector. Note • Carefully lift out the main window before disconnecting the heater connector. • Do not touch the circuit board on the inside of the window.
  • Page 5 AXIS Q6225-LE PTZ Camera Repaint the product 4. Unscrew the four screws from the IR window and remove the IR window. 5. Remove the screws and washers from the foot.
  • Page 6 AXIS Q6225-LE PTZ Camera Repaint the product 6. Remove the SD card cover. Repainting Masking Mask the following parts: • The IR window • The main window • The control button • The screw holes in the foot • The SD card slot •...
  • Page 7 AXIS Q6225-LE PTZ Camera Repaint the product Repainting the parts Repaint the camera unit and the SD card cover. Camera unit SD card cover 1. Apply a thin and even layer of spray paint according to the instructions of the paint manufacturer.
  • Page 8 AXIS Q6225-LE PTZ Camera Repaint the product Reassembly 1. Assemble the screws and the washers with the foot. 2. Put the SD card cover back in its place. 3. Connect the heater and assemble the main window. 4. Assemble the IR window.
  • Page 9 Repainting Instructions Ver. M1.6 AXIS Q6225-LE PTZ Camera Date: July 2022 © Axis Communications AB, 2022 Part No. T10180640...
