Aquael ASAP 800 Manual

We ask you to read the instruction manual carefully before using the product to avoid any potential problems.

PRODUCT DESTINATION AND CHARACTERISTICS

ASAP filters are designed for purifying of aquarium water. They are equipped with an external intake pump allowing for operation even in extremely shallow water.

TECHNICAL SPECIFICATION

Type: ASAP
Characteristics: 800
voltage • frequency ~ 220-240 V • 50 Hz
maximum submersion depth 100 cm
degree of protection of enclosure IPX8
wattage [ W ] 6
dimensions [mm] 320x150x150
filter output [l/h] 650
Recommended aquarium size [l] 100-200

PARTS (FIG.1)

Parts

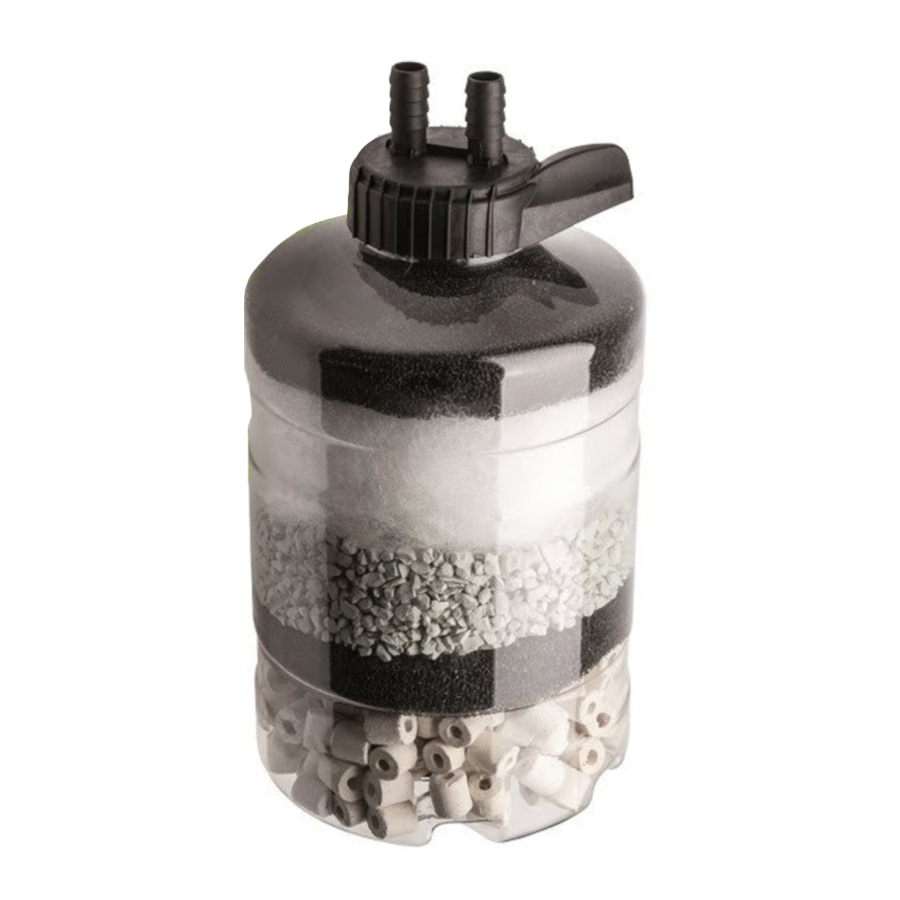

a filter housing for the ASAP 800 filter, complete with a cover, and a set of filter media
b 105884 connection hose - 2 x 1,2 m
c 105881 set of connection pipes 2 pcs.
d 110411 MK-800 intake pump
e 100491 set of suction cups - 4 pcs.
f 100129 deflector
g 101103 intake strainer
h 105941 Elbow

CONDITIONS OF SAFE USAGE

The device you purchased was manufactured in conformity with all safety standards currently in force on the area of European Union. For long lasting and safe usage please read the safety conditions below:

  • The device can be powered from a power grid of voltage stated on the device.
  • MK-800 pump can only be used for pumping liquids of temperature up to 35°C and must not be used with inflammable materials or consumable liquids
  • A device that is damaged or has a damaged power cord must not be used. The condition of the power cord should be checked prior to every start-up of the device. The power cord must not be repaired, replaced or have any additional elements installed. In case of damaging the cord the entire device should be replaced.
  • The maximum submergence depths is stated in technical specification.
  • The device is designed for usage only indoors and accordingly to its destination.
  • Prior to placing hand in the water, all of the electric devices present in the tank should be unplugged from power.
  • This device can be operated by children who are at least eight years of age, by persons with reduced physical or mental capabilities or persons with no prior experience with the device only under supervision or following an instruction on the safe operation of the device to ensure that the person is aware of any associated risks. The device is not a child's toy! Do not let children to clean or perform maintenance on the device without supervision.

ASSEMBLY AND START-UP (FIG. 2-4)

Assembly and Start-up

ASAP filter can be installed in three ways depending on the operation type. It is recommended to install a prefilter in form of a sponge cartridge on the intake strainer (index 101235) (Notice! The prefilter is not included in the set and can be purchased separately):

Fig. 2 – intake pump is installed inside the tank onto its wall and performs the function of a pump supplying the filter with water. That solution is recommended for fish tanks.

Fig. 3 – intake pump is installed outside of the tank lower than the aquarium water level and performs the function of a flow pump. The solution is recommended for standard fish tanks. In that case it is crucial to prime the pump by sucking the water in the intake hose prior to starting the pump.

Fig. 4 – intake pump is installed inside the tank to its bottom and performs the function of a pump supplying the filter with water. That solution is recommended for aquariums with low water level.

MAINTENANCE (FIG. 5-6)

Maintenance

Note! Before the first use of the filter, the filter bowl should be rinsed. Fill the bowl filter with tap water and then empty it. Repeat the operation three times in a row. This will prevent dust from zeolite and ceramic cartridges from getting into the aquarium.

The intake pump requires regular cleaning of the impeller (fig. 5b) in order to remove potential mechanical impurities from the impeller chamber. To perform this action after disconnecting the device from power outlet the pump cover (fig. 5a) should be twisted off with an anticlockwise movement, then the impeller cover should be removed. After removing the impeller, it should be cleaned together with the impeller chamber using a soft brush. In case of the pump operating outside of the tank (fig. 3) as a flow pump it is recommended to regularly maintain the gasket placed under the impeller cover by its thorough cleaning and lubricating with technical vaseline. In order to ensure proper operation of the filter, the filter tank (product number 113421) should be replaced at least every 6-9 months.

Filter capacity can be adjusted by turning the filter cover in a counterclockwise direction (Fig. 6) in the range between 0 and 40 degrees. Turning the control valve for a full 40 degrees will cut off water supply to the filter for a short time, so that the user can clean the filter media or replace the filter media container with a new one without the need to disconnect the pump from the mains. During this time, water will circulate through by-pass ducts.

Attention! In order to ensure continuous and trouble-free operation of the filter it is recommended that the seal under the cover of the feeding pump be periodically replaced. If necessary, the impeller of the feeding pump (part number 110911) can also be replaced.

DISASSEMBLY AND DISPOSAL


It is forbidden to dispose of used electric and electrical equipment in a trash bin. Segregating and proper utilization of this kind of waste leads to conserving the resources of natural environment The user is responsible for delivering the used product to a specialized collection point where it will be accepted free of charge. You can obtain information about such a facility at the local authorities at the product seller.

GUARANTEE CONDITIONS

The manufacturer grants a 24 month guarantee beginning on the date of purchase. The guarantee covers defects arising from manufacturer fault i.e. defective materials or assembly errors. It does not cover damage due to user's fault caused by improper handling of the device or using the device for purposes discordant its destination. Attention: any modification or disassembly attempt exceeding normal usage and maintenance cause the guarantee void.

In case of noticing improper operation of the device send it with filled out warranty card to the manufacturer or distributor address. The conformity of the production date stamped on the product and written in the guarantee card is a prerequisite for accepting the guarantee. The following warranty conditions do not exclude, limit or suspend user's rights derived from discrepancy of the merchandise with the agreement. The guarantee is limited to repair or replacement of the unit only and does not cover consequential loss or damage to animate or inanimate objects.

Note: Manufacturer's warranty does not cover the filter tank.

AQUAEL Sp. z o. o.
16-400 Suwałki, Dubowo II 35, Poland
www.aquael.com, e-mail: service@aquael.com
