Creative SXFI AIR - Super X-Fi Bluetooth Headphones Quick Start Guide

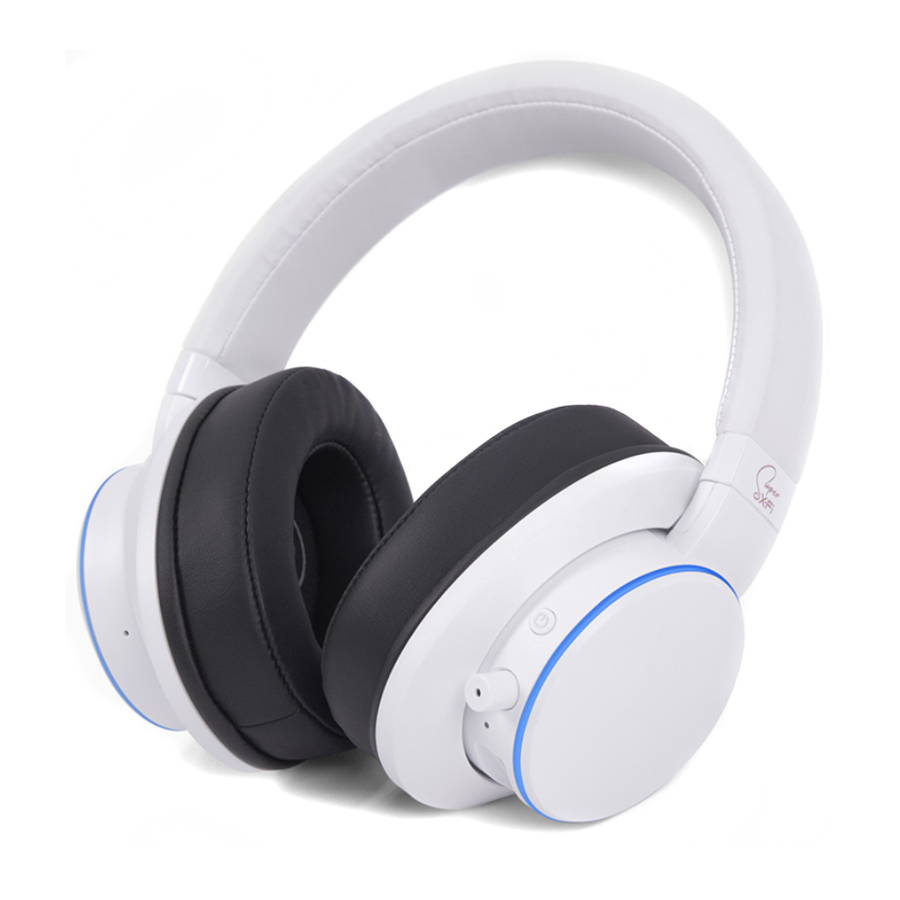

Oveview

1. RGB Lighting
2. High Density Memory Foam
3. Durable Leatherette Headband
4. Super X-FI Button
5. MicroSD Card Slot
6. Bluetooth / Source Button
7. Power Button
8. NanoBoom Mic
9. Battery Charging LED
10. USB-C Port
11. 3.5mm Analog Jack

Specification

Headphones

• Driver: 50mm Neodymium magnet
• Frequency response: 20 Hz ~ 20 kHz
• Impedance: 32 Ω
• Sensitivity: 105 dB/mW @ 1 kHz
• USB input: 5 V

Microphone

• Type: Unidirectional noise-reduction
• Frequency response: 100 Hz ~ 8 kHz
• Impedance: <2.2 kΩ
• Sensitivity: -38 dB @ 1kHz
  Wireless Type: Bluetooth 4.2
  Bluetooth Profiles:
• A2DP (Wireless stereo Bluetooth)
• AVRCP (Bluetooth remote control)
• HFP (Hands-free profile)
  Input: 5V 1A
  RF Output Power: < 4dBm
  Operating temperature: 0°C to 45°C
  Wireless Range: Up to 10m
  Charging Time: 2.5hr
  Play Time: Up to 8hr playback time
  Audio Codec: SBC
  Lithium Ion Battery: 3.7V 1300mAH
  (4.81Wh)

Enhance Your Audio

Unleash the performance of Super X-Fi with the SXFI App and SXFI AIR Control App

Unlock the performance of your Creative SXFI AIR on PC/Mac with SXFI Control. Download at support.creative.com

Charging

Built-in Battery

Charging SXFI Air when it is switched off

• Built-in LED will display solid Red
• Built-in LED will turn off when fully charged

Voice Prompt:

• Battery Level Low
• Battery Level Medium
• Battery Level High

Note:

• RGB Lighting will light up and indicate Battery Level when switched on
• When battery is low, headphones will prompt "Battery Level Low" every 10 minutes
• Headphones will not switch on when battery is too low
• Turns off automatically after 10 minutes of inactivity in the following modes: Bluetooth / Line-in / SD Card. Headphones will start charging when connected via USB to a power source except in the following modes: USB Mode / Mass Storage Mode
• Battery Level is also indicated in app for user's reference

Factory Reset

1. Press and Button simultaneously for 5 secs till RGB Lighting blink twice in Red
2. RGB Lighting will revert to default color once Factory Reset is complete

Voice Prompt: Reset to Factory Default
Note: Factory Reset can also be triggered via Windows app

Other Information

Supplementary documentation for this product includes a detailed user guide, DoC and safety and regulatory information. These documents can be the creative.com/support/SXFI Air site.
Compliance markings can be seen on the surface upon removal of ear cup cushion which can be removed by hand.

Keep this document for future reference.

Power Button

Power Button:

• Press and hold for 2 secs to switch on
• Press and hold for 2 secs again to switch off
• Press and hold shortly to indicate battery level. RGB Lighting will blink twice in Red in off mode if battery level is low

RGB Lighting: Blue OR User's Color Setting

Bluetooth / Source Button

Note: Bluetooth will cancel discovery mode if no device is paired within 30 secs. Bluetooth can only be paired in standalone state

Bluetooth Pairing:

• Press and hold for 2 secs to initiate Bluetooth pairing
• Press and hold for 2 secs again to cancel

Voice Prompt:
Now In Pairing Mode

Connecting/Disconnecting Bluetooth:

• Bluetooth will auto connect to last paired device when switched on

Bluetooth Reset:

• Press and hold for 8 secs till the RGB Lighting blink twice in Red
• RGB Lighting will revert to default color once Bluetooth Reset is complete

Voice Prompt:
Bluetooth Reset

BLE Pairing:

• Trigger pairing on mobile app
• Press and hold Bluetooth Pairing for 2 secs

Note: Mobile app is required to establish BLE connection

RGB Lighting: Blinks in Blue when in Pairing Mode

Change Sources:
Press once to switch between sources (Bluetooth > Micro SD Card > USB Audio)
Voice Prompt:

• Bluetooth
• SD Card
• USB

Note:
Nintendo Switch works with Line-in mixed with other sources.

Super X-FI Button

Touch Pad

	Increase Volume: Headphones will play a tone at Maximum Volume Decrease Volume
	Previous Track Next Track
	Call Panning: Activate Call Panning function by swiping Left/Right. Default Call Direction: Center Cycle Sequence (Left Swipe): Right > Center > Left Cycle Sequence (Right Swipe): Left > Center > Right
	Initiate Voice Assistant: Tap and hold for 2 secs to initiate voice assistant Incoming Call: Tap twice to answer incoming call Tap twice again to end call Initiate Playback: Tap twice to initiate playback Tap twice again to pause playback
	Mass Storage Mode: Tap and hold for 4 secs to enter Mass Storage mode Tap and hold for 4 secs again to exit Mass Storage mode Note: Switching on/off Mass Storage mode takes 15 secs. 2 short beeps will play when switching on/off. Shuffle Mode: Tap once to shuffle Voice Prompt: Shuffle On Shuffle Off Note: Only applicable to Micro SD card playback
