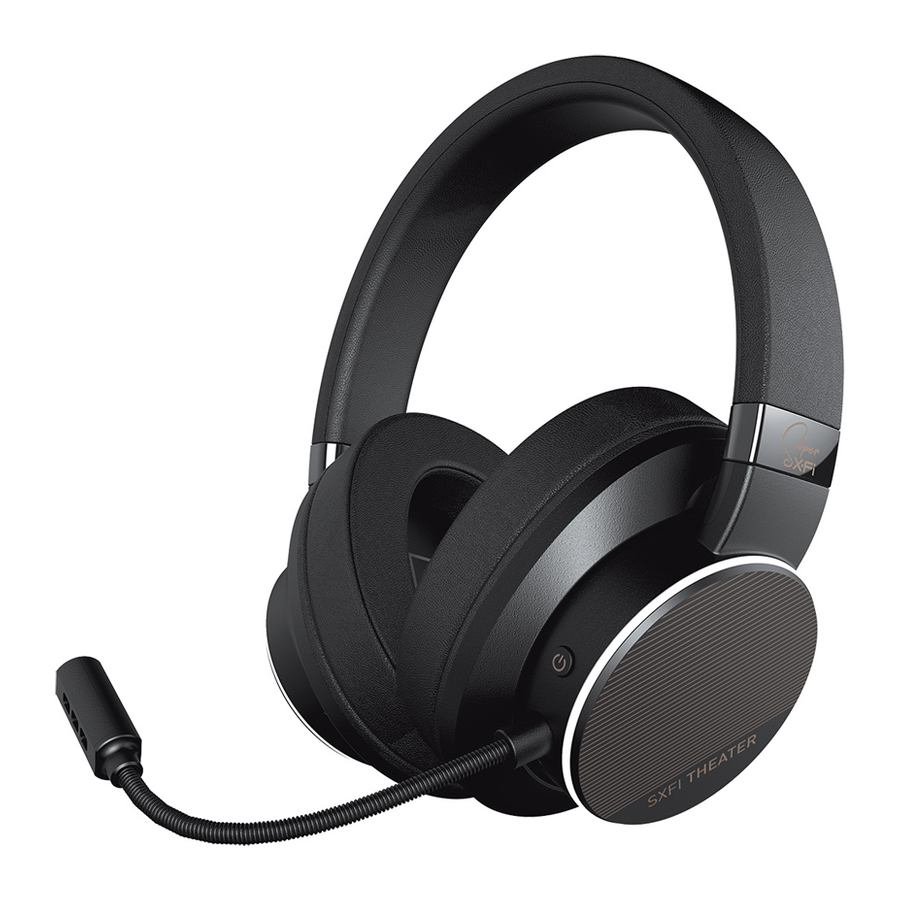

Creative SXFI THEATER - Super X-Fi Low-latency Wireless Headphones Manual

OVERVIEW

1. Soft Protein Leather Ear Pads
2. RGB LED Lighting
3. Power / Connect Button
4. Detachable Gaming Microphone
5. Super X-FI Button
6. Volume Control Dial
7. Mic Mute Button
8. 3.5 mm Analog Jack
9. USB-C Charging Port
10. SXFI TX Wireless Transmitter
11. USB Extension

Note:
SXFI THEATER is automatically paired to SXFI TX Wireless Transmitter out of the box

ENHANCE YOUR AUDIO

Unleash the performance of Super X-Fi Technology with the SXFI App and SXFI AIR Control App

Unlock the performance of your Creative SXFI THEATER on PC / Mac with SXFI Control.
For Windows users, download SXFI Control at support.creative.com.
For Mac users, download SXFI Control from Mac App Store.

POWER BUTTON

Power Button: Press and hold for 2 secs to switch headset on Press and hold for 2 secs again to switch headset off Press and hold the Power Button shortly to view battery level. When SXFI THEATER is switched off, RGB LED Lighting will flash twice in Red if battery level is low

RGB LED Lighting: White OR User's Color Setting

SUPER X-FI BUTTON

Super X-Fi Button: Press once to activate Super X-Fi Press once again to deactivate Super X-Fi Press and hold for 3 secs to switch RGB LED Lighting off Press and hold for 3 secs again to switch RGB LED Lighting on

RGB LED Lighting: Flashes once in Green when activated Flashes once in Orange when deactivated

MIC MUTE BUTTON

Mic Mute Button: Press once to enable Mic Mute Press once again to disable Mic Mute

Mic's Built-in LED Status Indicator:

		When Mic Mute is turned on, Mic's LED will light up. Voice prompt: Microphone off
		When Mic Mute is turned off, Mic's LED will not light up. Voice prompt: Microphone on

CHARGING SXFI THEATER

Charging SXFI THEATER when it is switched off

• Built-in LED will light up in Red
• Built-in LED will turn off when headset is fully charged

Note:

• Built-in LED is located below Gaming Microphone's port
• RGB LED Lighting will light up and indicate battery level when switched on
• When battery level is low, headset will prompt "Battery level is low, please charge your headset" every 10 minutes
• Headset will not switch on when battery level is too low
• Turns off automatically after 10 minutes of inactivity or after disconnecting from SXFI TX Wireless Transmitter for over 10 minutes
• Battery level is also indicated in SXFI AIR Control app for user's reference

MANUAL PAIRING

Manual Pairing is reserved for situations such as the use of a new SXFI TX Wireless Transmitter or during connection errors etc. and may result in the need to manually pair your headset to SXFI TX.

	Manual Pairing: Press and hold the Power Button for 8 secs. RGB LED Lighting will begin flashing rapidly in Blue Press and hold the Connect Button on SXFI TX for 3 secs. SXFI TX's built-in LED will begin flashing rapidly When both the headset and SXFI TX are paired successfully, the RGB LED Lighting on SXFI THEATER and the built-in LED on SXFI TX will stop flashing and stabilize	RGB LED Lighting: Flashing Blue OR User's Color Setting
		SXFI TX Wireless Transmitter's built-in LED: Search Mode - Pulsing Blue Pairing Mode - Flashing Blue Connected - User's Color Setting

FACTORY RESET

1. Switch on SXFI THEATER, then press and hold button for 8 secs. RGB LED Lighting will flash twice in Red
2. RGB LED Lighting will revert back to default color once Factory Reset is complete

   Voice Prompt: Reset to Factory Default
   Note: Factory Reset can also be completed on SXFI Control for PC / Mac

TECHNICAL SPECIFICATIONS

SXFI TX Wireless Transmitter

Model No.:	GH0380A
Operating Temperature:	0°C – 45°C / 32°F – 113°F
Wireless Range:	Up to 10m / 33 ft measured in open space. Walls and structures may affect range of device
Wireless Type:	Low-latency 2.4 GHz wireless technology, Bluetooth Low Energy (BLE)
Operating RF range:	2403.35 – 2479.35 MHz (for Low-latency 2.4 GHz), 2402 – 2480 MHz (for BLE)
Max. RF Output Power:	2 dBm (typical, for Low-latency 2.4 GHz), 4 dBm (for BLE)
Input:	5V 0.5A

SXFI THEATER HEADSET

Model No.:	GH0380B
Operating Temperature:	0°C – 45°C / 32°F – 113°F
Wireless Range:	Up to 10m / 33 ft measured in open space. Walls and structures may affect range of device
Wireless Type:	Low-latency 2.4 GHz wireless technology
Operating RF range:	2403.35 – 2479.35 MHz
Max. RF Output Power:	2 dBm (typical)
Input:	5V 1A
Charging Time:	3 hrs
Playtime:	Up to 30 hrs playback time (LED off)
Lithium-ion Battery:	3.7V 1300 mAh (4.81 Wh)

Headphones

• Driver: 50 mm Neodymium magnet
• Frequency Response: 20 Hz – 20 kHz
• Impedance: 32Ω
• Sensitivity: 114 dB / mW @ 1 kHz

Microphone

• Type: Unidirectional noise-reduction
• Frequency Response: 100 Hz – 8 kHz
• Impedance: < 2.2 kΩ
• Sensitivity: -42 dBV / Pa @ 94 dB SPL

OTHER INFORMATION

Please visit creative.com/compliance/sxfitheater for the user guide, safety and regulatory information, ErP information where applicable and battery removal instructions which is meant strictly for independently qualified professional. Please visit creative.com/support/sxfitheater for all other support related to your product.

Compliance markings can be seen on the surface upon removal of ear cup cushion which can be removed by hand.

Keep this document for future reference.

© 2019 Creative Labs Pte. Ltd. All rights reserved. Creative, the Creative logo, X-FI, SXFI and the Super X-Fi logo are trademarks or registered trademarks of Creative Technology Ltd in the United States and/or other countries. All other trademarks are the property of their respective owners and are hereby recognized as such. All specifications are subject to change without notice. Use of this product is subject to a limited hardware warranty. Actual contents may differ slightly from those pictured.

PN: 03GH038000000 REV A
