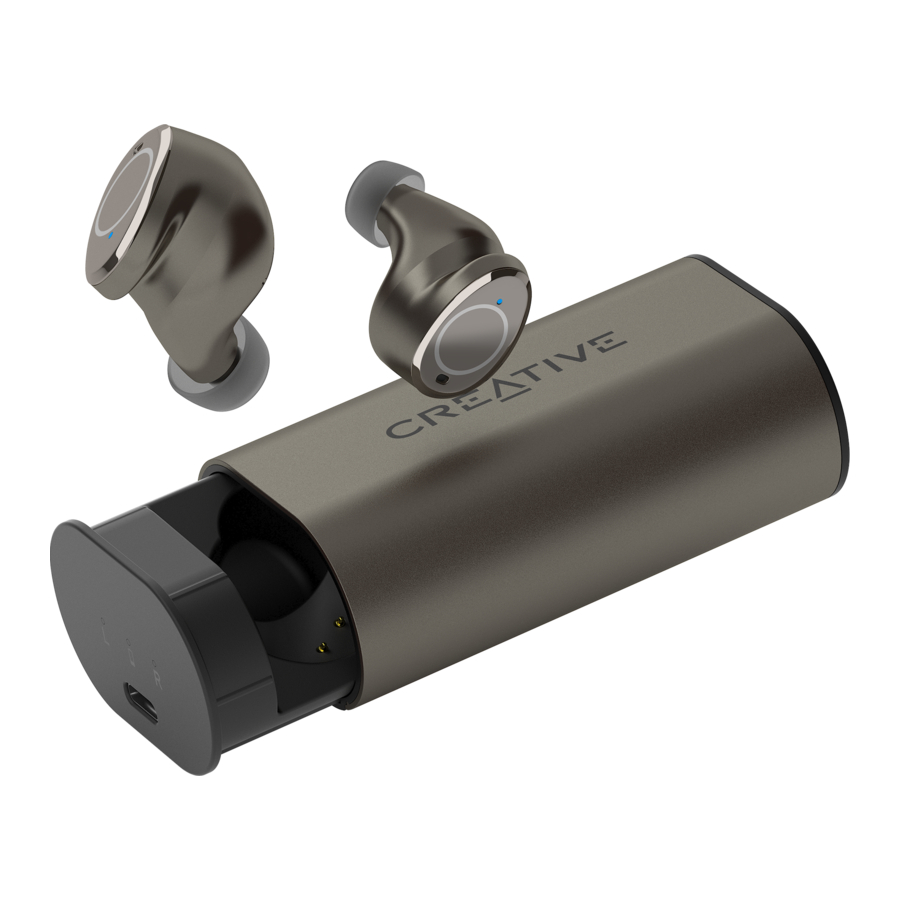

Creative Outlier Pro - True Wireless Sweatproof Earbuds with Hybrid ANC Manual

OVERVIEW

1. Charging Case Battery Indicator
   1. Charging Indicator

      Charging	Glowing Red
      Fully Charged	Solid Green

   2. Battery Level

      Low	Solid Red
      Medium	Solid Yellow
      High	Solid Green

2. Left Earbud Charging Indicator
3. USB-C Charging Port
4. Right Earbud Charging Indicator
   1. Earbuds Charging Indicator

      Charging	Glowing Red
      Fully Charged	Solid Green

5. Earbuds LED Indicator

   Bluetooth® Pairing	Blinking Red and Blue
   Charging	Glowing Red (In Charging Case)
   Fully Charged	LED Off

CONTROLS

Playback Mode

Note: Certain playback functions can be customized through the Creative app when connected via Bluetooth

Entering Bluetooth Pairing Mode Manually

Note: The earbuds can only manually enter Bluetooth Pairing mode when no audio is being played. Tap and hold either earbud for 3s to enter Bluetooth Pairing mode

Call Mode

Note: Volume adjustments on the earbuds are unavailable during incoming / outgoing calls

Powering On / Off Earbuds Manually

	OFF
	ON

CREATIVE APP

Set up your product, customize playback controls, personalize audio settings, enhance product's performance, and more with the Creative app.

• Customize buttons for personalized playback experience
• Adjust noise control level through Ambient Mode and Active Noise Cancellation
• Modify audio settings with Graphic EQ
• Perform software upgrades, product registration, and more

Download the Creative App from:

iOS App Store

Google Play Store

EARBUDS FIT GUIDE

Gently push and wiggle the earbuds into the respective ear canal until a good seal is made to ensure proper fitting. Additional pairs of silicone tips are also provided so users can achieve an optimal fit.

CHARGING CREATIVE OUTLIER PRO WIRELESSLY

Creative Outlier Pro supports Qi-enabled wireless charging. To charge both the charging case and earbuds wirelessly, slot the earbuds into the case's magnetic charging slots, then place the charging case on the wireless charging pad*. Do note that the earbuds cannot be charged wirelessly without its charging case.

*Wireless charging pad not included

MASTER RESET

Touch both earbuds and hold for 5s while they are in the charging case to perform a Master Reset. Upon completion, earbuds will blink three times in blue. Master Reset is reserved for cases where users encounter issues while earbuds are in use or during situations such as: Bluetooth Pairing failure, random LED blinking, failure to pair secondary earbud with the main earbud, or to reset all data.

Common Connectivity Issues

This article highlights a phenomena and recommendation for music cutting out and earbuds that do not stay connected.

When pairing a smart mobile device with the earbuds, the signal is strongest when there is a line-of-sight between the pairing devices.

If the signal passes through the body, which is mostly made up of water fluid, it may get absorbed, which may result in pairing difficulty. If the mobile device is already connected to the earbuds, it may result in signal lost or the earbuds may get disconnected.

TECHNICAL SPECIFICATIONS

Headphones Drivers

• 10 mm Graphene-coated Drivers x 2
• Frequency Response: 20–20,000 Hz

Microphones

• Type: Omni-directional x 6
• MEMS
• Frequency Response: 100–10,000 Hz
• Sensitivity (1 kHz): -38 dBV / Pa

Interface

• Qi-compatible wireless charging, USB-C (charging)

Bluetooth Version

• Bluetooth 5.2

Bluetooth Profiles

• A2DP (Wireless stereo Bluetooth)
• AVRCP (Bluetooth remote control)
• HFP (Hands-free profile)

Wireless Operating Range

• Up to 10m / 33 ft
• Maximum RF Output Power: 6 dBm
• Operating Frequency: 2402–2480 MHz

Battery

• Earbuds (Left and Right)
  Lithium-ion polymer battery: 3.6V 85 mAh 0.306 Wh
• Battery Charging Case
  Lithium-ion polymer battery: 3.7V 900 mAh 3.330 Wh

Input Rating

• 5V 1A

Total Playtime

• Up to 60 hours

Charging Time

• 2–3 hours (Wired / wireless charging)

Audio Codecs

• AAC, SBC

Operating Temperature

• 0–45°C

OTHER INFORMATION

Please visit creative.com/compliance/OutlierPro for the user guide, safety and regulatory information, ErP information where applicable and battery removal instruction which is meant strictly for independently qualified professional.

Please visit creative.com/support/OutlierPro for all other support related to your product.

Note: Compliance markings are located at the bottom of the product

PN: 03EF093000000 Rev B
