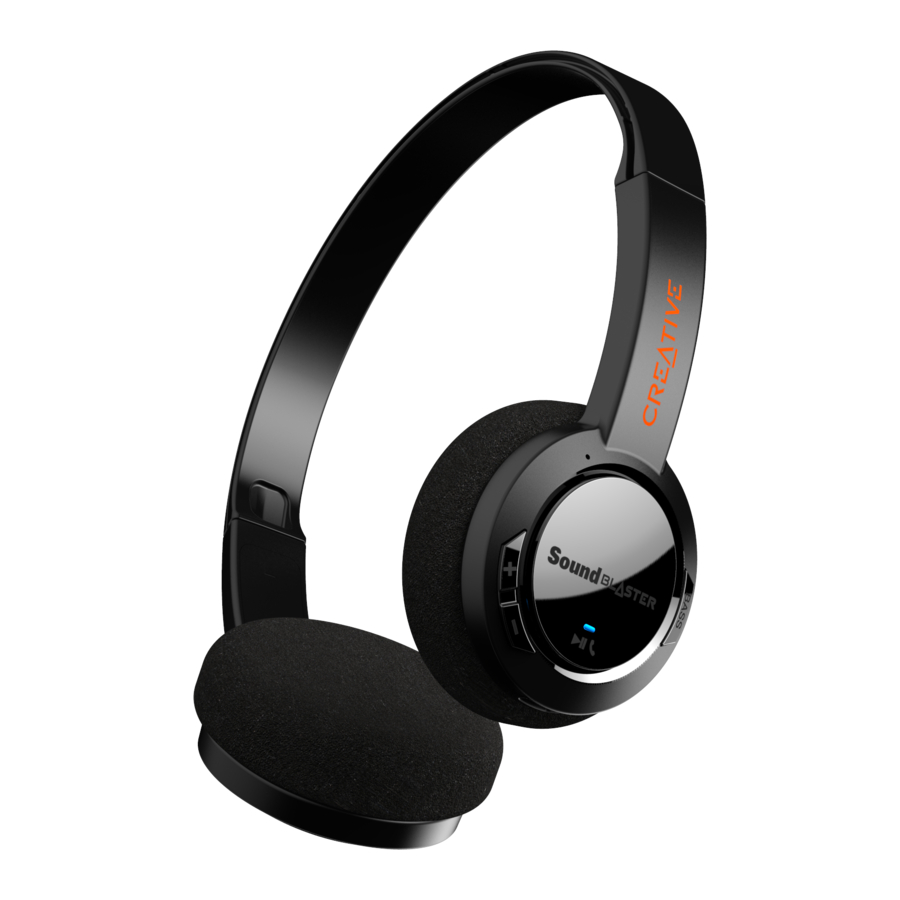

Creative Sound Blaster JAM V2 - Bluetooth Headphones with Multipoint Manual

OVERVIEW

1. Multifunction Button
2. Volume + Button
3. Volume - Button
4. USB-C Port
5. Bass Boost Button
6. Microphones
7. LED Indicator

Note:

• It is recommended to charge your headset before its first use. Connect the headphones to a computer via USB or any available USB power adapter to start charging
• Press and hold on the Multifunction button for 2s to power on / off the headphones
• Connect to an Android or iOS mobile device via Bluetooth^® to check headset's battery status

BLUETOOTH PAIRING / CONNECTING TO AUDIO SOURCE DEVICE

Wireless Pairing

1. Press and hold the Multifunction button for 4s when headset is powered off to initiate Bluetooth pairing
2. On your mobile device, turn Bluetooth on and select "Sound Blaster JAM V2" from the list of discovered Bluetooth devices to pair

Multipoint Pairing

1. Disconnect the headset from the first mobile device before initiating Bluetooth pairing to a second mobile device
2. Once paired to the second mobile device, power off, then power on the headset, and ensure Bluetooth is switched on across both mobile devices to achieve multipoint connection

Wired Connection

Note: Bluetooth mode is not available when Sound Blaster JAM V2 is connected to a USB audio source

LED BEHAVIOR

LED Behavior	Activity
Blinks twice in red	Headset has been powered off
Blinks twice rapidly in blue	Reconnecting to last paired mobile device
Blinks in alternating red / blue	Bluetooth Pairing mode
Blinks slowly in blue	Headset is paired and connected to a mobile device
Blinks in red	Headset's battery is low (< 10%)
Glows in red*	Headset is charging
Solid red*	Headset is fully charged
Solid green	USB mode

^*When headset is powered off

CONTROLS

Playback Mode

1. Multifunction Button
2. Volume + Button
3. Volume - Button
4. Volume + and Volume - Button

Call Mode

1. Multifunction Button ^*Redial function is accessible only when audio playback is paused
2. Volume + Button Transfer a call from the headset to the mobile device
3. Volume - Button

Bluetooth Mode

1. Bass Boost Button

USB Audio Mode

1. Bass Boost Button
   Do not wear the headphones with the volume set too high for prolonged periods of time as this will damage your hearing and may lead to hearing loss

CREATIVE APP

Set up your product, personalize audio settings, enhance your product's performance, and more with the Creative app^*.

• Access and control our all-new SmartComms Kit's suite of smart communication features such as VoiceDetect, NoiseClean-in, and NoiseClean-out to improve your online calls experience
• Enjoy the ability to customize Graphic EQ
• Configure playback and microphone settings
• Perform software upgrades, product registration, and more

^*The Creative app and SmartComms Kit are currently available on Windows platform via USB audio playback only

MASTER RESET

Master reset is reserved for scenarios where users encounter problems such as Bluetooth pairing problems or other connectivity issues. Follow the steps below to reset your Sound Blaster JAM V2:

• Press and hold Volume +, Volume -, and Multifunction buttons simultaneously for 8s to reset the headphones back to factory settings

• Upon successful reset, the headset will power off. The headset will automatically initiate Bluetooth pairing mode when powered on after master reset

TECHNICAL SPECIFICATIONS

Product Type
Bluetooth Headset

Headphone Drivers

• 32 mm Neodymium Driver
• Frequency Response: 20–20,000 Hz

Microphones
Type: Omni-directional x 2

Bluetooth Version
Bluetooth 5.0

Bluetooth Profiles

• A2DP (Wireless Stereo Bluetooth)
• AVRCP (Bluetooth Remote Control)
• HFP (Hands-free Profile)

Audio Codec
SBC, aptX, aptX HD, aptX LL

Multipoint Support
Yes (Up to two mobile devices simultaneously)

Wireless Operating Range
Up to 15m / 49 ft

Wireless Frequency
2.4 GHz

Operating Frequency
2402–2480 MHz

Operating Temperature
0–45°C

Voice Assistant Support
Siri and Google Assistant

Battery Type
Rechargeable Lithium
Polymer Battery 200 mAh x 1

USB Audio Support
Yes (Audio and Microphone)

Playtime
Up to 22 hours per charge

Charging Interface
USB-C (Charging)

Charging Time
1–2 hours

Input
5V 500 mA

RF Output Power
< 4 dBm

Product Registration

Registering your product ensures you receive the most appropriate service and product support available. You can register your product at www.creative.com/register. Please note that your warranty rights are not dependent on registration.

Other Information

Please visit creative.com/compliance/sbjamv2 for user guide, safety and regulatory information and battery removal instruction, which is meant strictly for independently qualified professional.

Visit support.creative.com to resolve and troubleshoot technical queries at Creative's 24-hour self-help Knowledge Base. You can also find Customer Support Services and other helpful information here.

PN: 03EF095000000 Rev A
