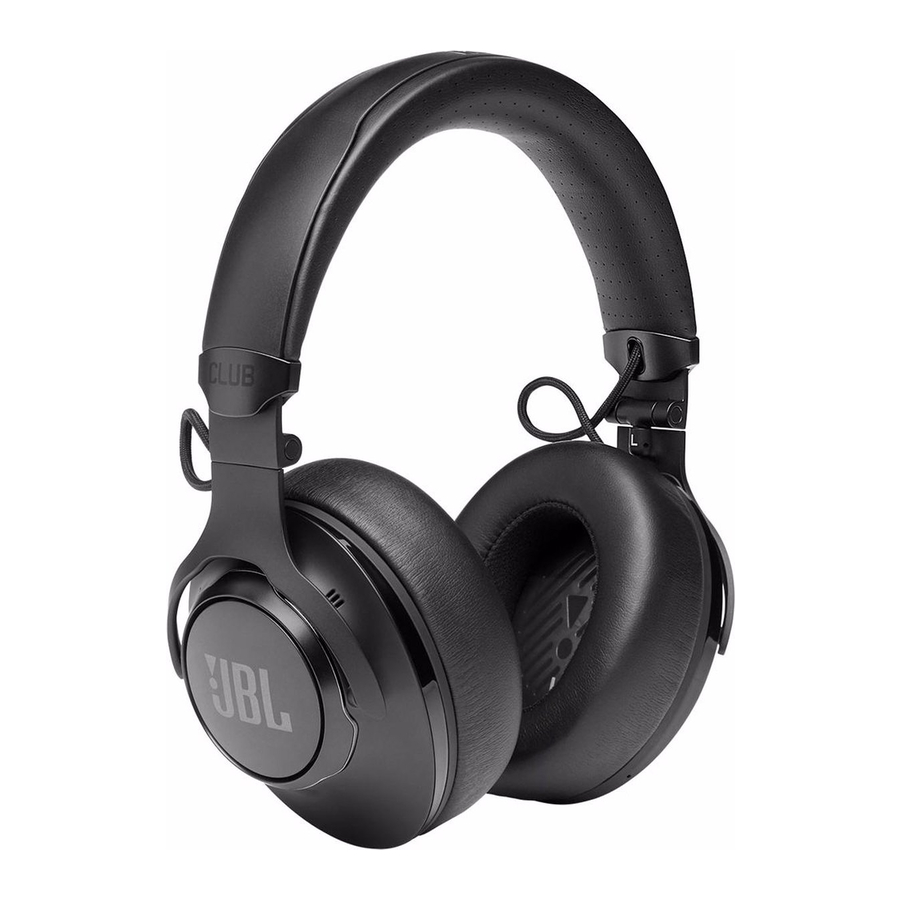

JBL CLUB 950NC Quick Start Guide
What's in the box
App
JBL Headphones
GET EVEN MORE CONTROL AND PERSONALIZATION OF YOUR LISTENING EXPERIENCE WITH THIS FREE APP.
Power on & connect
Button command
Ambient aware/talkthru
Multi-point connection
Charging
LED behaviors
Tech Spec
| Driver size: | 40 mm dynamic driver |
| Frequency response (Passive): | 16 Hz - 40 kHz |
| Frequency response (Active): | 16 Hz - 22 kHz |
| Sensitivity: | 93 dB SPL @ 1 kHz / 1 mW |
| Maximum SPL: | 91 dB |
| Maximum input power (Passive): | 2000 mW |
| Microphone sensitivity: | -24 dBV @ 1 kHz / Pa |
| Impedance: | 32 ohm |
| Bluetooth transmitted power: | <6 dBm |
| Bluetooth transmitted modulation: | GFSK, π/4 DQPSK, 8DPSK |
| Bluetooth frequency: | 2.402 GHz - 2.480 GHz |
| Bluetooth profile version: | A2DP 1.3, AVRCP 1.5, HFP 1.6 |
| Bluetooth version: | V5.0 |
| Battery type: | LITHIUM ION POLYMER BATTERY (3.7 V / 730 mAh) |
| Power supply: | 5 V  1 A |
| Charging time: | <2 hrs |
| Music play time with BT on: | 55 hrs |
| Music play time with BT & ANC on: | up to 25 hrs |
| Music play time with Aux-in & ANC on: | up to 30 hrs |
| Weight: | 372 g |
Compliance information on ear cup
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
Google and Google Play are trademarks of Google LLC.
HP_JBL_CLUB950NC_QSG_CR_V25
