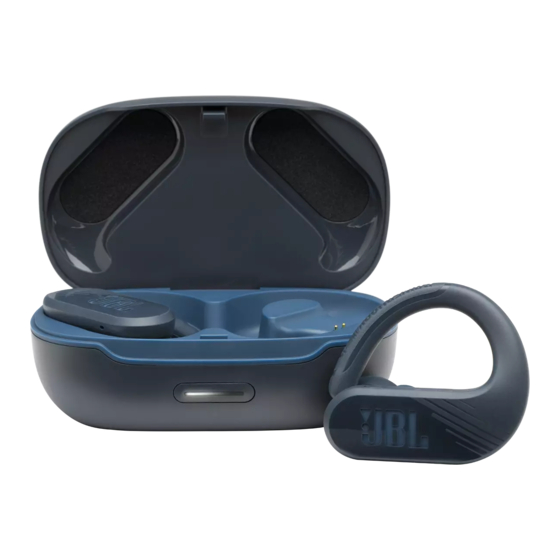

JBL Endurance Peak 2 Manual

WHAT'S IN THE BOX

HOW TO WEAR

ATTACH EAR TIPS AND ENHANCERS

MIX AND MATCH FOR A PERFECT FIT AND AUDIO PERFORMANCE

TWISTLOCK™ TECHNOLOGY

ADJUST EAR HOOK

WEAR AND PULL DOWN EAR HOOK FOR SECURE FIT

FIRST TIME USE

POWER ON & CONNECT

PAIRING

POWER OFF

MANUAL CONTROLS

BUTTON COMMAND

CHARGING

WATERPROOF IPX7

LED BEHAVIORS

TECH SPEC

Model: Endurance Peak II
Driver Size: 10 mm/0.4" Dynamic Driver
Power supply: 5.0 V ⎓ 1 A
Earpiece: 13 g per pc (26 g combined)/0.03 lbs per pc (0.06 lbs combined)
Charging case: 77 g/0.17 lbs
Headset battery type: Lithium-ion Battery (60 mAh/3.7 V)
Charging case battery type: Lithium-ion Battery (770 mAh/3.7 V)
Charging time: < 2 hrs from empty
Music playtime with BT on: 6 hrs
Frequency Response: 20 Hz - 20 kHz
Impedance: 16 ohm
Sensitivity: 95 dB SPL@1 kHz
Maximum SPL: 95 dB SPL
Microphone sensitivity: -38 dBV/Pa@1 kHz
Bluetooth version: 5.0
Bluetooth profile version: A2DP 1.3 AVRCP 1.5 HFP 1.7
Bluetooth transmitter frequency range: 2.4 GHz – 2.4835 GHz
Bluetooth transmitter power: < 13 dBm
Bluetooth transmitter modulation: GFSK, π/4 QPSK, 8DPSK

IC RF Exposure Information and Statement
The SAR limit of Canada (C) is 1.6 W/kg averaged over one gram of tissue. Device types: (IC: 6132A-JBLENPEAK2) has also been tested against this SAR limit According to this standard, the highest SAR value reported during product certification for head use is 0.6712 W / kg. The device was tested for typical bodily operations where the product was kept 0 mm from the head. To maintain compliance with IC RF exposure requirements, use accessories that maintain a separation distance of 0mm between the user's head and the back of the headset. The use of belt clips, holsters and similar accessories shall not contain metal parts in its assembly. Use of accessories that do not meet these requirements may not comply with IC RF exposure requirements and should be avoided.

Head operation
The device was subjected to a typical head manipulation test. In order to comply with RF exposure requirements, a minimum separation distance of 0 cm must be maintained between the user's ear and the product (including the antenna). Head exposure that do not meet these requirements may not meet RF exposure requirements and should be avoided. Use only the supplied or approved antenna.

IC: 6132A-JBLENPEAK2

Maximum operation temperature: 45°C

The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
