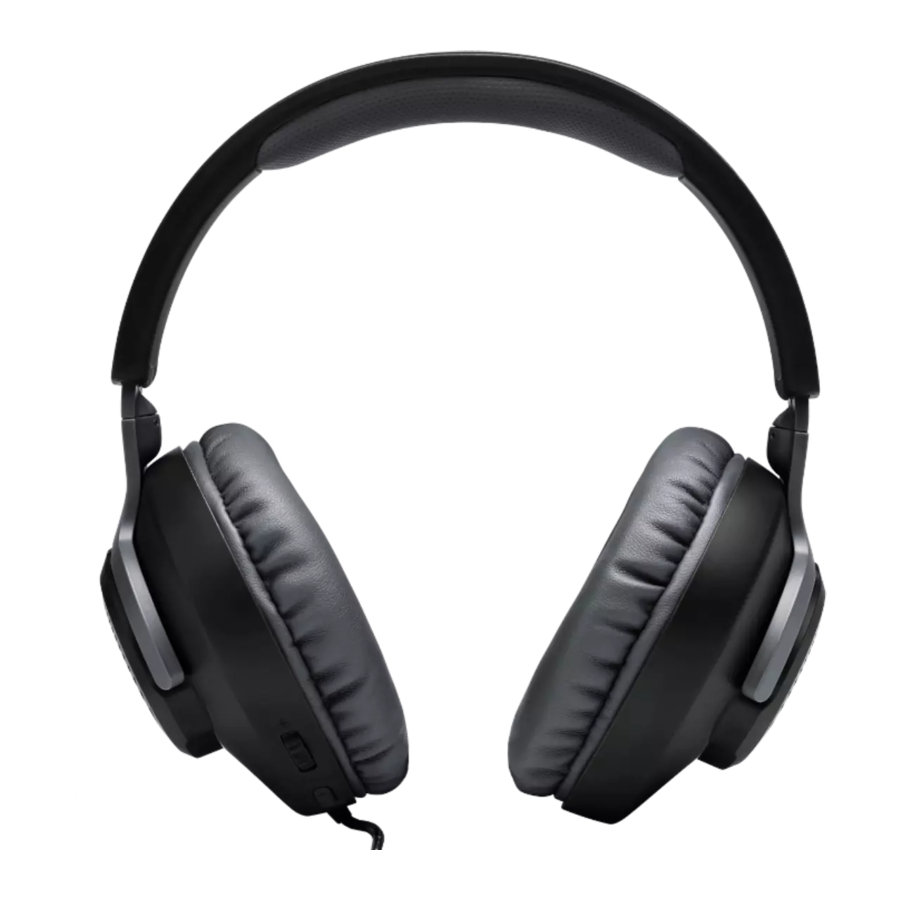

JBL Free WFH Wireless Manual
WHAT'S IN THE BOX
OVERVIEW
- Volume Control
- Microphone Mute / unMute
- CHARGING LED
- USB-C port
- 2.5mm jack for boom microphone
- Flat-fold ear cup
- POWER / 2.4G LED
- POWER ON / OFF slider
- 2.4G PAIRING BUTTON
- 2.4G LED
POWER ON & CONNECT
BUTTON COMMAND
MICROPHONE
CHARGING
LED BEHAVIOURS
TECH SPEC
| Driver size: | 40 mm Dynamic Drivers |
| Frequency response: | 20 Hz - 20 kHz |
| Microphone frequency response: | 100 Hz - 10 kHz |
| Sensitivity: | 115 dB SPL @1 kHz |
| Maximum SPL: | 93 dB |
| Microphone sensitivity: | -42 dBV/Pa @1 kHz |
| Impedance: | 32 ohm |
| 2.4G Wireless transmitter power: | <10 dBm/MHz & <20 dBm |
| 2.4G Wireless modulation: | GFSK |
| 2.4G Wireless carrier frequency: | 2402 MHz - 2480 MHz |
| Battery type: | Li-ion battery (3.7 V / 500 mAh) |
| Power supply: | 5 V 1A |
| Charging time: | 2 hrs |
| Music play time: | 16 hrs |
| Microphone pickup pattern: | Omni-directional |
| Weight: | 252 g |
Documents / ResourcesDownload manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
