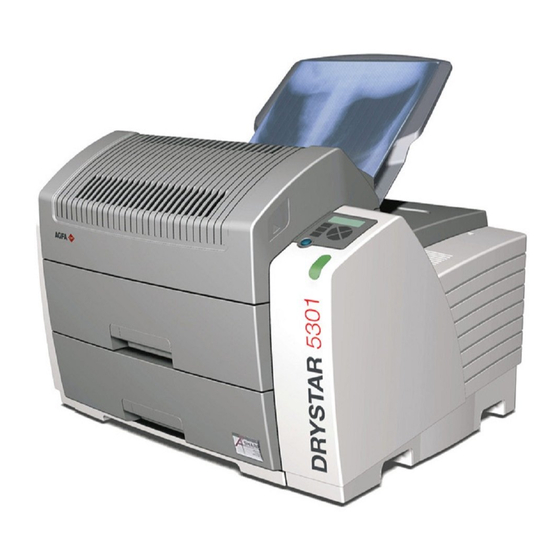

AGFA Drystar 5301 User Manual
  1. Manuals
  2. Brands
  3. AGFA Manuals
  4. Printer
  5. Drystar 5301
  6. User manual

AGFA Drystar 5301 User Manual

Hide thumbs Also See for Drystar 5301:
Table of Contents

Advertisement

Quick Links

Download this manual
Drystar 5301, Drystar 5302
5366/110
5366/100
User Manual
2831E EN 20161128 1410

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Drystar 5301 and is the answer not in the manual?

Questions and answers

Related Manuals for AGFA Drystar 5301

Summary of Contents for AGFA Drystar 5301

  • Page 1 Drystar 5301, Drystar 5302 5366/110 5366/100 User Manual 2831E EN 20161128 1410...

  • Page 2: Table Of Contents

    2 | Drystar 5301, Drystar 5302 | Contents Contents Legal Notice ................5 About the safety notices in this document ......6 Drystar 5301, Drystar 5302 ............7 Scope .................8 Intended use ..............9 Available Software versions ........10 Film types ..............11 Labeling the input trays ........11...
  • Page 3 Drystar 5301, Drystar 5302 | Contents | 3 Key-operator mode ........50 Service mode ..........51 Specialist mode ..........52 Administrator mode ........53 The local user interface ..........54 Messages ............. 56 The status indicator LED ......57 The control buttons ........58 Rear panel ...........
  • Page 4 4 | Drystar 5301, Drystar 5302 | Contents Quality Control Charts ............111 Plug & Play Installation Manual ..........116 Contents of the packages ........117 Remove the packing materials ........118 Remove the printer from the pallet ......120 Unpack the accessories ..........

  • Page 5: Legal Notice

    Agfa and the Agfa rhombus are trademarks of Agfa-Gevaert N.V., Belgium or its affiliates. Drystar is a trademark of Agfa HealthCare N.V., Belgium or one of its affiliates. All other trademarks are held by their respective owners and are used in an editorial fashion with no intention of infringement.

  • Page 6: About The Safety Notices In This Document

    6 | Drystar 5301, Drystar 5302 | About the safety notices in this document About the safety notices in this document The following samples show how warnings, cautions, instructions and notes appear in this document. The text explains their intended use.

  • Page 7: Drystar 5301, Drystar 5302

    Drystar 5301, Drystar 5302 | Drystar 5301, Drystar 5302 | 7 Drystar 5301, Drystar 5302 Topics: • Scope • Intended use • Available Software versions • Film types • Specifications • Disclaimer 2831E EN 20161128 1410...

  • Page 8: Scope

    Refer to the reference manual of the printer for information for the advanced operation of the printer. This manual appies to two printer models: Drystar 5301 and Drystar 5302. The further chapters describe Drystar 5302. All information applies equally to...

  • Page 9: Intended Use

    10x12 inch, 11x14 inch, 14x14 inch and 14x17 inch) of blue-based (Drystar DT 2 B) and clear-based (Drystar DT 2 C) film and offers crisp, dense grayscale images. The Drystar 5301 and Drystar 5302 can be used for general radiography only. They cannot be used for the mammography application.

  • Page 10: Available Software Versions

    10 | Drystar 5301, Drystar 5302 | Drystar 5301, Drystar 5302 Available Software versions The table below lists the available software versions and the type of printer they require: Software version Printer (SW) 1.8.x supports Drystar 5302 1.9.x supports Drystar 5302 (RoHS compliant) supports both Drystar 5302 &...

  • Page 11: Film Types

    Drystar 5301, Drystar 5302 | Drystar 5301, Drystar 5302 | 11 Film types Film type Film base Application Film sizes Average optical density (X-Rite 310 densitometer) blue- General 8x10”, DT 2 B transparent Radiography 10x12”, DT 5000 B 11x14”, 14x14”, and DT 5000I B 14x17”...
  • Page 12 12 | Drystar 5301, Drystar 5302 | Drystar 5301, Drystar 5302 2831E EN 20161128 1410...

  • Page 13: Specifications

    Drystar 5301, Drystar 5302 | Drystar 5301, Drystar 5302 | 13 Specifications Product description Type of product Printer Commercial name Drystar 5301 Drystar 5302 Original seller/manufacturer Agfa HealthCare N.V. Labelling TÜV-, TÜV cNRTLus-Certification Mark, CE-marking Dimensions Dimensions (approx. values in •...
  • Page 14 14 | Drystar 5301, Drystar 5302 | Drystar 5301, Drystar 5302 Network protocols (TCP/IP FTP, Telnet, HTTP services) Image formats DICOM (Default) TIFF Postscript Not available Power consumption - heat dissipation During operation 250 W - 900 kJ/h In stand-by 70 W - 252 kJ/h Peak power (absolute max.
  • Page 15 Drystar 5301, Drystar 5302 | Drystar 5301, Drystar 5302 | 15 Temperature Between -40°C and 70°C (transport) Relative humidity not combined 95% at +45°C with rapid temperature changes Noise emission (method of measurement in accordance with DIN 45635 part 19) During operation Max.
  • Page 16 16 | Drystar 5301, Drystar 5302 | Drystar 5301, Drystar 5302 14x14” 14” dimensions 14” dimensions pixels pixels 4358 346.03 4303 341.66 14x17” 14” dimensions 17” dimensions pixels pixels 4358 346.03 5232 415.42 2831E EN 20161128 1410...

  • Page 17: Disclaimer

    Drystar 5301, Drystar 5302 | Drystar 5301, Drystar 5302 | 17 Disclaimer Agfa assumes no liability for use of this document if any unauthorized changes to the content or format have been made. Every care has been taken to ensure the accuracy of the information in this document.

  • Page 18: Introduction

    18 | Drystar 5301, Drystar 5302 | Introduction Introduction Topics: • Intended user • Features • Equipment Classification • Safety precautions • Security precautions • Installation • Training • Product Complaints • Compliance • Connectivity • Labels • Power cord regulations •...

  • Page 19: Intended User

    Drystar 5301, Drystar 5302 | Introduction | 19 Intended user This manual is written for trained users. Users are considered as the persons who actually handle the equipment as well as the persons having authority over the equipment. Before attempting to work with this equipment, the user must read, understand, note and strictly observe all warnings, cautions and safety markings on the equipment.

  • Page 20: Features

    20 | Drystar 5301, Drystar 5302 | Introduction Features Note: The printer is a DICOM-only network printer. The printer offers the following features: • Dry technology for printing diagnostic quality hard copies in full daylight offers important advantages: no chemistry, no wet processing, simple cleaning procedures, no time-consuming adjustments, no darkroom and no chemical disposal costs.
  • Page 21 Drystar 5301, Drystar 5302 | Introduction | 21 A#Sharp label Topics: • Network features • Software license information • Options and accessories 2831E EN 20161128 1410...

  • Page 22: Network Features

    22 | Drystar 5301, Drystar 5302 | Introduction Network features • The modular design offers optimal application to your specific networking requirements. • The functionality is completely controlled via the network. • You can control the printer via the local keypad or via a remote PC featuring a browser functionality.

  • Page 23: Equipment Classification

    Drystar 5301, Drystar 5302 | Introduction | 23 Equipment Classification This device is classified as following: Table 2: Equipment classification Class I equipment Equipment in which protection against electric shock does not relay on basic insulation only, but includes a power supply cord with protective earth conductor.

  • Page 24: Safety Precautions

    24 | Drystar 5301, Drystar 5302 | Introduction Safety precautions WARNING: Safety is only guaranteed when trained personnel have installed the printer. WARNING: All medical products must be used by trained and qualified personnel. WARNING: The printer must only be operated according to its specifications and its intended use.
  • Page 25 Drystar 5301, Drystar 5302 | Introduction | 25 WARNING: When operating or maintaining the printer, always observe the following safety guidelines: • Have electrical or mechanical defects repaired by skilled personnel only! • Do not modify this equipment without authorization of the manufacturer.

  • Page 26: Labels

    26 | Drystar 5301, Drystar 5302 | Introduction Labels Always take into account the markings provided on the inside and outside of the printer. A brief overview of these markings and their meaning is given below. Safety warning, indicating that the user manuals of the printer should be consulted before making any connections to other equipment.
  • Page 27 Drystar 5301, Drystar 5302 | Introduction | 27 Provides a connection between the printer and the protective earth of the mains. Do not remove this connection, because this will have a negative influence on the leakage current. Power button: Note that the power cord has to be disconnected from the wall outlet in order to disconnect the unit entirely from the mains.
  • Page 28 28 | Drystar 5301, Drystar 5302 | Introduction Hot Surface Warning Indicates that touching the part indicated can cause burns. Laser Warning Indicates the presence of a laser device. Do not sit Warning Indicates that sitting on a component can cause damage to the equipment.

  • Page 29: Transport After Installation

    Drystar 5301, Drystar 5302 | Introduction | 29 Transport after installation WARNING: Before moving the printer, always switch off the machine. WARNING: The printer must only be transported with all covers closed. Remove Drystar 5301, Drystar 5302 from pallet WARNING: Do not lift the printer by the output tray.
  • Page 30 30 | Drystar 5301, Drystar 5302 | Introduction The printer should be transported by 3 persons or if not possible with 2. Refer to the Installation manual for more information. Transporting the printer 1. Switch off the printer. 2. Disconnect the cables.

  • Page 31: Environmental Protection

    Drystar 5301, Drystar 5302 | Introduction | 31 Environmental protection Figure 3: WEEE symbol Figure 4: Battery symbol WEEE end user notice The directive on Waste Electrical and Electronic Equipment (WEEE) aims to prevent the generation of electric and electronic waste and to promote the reuse, recycling and other forms of recovery.

  • Page 32: Restriction Of The Use Of Certain Hazardous Substances (Rohs)

    32 | Drystar 5301, Drystar 5302 | Introduction Restriction of the Use of Certain Hazardous Substances (RoHS) The RoHS (Restriction of Hazardous Substances) Directive No 2002/95/EC of the European Union focuses on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

  • Page 33: Security Precautions

    Drystar 5301, Drystar 5302 | Introduction | 33 Security precautions WARNING: Printed images should be treated as patient records and should only be viewed by authorized personnel. WARNING: It is good practice not to delete images from the modality, until they are correctly printed.

  • Page 34: Installation

    34 | Drystar 5301, Drystar 5302 | Introduction Installation The printer installation and configuration is performed by the local support organization. A limited number of configuration tasks can also be performed by the customer after a training course has been provided. Contact your local support organization for more information.

  • Page 35: Training

    Drystar 5301, Drystar 5302 | Introduction | 35 Training The user must have received adequate training on the safe and effective use of the system before attempting to work with it. Training requirements may vary from country to country. The user must make sure that training is received in accordance with local laws or regulations that have the force of law.

  • Page 36: Product Complaints

    If the device malfunctions and may have caused or contributed to a serious injury, Agfa must be notified immediately by telephone, fax or written correspondence to the following address: Agfa Service Support - local support addresses and phone numbers are listed on www.agfa.com Agfa - Septestraat 27, 2640 Mortsel, Belgium...

  • Page 37: Compliance

    Drystar 5301, Drystar 5302 | Introduction | 37 Compliance Topics: • General • Safety • Radio-interference regulations (interference suppression) • Seismic (earthquake) requirements 2831E EN 20161128 1410...

  • Page 38: General

    38 | Drystar 5301, Drystar 5302 | Introduction General • The product has been designed in accordance with the MEDDEV Guidelines relating to the application of Medical Devices and has been tested as part of the conformity assessment procedures required by 93/42/ EEC Medical Device Directive (European Council Directive 93/42/EEC on Medical Devices).

  • Page 39: Seismic (Earthquake) Requirements

    Drystar 5301, Drystar 5302 | Introduction | 39 Seismic (earthquake) requirements The printer meets the CA (Californian) requirements. 2831E EN 20161128 1410...

  • Page 40: Connectivity

    40 | Drystar 5301, Drystar 5302 | Introduction Connectivity The printer must only be used in combination with other equipment or components if these are expressly recognized by the manufacturer as compatible. A list of such equipment and components is available from your local service representative on request.

  • Page 41: Labels

    Drystar 5301, Drystar 5302 | Introduction | 41 Labels Type label with CE and TÜV cNRTLus labels SFDA label Topics: • Viewing the System info area on a film Viewing the System info area on a film General radiography applications On the top right corner of each film, a “System info”...
  • Page 42 42 | Drystar 5301, Drystar 5302 | Introduction • The controller (image source, date, time, etc.). For more detailed information, refer to the Service documentation. 2831E EN 20161128 1410...

  • Page 43: Power Cord Regulations

    Drystar 5301, Drystar 5302 | Introduction | 43 Power cord regulations • Use attached power cord set to the product. • Do not use attached power cord set for other electric equipment. 2831E EN 20161128 1410...

  • Page 44: Patient Data Security

    44 | Drystar 5301, Drystar 5302 | Introduction Patient data security The user must ensure that the patients’ legal requirements are met and that the security of the patient data is guarded. The user must define who can access patient data in which situations.

  • Page 45: Privacy And Security

    Drystar 5301, Drystar 5302 | Introduction | 45 Privacy and security Within the health care industry, several standardization efforts are ongoing as a response to Privacy and Security legislation and regulations. The purpose of this standardization for hospitals and vendors is to enable information sharing, interoperability and to support the workflow of hospitals in a multiple vendor environment.

  • Page 46: Node Authentication, Certificates And Certification Authority

    46 | Drystar 5301, Drystar 5302 | Introduction Node authentication, certificates and Certification Authority Each device - connected to a network - will receive a unique identifier: the X. 509 certificate, a digital passport. Any device on the network is only allowed to communicate with another node of which it is holding the certificate in a ‘communication allowed’...

  • Page 47: Operating Modes

    Drystar 5301, Drystar 5302 | Introduction | 47 Operating modes The printer can be operated in five modes: operator mode, Keyoperator mode, service mode, specialist mode, and administrator mode. Topics: • Control modes (local and remote) • Operator mode •...

  • Page 48: Control Modes (Local And Remote)

    48 | Drystar 5301, Drystar 5302 | Introduction Control modes (local and remote) You can control the working of the printer via the local keypad or via a networked remote PC. The table below gives an overview of the operating modes you can access locally and/or via the remote PC.

  • Page 49: Operator Mode

    Drystar 5301, Drystar 5302 | Introduction | 49 Operator mode The operator mode groups all basic functions which are aimed at radiographers without special technical skills: • Producing diagnostic usable hardcopies; • Loading consumables; • Ensuring normal operation of the printer.

  • Page 50: Key-Operator Mode

    50 | Drystar 5301, Drystar 5302 | Introduction Key-operator mode The Key-operator mode groups advanced functions which are aimed at technically skilled operators such as X-ray operators, network managers and service and hospital technicians. The Key-operator mode is menu-driven. The Key-operator functions are described in the Reference manual only.

  • Page 51: Service Mode

    Drystar 5301, Drystar 5302 | Introduction | 51 Service mode The service mode functions are reserved for trained service personnel. The service mode is password protected. Acces is possible via the local keypad and via a connected remote PC. In both cases the service personnel needs a password.

  • Page 52: Specialist Mode

    52 | Drystar 5301, Drystar 5302 | Introduction Specialist mode The specialist mode functions are reserved for trained service personnel of the Customer Support Center. The specialist mode is password protected and is only accessible by browser via a remote PC.

  • Page 53: Administrator Mode

    Drystar 5301, Drystar 5302 | Introduction | 53 Administrator mode The Administrator mode functions are reserved for the System Administrator. The Administrator mode is password protected and is only accessible by browser via a remote PC. 2831E EN 20161128 1410...

  • Page 54: The Local User Interface

    54 | Drystar 5301, Drystar 5302 | Introduction The local user interface The printer interfaces with the user via the following controls: • Power/Reset button; • a keypad and a display; • a status indicator LED; • audio signals. Power/Reset button...
  • Page 55 Drystar 5301, Drystar 5302 | Introduction | 55 • The display 2831E EN 20161128 1410...

  • Page 56: Messages

    56 | Drystar 5301, Drystar 5302 | Introduction Messages Under certain conditions the red LED on the right side of the display lits up and a warning or error message is shown on the display. This message informs the user that either a problem has occurred or that a requested action cannot be performed.

  • Page 57: The Status Indicator Led

    Drystar 5301, Drystar 5302 | Introduction | 57 The status indicator LED At the right side of the display, a LED indicates the status of the printer: Color / Light Status Action Green Constant Ready (stand-by) Proceed. Blinking Busy or in Keyoperator Wait.

  • Page 58: The Control Buttons

    58 | Drystar 5301, Drystar 5302 | Introduction The control buttons One control button has been provided: Power/Reset button • To power on or off the printer. • To reset the printer. WARNING: Do NOT press the Power/Reset button without first following the procedure to stop printing when the printer is busy printing a film.

  • Page 59: Rear Panel

    Drystar 5301, Drystar 5302 | Introduction | 59 Rear panel At the rear side of the printer, one slot and three connectors are available: CF-card slot To insert an external CF-card for software installation, back-up, etc. Network connector To connect to the hospital network.
  • Page 60 60 | Drystar 5301, Drystar 5302 | Introduction 1. Hold the CF-card vertically with the connector holes in front of the slot and with the flat surface pointing to the left. In that case the cut-away (a) and the rim (b) are pointing to the right.

  • Page 61: Audio Signals

    Drystar 5301, Drystar 5302 | Introduction | 61 Audio signals The printer gives status information via beeps. The length of the beep indicates the response of the system to a key command. • A short beep means that printer has accepted the key command and is starting the operation.

  • Page 62: The Keypad

    62 | Drystar 5301, Drystar 5302 | Introduction The keypad The keypad is located below the display panel. The keypad features the following keys: Key-operator To access the advanced functions of the Key- operator mode.. Escape key To quit the current function or exit a menu without saving modifications.
  • Page 63 Drystar 5301, Drystar 5302 | Introduction | 63 • To toggle between values in a field. Right key • To scroll forwards through multiple choices within a field. • To move the entry position in a(n) (alpha) numerical entry field from left to right.

  • Page 64: The Display

    64 | Drystar 5301, Drystar 5302 | Introduction The display The control panel has a backlit LCD display. We distinguish two panel types depending on the selected language: • a backlit LCD display with 4 lines for Western languages (e.g. Dutch, French, Portuguese, Swedish, ...).
  • Page 65 Drystar 5301, Drystar 5302 | Introduction | 65 Operator mode In operator mode, appropriate information is displayed in accordance with the status of the printer. The operator basic screen looks as follows, indicating that the printer is ready for operation and that no job is currently being executed.
  • Page 66 66 | Drystar 5301, Drystar 5302 | Introduction • Only (alpha) numerical data can be entered. • During data entry, the field is displayed in reverse mode. • Increment the number in a(n) (alpha) numerical entry field by pressing the Up key. Transition from 9 to 0 of one figure will also increment the next figure to the left, respecting the valid limits of the range.

  • Page 67: Switching On The Printer

    Drystar 5301, Drystar 5302 | Introduction | 67 Switching on the printer Note: Before switching on the printer, read the safety instructions. Follow the procedure below to ensure proper start-up of the printer and to check that everything is working correctly.
  • Page 68 68 | Drystar 5301, Drystar 5302 | Introduction 3. Make sure that the printer is loaded with appropriate consumables. Note: If the job status holds a warning or error indication, refer to the section on problem solving. Related Links Safety precautions...

  • Page 69: Cooling Down The Printer

    Drystar 5301, Drystar 5302 | Introduction | 69 Cooling down the printer If owing to certain circumstances (e.g. extensive printing), the temperature rises too much, the printer will cool down automatically. The cooling down message will appaear on the display during the cooling down process.

  • Page 70: Switching Off The Printer

    70 | Drystar 5301, Drystar 5302 | Introduction Switching off the printer When you want to switch off the printer, the printer will first finish his current print job. Queued print jobs will be stored on the hard disk and will be resumed next time the printer is switched on.

  • Page 71: Basic Operation (Operator Mode)

    Drystar 5301, Drystar 5302 | Basic Operation (operator mode) | 71 Basic Operation (operator mode) This section focuses on the basic operating principles of the printer. After reading this chapter, the operator should be able to produce diagnostic usable hardcopies. No special technical skills are required.

  • Page 72: Managing The Print Queue

    72 | Drystar 5301, Drystar 5302 | Basic Operation (operator mode) Managing the print queue Topics: • Checking the print queue • The local print queue screen 2831E EN 20161128 1410...

  • Page 73: Checking The Print Queue

    Drystar 5301, Drystar 5302 | Basic Operation (operator mode) | 73 Checking the print queue You can always check the status of the print jobs on a connected remote access PC via the operator menu. Note: Keep in mind that one print job can hold several films to be printed.

  • Page 74: The Local Print Queue Screen

    74 | Drystar 5301, Drystar 5302 | Basic Operation (operator mode) The local print queue screen During printing, the local display shows the ‘print’ screen: • The screen shows information on the job that is currently being printed: the modality name, the time of receipt of the job and the job status (refer to the table below).

  • Page 75: Pausing The Print Queue

    Drystar 5301, Drystar 5302 | Basic Operation (operator mode) | 75 Pausing the print queue During printing, you can always pause the print queue by entering the operator menu. During a print job, the ‘print’ screen is displayed: 1. Press the Escape key to enter the operator menu.

  • Page 76: Viewing The Film Count Info

    76 | Drystar 5301, Drystar 5302 | Basic Operation (operator mode) Viewing the film count info During printing, you can always view the number of films left in the trays by entering the operator menu. WARNING: Do not open the input trays to view the number of loaded films...

  • Page 77: Viewing The Printer Status

    Drystar 5301, Drystar 5302 | Basic Operation (operator mode) | 77 Viewing the printer status During printing, you can always view the printer status by entering the operator menu. To view the printer status, proceed as follows: During a print job, the ‘print’ screen is displayed: 1.

  • Page 78: Deleting Print Jobs

    78 | Drystar 5301, Drystar 5302 | Basic Operation (operator mode) Deleting print jobs Note: You can only remove print jobs from the print queue via the remote browser interface (remote operator mode). 2831E EN 20161128 1410...

  • Page 79: Changing The Film Format Of The Trays

    Drystar 5301, Drystar 5302 | Basic Operation (operator mode) | 79 Changing the film format of the trays The Key-operator can adjust the film size setting of both input trays (8x10” up to 14x17” film sizes). First, the Key-operator has to perform a mechanical modification. After this modification, the ‘film format’...
  • Page 80 80 | Drystar 5301, Drystar 5302 | Basic Operation (operator mode) Note: Note that there is a screw to secure the position of the 10” and 14” width format tabs. The format tabs positioned in the depth are not provided with a screw.
  • Page 81 Drystar 5301, Drystar 5302 | Basic Operation (operator mode) | 81 6. Load a new film pack. Related Links Loading films on page 82 2831E EN 20161128 1410...

  • Page 82: Loading Films

    82 | Drystar 5301, Drystar 5302 | Basic Operation (operator mode) Loading films This section describes how to load the printer with appropriate films. The printer can be loaded with 8x10”, 10x12”, 11x14”, 14x14” and 14x17” films. Note: If you want to change the film format, the tray configuration must be modified.

  • Page 83: When The Printer Is Printing Or Calculating And An Input Tray Is Empty

    Drystar 5301, Drystar 5302 | Basic Operation (operator mode) | 83 When the printer is printing or calculating and an input tray is empty The display shows the following message: 1. Press the Confirm key to start the loading procedure.

  • Page 84: When The Printer Is In The Ready State And An Input Tray Is Empty

    84 | Drystar 5301, Drystar 5302 | Basic Operation (operator mode) When the printer is in the ready state and an input tray is empty The display shows the following message: 1. Open the lower input tray. 2. Load a new film pack.

  • Page 85: Film Loading Procedure

    Drystar 5301, Drystar 5302 | Basic Operation (operator mode) | 85 Film loading procedure 1. Open the empty input tray. WARNING: To avoid possible film jams, make sure to open input tray all the way. 2. The printer is ready to receive a new film when the following message appears: 3.
  • Page 86 86 | Drystar 5301, Drystar 5302 | Basic Operation (operator mode) Note: You can put the film pack onto a table to make manipulation easier. Before you do this, make sure that the table is dust-free! 5. Remove the sticker from the film pack.
  • Page 87 Drystar 5301, Drystar 5302 | Basic Operation (operator mode) | 87 8. Tear the plastic strip around the film pack. 9. Close the input tray. Note: The printer resumes printing as soon as the tray is closed. Note: Loading instructions are also available on the input tray cover.
  • Page 88 88 | Drystar 5301, Drystar 5302 | Basic Operation (operator mode) WARNING: Never reuse a jammed film. 2831E EN 20161128 1410...

  • Page 89: Checking The Correct Position Of A Film In The Input Tray

    Drystar 5301, Drystar 5302 | Basic Operation (operator mode) | 89 Checking the correct position of a film in the input tray You can verify that the film is properly loaded by watching the lower right corner of the films in the input tray. The rounding of this corner should be smaller than the other three corners.

  • Page 90: Advanced Operation (Key-Operator Mode)

    90 | Drystar 5301, Drystar 5302 | Advanced Operation (key-operator mode) Advanced Operation (key-operator mode) The printer features the following functions on the main menu level of the Key-operator mode: Menu item Function Show settings To consult the current settings of the printer.

  • Page 91: The Menu Structure

    Drystar 5301, Drystar 5302 | Advanced Operation (key-operator mode) | 91 The menu structure General Show settings General Other... Upper input tray Lower input tray Time and date Network(DICOM) Language Image quality Beep on empty tray Logical printers Installed datasets...

  • Page 92: Quality Control

    92 | Drystar 5301, Drystar 5302 | Advanced Operation (key-operator mode) Quality Control In order to establish and maintain consistent image quality, a regular evaluation of image quality is advised. The printer contains an automatic QC feature that has been designed to comply with the grayscale reproduction constancy test, according to the international standard IEC 1223-2-4.

  • Page 93: Establishing The Reference Values And Verifying Image Quality

    Drystar 5301, Drystar 5302 | Advanced Operation (key-operator mode) | 93 Establishing the reference values and verifying image quality After installation of a new printer and before initial use you must establish Quality Control aim values. These values will be used as the base line for comparison when daily Quality Control is done.

  • Page 94: Qc Test Image

    94 | Drystar 5301, Drystar 5302 | Advanced Operation (key-operator mode) QC test image The QC image has several additional fields where the QC data can be filled in. This image should be filed as part of the QC procedure.
  • Page 95 Drystar 5301, Drystar 5302 | Advanced Operation (key-operator mode) | 95 Geometry test Daily density tests Max D Max D Hi D Hi D Mid D Mid D Lo D Lo D Base Base + Fog + Fog Density Difference...

  • Page 96: Establishing The Daily Operating Reference Density Levels

    96 | Drystar 5301, Drystar 5302 | Advanced Operation (key-operator mode) Establishing the daily operating reference density levels WARNING: The densitometer of the printer is calibrated at installation. Authorized service personnel should recalibrate the densitometer annually or after major service or repair.

  • Page 97: Low Density 0,4

    Drystar 5301, Drystar 5302 | Advanced Operation (key-operator mode) | 97 The printer will automatically print the QC test image. 6. After the image is printed, the system will display the optical density values: DD: 1.56 (Densitometer=MB924) The displayed values represent the following steps on the test film:...
  • Page 98 98 | Drystar 5301, Drystar 5302 | Advanced Operation (key-operator mode) Low density 0,4 ± 0,05 Mid density 1,2 ± 0,15 High density 2,0 ± 0,2 12. These charts will be used for the daily quality test. Related Links Quality Control Charts...

  • Page 99: Establishing The Image Geometry Reference Values

    Drystar 5301, Drystar 5302 | Advanced Operation (key-operator mode) | 99 Establishing the image geometry reference values To establish the image geometry reference values, proceed as follows: 1. Print the QC test image or use the previously printed test image.

  • Page 100: Verifying Acceptable Spatial Resolution, Artifact Levels And Low Contrast Visibility

    100 | Drystar 5301, Drystar 5302 | Advanced Operation (key-operator mode) Verifying Acceptable Spatial Resolution, Artifact Levels and Low Contrast Visibility WARNING: Good viewing conditions are important for the correct interpretation of both diagnostic and test images. Make sure that the light box intensity (luminance) is between 2000 and 4000 cd/m²...

  • Page 101: Performing Quality Control (Qc) Tests

    Drystar 5301, Drystar 5302 | Advanced Operation (key-operator mode) | 101 Performing quality control (QC) tests The following procedures must be performed daily, weekly or annually as indicated. When used in a mobile application it is required to do a QC after every move.
  • Page 102 102 | Drystar 5301, Drystar 5302 | Advanced Operation (key-operator mode) 6. Press the Up/Down arrow keys to select the desired tray, followed by the Confirm key. The following screens appear successively: The printer will automatically print the QC test image.
  • Page 103 Drystar 5301, Drystar 5302 | Advanced Operation (key-operator mode) | 103 WARNING: Good viewing conditions are important for the correct interpretation of both diagnostic and test images. Make sure that the light box intensity (luminance) is between 2000 and 4000 cd/m² (4500 and 6500 °K). Use a magnifying glass and use shutters to collimate.
  • Page 104 104 | Drystar 5301, Drystar 5302 | Advanced Operation (key-operator mode) We strongly recommend using a 30 cm (12-inch) machinist scale with 0.5 mm divisions (1/64 inch). 3. Record these values as measured dimensions A and B on Chart 4 (‘Geometric Consistency Control Chart’).

  • Page 105: Preventive Maintenance Schedule

    Drystar 5301, Drystar 5302 | Preventive maintenance schedule | 105 Preventive maintenance schedule The printer is designed for trouble-free operation. Maintenance and cleaning involve only some minor user tasks. Refer to the following pages for the appropriate cleaning procedure. Interval...

  • Page 106: Safety Guidelines

    106 | Drystar 5301, Drystar 5302 | Preventive maintenance schedule Safety guidelines WARNING: To prevent damage to the printer while performing maintenance, observe the following safety precautions: • Do not lubricate the printer. • Do not attempt to disassemble the printer.

  • Page 107: Cleaning And Disinfection

    Drystar 5301, Drystar 5302 | Preventive maintenance schedule | 107 Cleaning and disinfection All appropriate policies and procedures should be followed to avoid contamination of the staff, patients and device. All existing universal precautions should be taken to avoid that the digitizer comes into contact with potential contaminations.

  • Page 108: Cleaning The Print Head

    108 | Drystar 5301, Drystar 5302 | Preventive maintenance schedule Cleaning the print head WARNING: Print head cleaning must be done when image quality problems occur. To clean the print head: 1. Press the Key-operator key to enter the Key-operator mode.
  • Page 109 Drystar 5301, Drystar 5302 | Preventive maintenance schedule | 109 7. Open the hold-down bracket. 8. Open the print head unit. WARNING: The print head unit can be warm. 9. Locate and check on sight the print head resistor line.
  • Page 110 110 | Drystar 5301, Drystar 5302 | Preventive maintenance schedule Note: Be careful not to touch the print head resistor line with your fingers 10. Clean the print head resistor line. Gently pass over the resistor line a few times with a lint free cloth, slightly moistened with Isopropyl alcohol or Ethanol.

  • Page 111: Quality Control Charts

    Drystar 5301, Drystar 5302 | Quality Control Charts | 111 Quality Control Charts Quality Control for Chart 1 General radiography applications Determination of Operating Levels Imager Type: __________ Serial #: _________________ Date ____________________ Input Tray: _______________ Film Type: ____________ Emulsion #: ______________ Densitometer: ________________ (default selection) Step 1: Print QC Test images on five consecutive days.
  • Page 112 112 | Drystar 5301, Drystar 5302 | Quality Control Charts Quality Control for Chart 2A General radiography applications Daily Density Control Chart Imager Type: __________ Serial #: _____________ Film Type:____________ Emul #:___________ Input Tray: ________ Densitometer Internal: ____________ (default selection)
  • Page 113 Drystar 5301, Drystar 5302 | Quality Control Charts | 113 Quality Control for Chart 2B General radiography applications Daily Density Control Chart Imager Type: __________ Serial #: _____________ Film Type:____________ Emul #:___________ Densitometer Internal: _____________ (default selection) Input Tray: ________...
  • Page 114 114 | Drystar 5301, Drystar 5302 | Quality Control Charts Quality Control for Chart 3 General radiography applications Artifacts and Spatial Resolution Control Chart Test Frequency: Weekly Serial # _____________ Input Tray: ____________ Initial Reference Test Date Initial Reference Artifacts...
  • Page 115 Drystar 5301, Drystar 5302 | Quality Control Charts | 115 Quality Control for Chart 4 General radiography applications Geometric Consistency Control Chart Test Frequency: Annually or as required Serial # ______________ Input Tray: _______________________ Reference Dimensions Measured Dimensions Consistency Aspect Ratio...

  • Page 116: Plug & Play Installation Manual

    116 | Drystar 5301, Drystar 5302 | Plug & Play Installation Manual Plug & Play Installation Manual The Plug & Play Manual is intended for both the printers with one and with two trays. The operation is identical for each input tray.

  • Page 117: Contents Of The Packages

    Drystar 5301, Drystar 5302 | Plug & Play Installation Manual | 117 Contents of the packages Power cord set (order separately) Network cable Printer Film packs Set of documents CF-card Set of manuals Figure 11: Contents of the packages Crosshead screwdriver...

  • Page 118: Remove The Packing Materials

    118 | Drystar 5301, Drystar 5302 | Plug & Play Installation Manual Remove the packing materials Remove the packing materials Remove box containing country specific Remove accessories box. accessories. 1. Remove accessories box. Remove the packing materials e packing materials Remove box containing country specific Remove accessories box.
  • Page 119 Drystar 5301, Drystar 5302 | Plug & Play Installation Manual | 119 Remove plastic bag. 4/18 2832E EN 20151008 2831E EN 20161128 1410...

  • Page 120: Remove The Printer From The Pallet

    120 | Drystar 5301, Drystar 5302 | Plug & Play Installation Manual Remove Drystar 5301, Drystar 5302 from pallet Remove the printer from the pallet Remove Drystar 5301, Drystar 5302 from pallet ystar 5301, Drystar 5302 from pallet Locate 2 handles...
  • Page 121 Drystar 5301, Drystar 5302 | Plug & Play Installation Manual | 121 3. Put printer on a table. Always put tray side at front. WARNING: The table should be able to support the printer’s full weight (90 kg). 2831E EN 20161128 1410...

  • Page 122: Unpack The Accessories

    122 | Drystar 5301, Drystar 5302 | Plug & Play Installation Manual Unpack the accessories Unpack the accessories Unpack the accessories Check all accessories. 1. Check all accessories. Check all accessories. Note: Refer to the Packing slip for a complete list of accessories.

  • Page 123: Environment Specifications

    Drystar 5301, Drystar 5302 | Plug & Play Installation Manual | 123 Environment specifications Environment requirements • Ventilated room, • away from direct sunlight, • away from sources of dust, humidity, heat and cold, • room temperature between 15°C (50°F) and 30°C (86°F), •...

  • Page 124: Remove The Transport Protections

    124 | Drystar 5301, Drystar 5302 | Plug & Play Installation Manual Remove the transport protections 1. Mount the 2 tray supports at the underside of the output tray. 2. Install output tray. 3. Open top cover. 4. Take wire cutter.
  • Page 125 Drystar 5301, Drystar 5302 | Plug & Play Installation Manual | 125 5. Cut 3 red straps. 6. Open hold-down bracket. 7. Open print head. 8. Remove foam sheet. 2831E EN 20161128 1410...
  • Page 126 126 | Drystar 5301, Drystar 5302 | Plug & Play Installation Manual 9. Close print head. 10. Close hold-down bracket until you hear a click. 11. Remove 3 screws from left side panel. 12. Lift up side panel. 2831E EN 20161128 1410...
  • Page 127 Drystar 5301, Drystar 5302 | Plug & Play Installation Manual | 127 13. Remove orange screw. The belt tightens itself. 14. Reinstall side cover. Slide bottom into slots. 15. Tighten 3 screws. 16. Close top cover. 2831E EN 20161128 1410...
  • Page 128 128 | Drystar 5301, Drystar 5302 | Plug & Play Installation Manual 2831E EN 20161128 1410...

  • Page 129: Connect The Cables

    Drystar 5301, Drystar 5302 | Plug & Play Installation Manual | 129 Connect the cables WARNING: To avoid risk of electric shock, this equipment must only be connected to a supply mains with protective earth. WARNING: When installing the printer, care must be taken to ensure that...

  • Page 130: Verify Film Position Tabs

    130 | Drystar 5301, Drystar 5302 | Plug & Play Installation Manual Verify film position tabs Note: Only change the tray configuration if the user needs another tray configuration. 1. Verify that position tabs of upper tray are configurated for 14x17” films.
  • Page 131 Drystar 5301, Drystar 5302 | Plug & Play Installation Manual | 131 4. Put film position tab in place and push down until it locks. 5. Tighten the screws of the width format tabs. Note: Note that there is a screw to secure the position of the 10”...

  • Page 132: Load Film In The Input Trays

    132 | Drystar 5301, Drystar 5302 | Plug & Play Installation Manual Load film in the input trays 1. Open film box. 2. Take film pack and remove sticker. 3. Remove plastic film bag partially. 4. Slide film pack into tray and remove plastic film bag completely.
  • Page 133 Drystar 5301, Drystar 5302 | Plug & Play Installation Manual | 133 6. Close upper (lower) input tray. 7. Stick film ID-label to tray handle. 2831E EN 20161128 1410...

  • Page 134: Startup The Printer

    134 | Drystar 5301, Drystar 5302 | Plug & Play Installation Manual Startup the printer Note: The films delivered with the printer are intended for test purposes only. 1. Remove the display protection foil. 2. Press the POWER button. 3. Wait until READY.

  • Page 135: Configure Network Settings

    Drystar 5301, Drystar 5302 | Plug & Play Installation Manual | 135 Configure network settings The printer is configured with the following APIPA addresses: Printer IP address: 169.254.10.10 Subnet mask: 255.255.0.0 Ask your network manager the following information: Printer IP address:...
