User's Manual
AOYUE Intelligent Soldering Station Int9378 PRO Se-
ries
909378pro
Illustration similar, may vary depending on model
Please read and follow the operating instructions and safety information prior to initial operation.
Technical changes reserved!
Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further
developments.
Advertisement
Related Manuals for WilTec AOYUE Int9378 PRO Series
Summary of Contents for WilTec AOYUE Int9378 PRO Series
- Page 1 User’s Manual AOYUE Intelligent Soldering Station Int9378 PRO Se- ries 909378pro Illustration similar, may vary depending on model Please read and follow the operating instructions and safety information prior to initial operation. Technical changes reserved! Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further developments.
- Page 2 The information contained in this document may alter at any time without prior notice. No part of this document may be copied or otherwise duplicated without prior written consent. All rights reserved. WilTec Wildanger Technik GmbH cannot be held liable for any possible mistakes in this operating man- ual, nor in the diagrams and illustrations shown.
- Page 3 Read all safety precautions and instructions. Failure to obey the safety precautions and instructions might cause an electric shock, a fire, and/or severe injuries. Keep all safety precautions and instructions for future use. © by WilTec Wildanger Technik GmbH Item 909378pro Page 3 http://www.WilTec.de...
- Page 4 Description of the product • The Aoyue Int9378 Pro Series is a high-performance multi-tool station with up to 75 W heating power. Many different tools can be connected to it, e.g., micro-tweezers, sculpting tool, soldering tip, T-series soldering iron, and LED soldering iron.

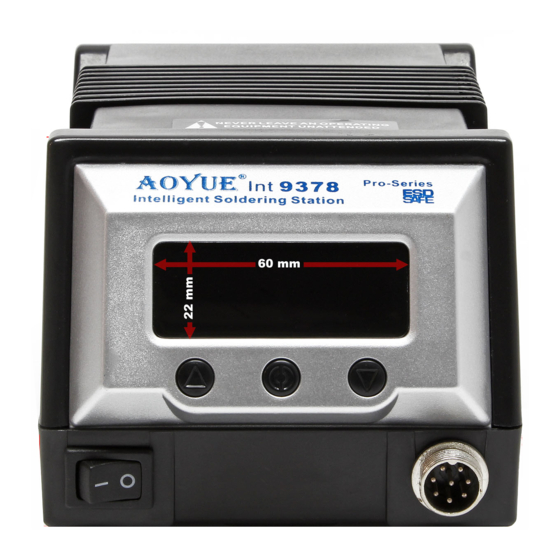

- Page 5 1× soldering iron holder 2660 1× power cable 1× user’s manual Operational components № Name № Name Display Set button Up/Down buttons Socket for soldering iron ON/OFF switch © by WilTec Wildanger Technik GmbH Item 909378pro Page 5 http://www.WilTec.de http://www.aoyue.eu 12 2022-1 http://www.teichtip.de...
- Page 6 Sleep timer (0–60 min), here set to 60 min Locking function Selection of Celsius or Fahrenheit scale LED on/off for tools with LED Save settings and exit Exit without saving settings © by WilTec Wildanger Technik GmbH Item 909378pro Page 6 http://www.WilTec.de http://www.aoyue.eu 12 2022-1...
- Page 7 6. Adjust the value until the reading from the external temperature sensor and the set temperature are the same. © by WilTec Wildanger Technik GmbH Item 909378pro Page 7 http://www.WilTec.de http://www.aoyue.eu...
- Page 8 3. The display “t000” means that the sleep function is currently switched off. To adjust the count- down value, press the Up or Down button. The sleep countdown time is adjustable from 2 to 60 min. © by WilTec Wildanger Technik GmbH Item 909378pro Page 8 http://www.WilTec.de...
- Page 9 Press Up and Down button to choose between ON and OFF. 3. “OFF” indicates that the LED is off, “ON” indicates that the LED is on. © by WilTec Wildanger Technik GmbH Item 909378pro Page 9 http://www.WilTec.de...
-
Page 10: Troubleshooting
Solution: The soldering iron is not or loosely connected to the main station. Insert and lock the soldering iron firmly. • case: Soldering iron is correctly connected, display still shows “Err1” © by WilTec Wildanger Technik GmbH Item 909378pro Page 10 http://www.WilTec.de http://www.aoyue.eu... - Page 11 Repeat the steps under “Setting the digital offset” above. Make sure that the temperature is 480 ℃ or less. error: other error not mentioned here Solution: Contact an authorised service centre. © by WilTec Wildanger Technik GmbH Item 909378pro Page 11 http://www.WilTec.de http://www.aoyue.eu...
- Page 12 Note: Suitable for all AOYUE soldering irons except lead-free composite tips series, induction series, and 938. © by WilTec Wildanger Technik GmbH Item 909378pro Page 12 http://www.WilTec.de http://www.aoyue.eu 12 2022-1 http://www.teichtip.de...
- Page 13 German law related to electrical and electronic equipment and appliances. All WilTec electric devices that fall under the WEEE directive are labelled with the symbol of a crossed- out wheeled rubbish bin. This symbol indicates that this electric device must not be disposed of with the domestic waste.
