Instruction Manual

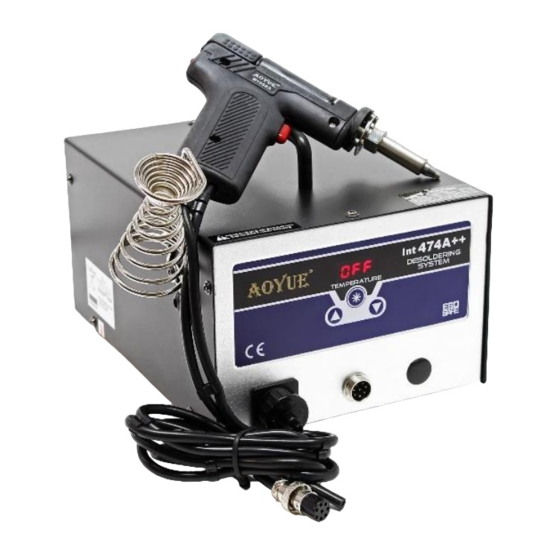

Desoldering Station AOYUE 474A++
90474
Illustration similar, may vary depending on model
Please read and follow the operating instructions and safety information prior to initial operation.
Technical changes reserved!
Illustrations, functional steps and technical data may deviate insignificantly due to continuous further
developments.
Advertisement
Related Manuals for WilTec AOYUE 474A++
Summary of Contents for WilTec AOYUE 474A++

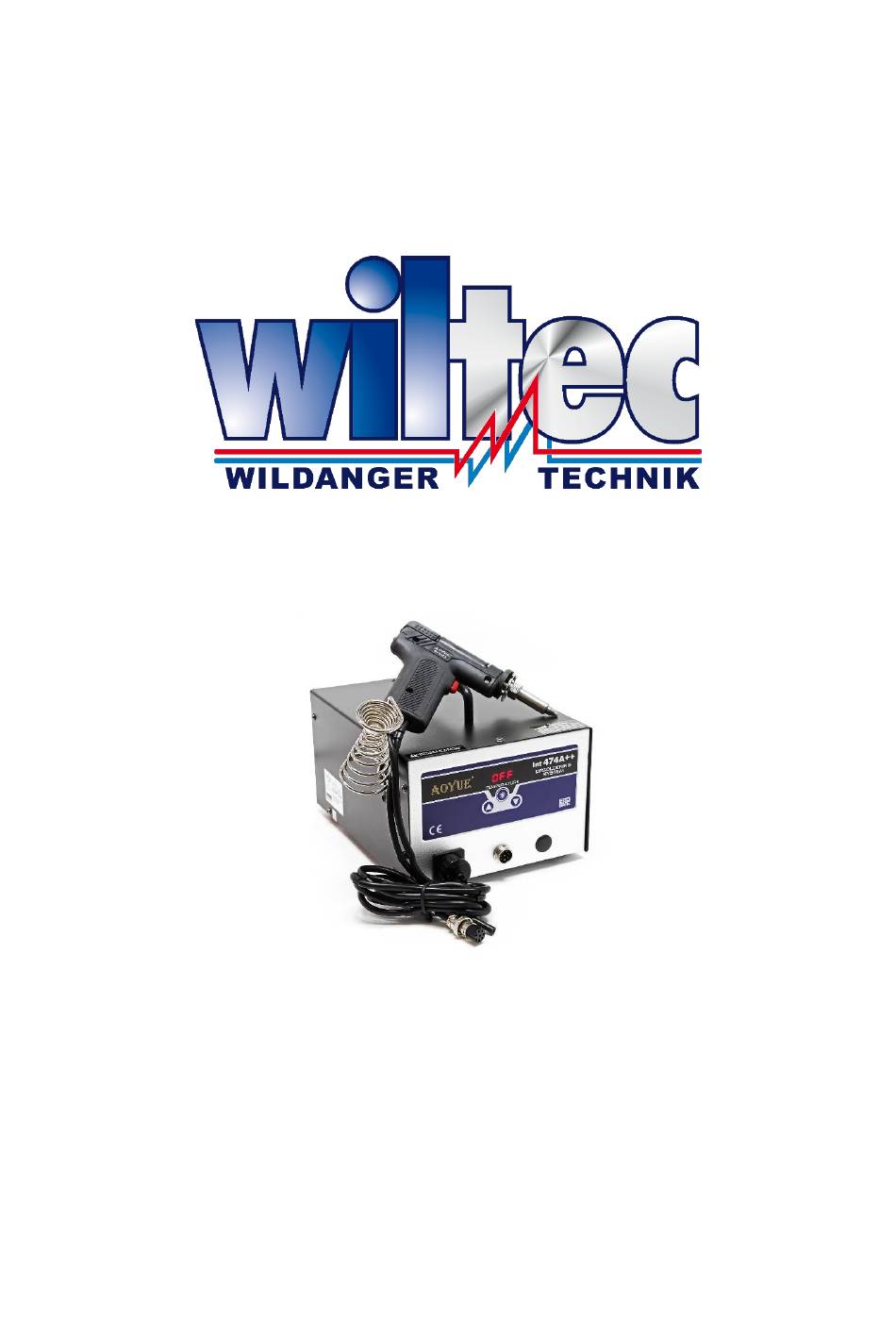

- Page 1 Instruction Manual Desoldering Station AOYUE 474A++ 90474 Illustration similar, may vary depending on model Please read and follow the operating instructions and safety information prior to initial operation. Technical changes reserved! Illustrations, functional steps and technical data may deviate insignificantly due to continuous further developments.
- Page 2 The information contained in this document may alter at any time without prior notice. No part of this document may be copied or otherwise duplicated without prior written consent. All rights reserved. WilTec Wildanger Technik GmbH cannot be held liable for any possible mistakes in this operating man- ual, nor in the diagrams and illustrations shown.
- Page 3 • Make sure that the electrical plug connection is protected from flood and moisture. • Before working on the device (maintaining, repairing, cleaning it), pull out the plug. © by WilTec Wildanger Technik GmbH Item 90474 Page 3 http://www.WilTec.de http://www.aoyue.eu 2021-1 http://www.teichtip.de...
- Page 4 Place the device on a level and solid surface the temperature of which does not exceed 40 ℃. Place the device horizontally to allow the station to operate correctly. • Connect to mains. © by WilTec Wildanger Technik GmbH Item 90474 Page 4 http://www.WilTec.de http://www.aoyue.eu...
- Page 5 Resistance of earth (Ω) < 2 Desoldering gun Heating element Ceramic Power consumption (W) 200 –480 (392 °F–896 °F) Temperature range (℃) ℓ ⁄ Pumping power ( © by WilTec Wildanger Technik GmbH Item 90474 Page 5 http://www.WilTec.de http://www.aoyue.eu 2021-1 http://www.teichtip.de...
- Page 6 Desoldering gun holder Operational components Main device Front part № № Name Name Display Vacuum connection Function key for desoldering gun Connection for desoldering gun Temperature adjustment © by WilTec Wildanger Technik GmbH Item 90474 Page 6 http://www.WilTec.de http://www.aoyue.eu 2021-1 http://www.teichtip.de...
- Page 7 Rear part № № Name Name Main switch Electrical connection Fuse © by WilTec Wildanger Technik GmbH Item 90474 Page 7 http://www.WilTec.de http://www.aoyue.eu 2021-1 http://www.teichtip.de...
- Page 8 Hot nozzle to melt solder, intake for molten zle or heating element to be cleaned or the solder filter to be replaced Vacuum cable, to connect to the station © by WilTec Wildanger Technik GmbH Item 90474 Page 8 http://www.WilTec.de http://www.aoyue.eu 2021-1 http://www.teichtip.de...
- Page 9 1. Plug the plug of the desoldering gun into the appropriate socket of the desoldering station. 2. Connect the vacuum hose to the vacuum socket. 3. Place the desoldering gun in its holder. © by WilTec Wildanger Technik GmbH Item 90474 Page 9 http://www.WilTec.de...
- Page 10 3. Use the function key 3 to set the desired time. You can set a time between 1 and 60 min. The time value “0” means that the function has been turned off. 4. Confirm the changes by pressing and holding down the function key 2. © by WilTec Wildanger Technik GmbH Item 90474 Page 10 http://www.WilTec.de...
- Page 11 The inner part of the nozzle and its surface are coated with a special alloy. If this alloy is damaged by high temperatures, the nozzle is not able any longer to heat up correctly and regularly. Solder © by WilTec Wildanger Technik GmbH Item 90474 Page 11 http://www.WilTec.de http://www.aoyue.eu...
- Page 12 5. Re-installing the filter a) Attach the filter spring to the front holder. b) Attach the front holder to the filter cover, making sure that it is correctly oriented. © by WilTec Wildanger Technik GmbH Item 90474 Page 12 http://www.WilTec.de http://www.aoyue.eu...
- Page 13 8. Before storing the device, wait for the desoldering gun to cool down. Note: With the suction power obviously decreasing, clean the nozzle and heating element with the help of the cleaning needle. © by WilTec Wildanger Technik GmbH Item 90474 Page 13 http://www.WilTec.de http://www.aoyue.eu...
- Page 14 German law related to electrical and electronic equipment and appliances. All WilTec electric devices that fall under the WEEE directive are labelled with the symbol of a crossed- out wheeled rubbish bin. This symbol indicates that this electric device must not be disposed of with the domestic waste.
