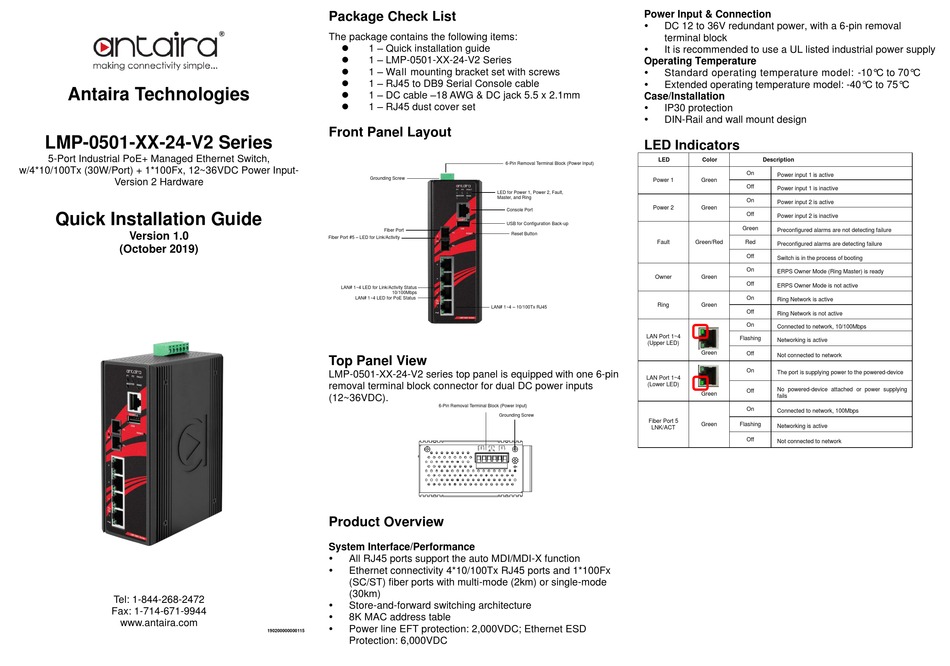

ANTAIRA LMP-0501 24-V2 Series Quick Installation Manual

Antaira Technologies
LMP-0501-XX-24-V2 Series
5-Port Industrial PoE+ Managed Ethernet Switch,
w/4*10/100Tx (30W/Port) + 1*100Fx, 12~36VDC Power Input-
Version 2 Hardware
Quick Installation Guide
Version 1.0
(October 2019)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
⚫ 1 – Quick installation guide
⚫ 1 – LMP-0501-XX-24-V2 Series
⚫ 1 – Wall mounting bracket set with screws
⚫ 1 – RJ45 to DB9 Serial Console cable
⚫ 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
⚫ 1 – RJ45 dust cover set

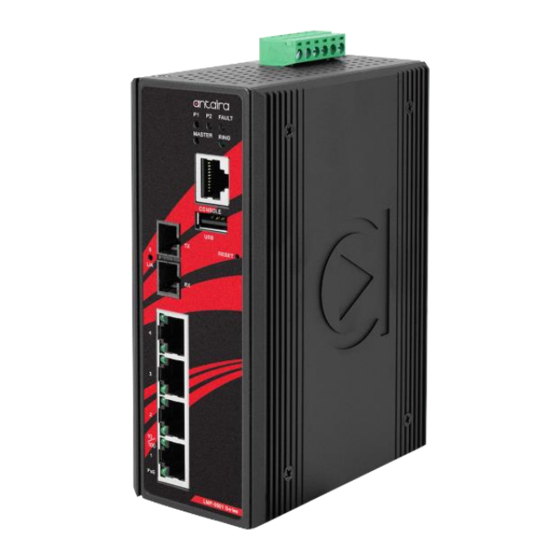

Front Panel Layout
Grounding Screw
Fiber Port
Fiber Port #5 – LED for Link/Activity
LAN# 1~4 LED for Link/Activity Status
10/100Mbps
LAN# 1~4 LED for PoE Status
Top Panel View
LMP-0501-XX-24-V2 series top panel is equipped with one 6-pin
removal terminal block connector for dual DC power inputs
(12~36VDC).
6-Pin Removal Terminal Block (Power Input)
Product Overview
System Interface/Performance

All RJ45 ports support the auto MDI/MDI-X function

Ethernet connectivity 4*10/100Tx RJ45 ports and 1*100Fx
(SC/ST) fiber ports with multi-mode (2km) or single-mode
(30km)

Store-and-forward switching architecture

8K MAC address table

Power line EFT protection: 2,000VDC; Ethernet ESD
190200000000115
Protection: 6,000VDC
Power Input & Connection

DC 12 to 36V redundant power, with a 6-pin removal
terminal block

It is recommended to use a UL listed industrial power supply
Operating Temperature

Standard operating temperature model: -10°C to 70°C

Extended operating temperature model: -40°C to 75°C
Case/Installation

IP30 protection

DIN-Rail and wall mount design
LED Indicators
LED
6-Pin Removal Terminal Block (Power Input)
Power 1
LED for Power 1, Power 2, Fault,
Master, and Ring
Power 2
Console Port
USB for Configuration Back-up
Reset Button
Fault
Owner
Ring
LAN# 1~4 – 10/100Tx RJ45
LAN Port 1~4
(Upper LED)
LAN Port 1~4
(Lower LED)
Grounding Screw
Fiber Port 5
LNK/ACT
Color Description
On
Power input 1 is active
Green
Off
Power input 1 is inactive
On
Power input 2 is active
Green
Off
Power input 2 is inactive
Green
Preconfigured alarms are not detecting failure
Green/Red Red
Preconfigured alarms are detecting failure
Off
Switch is in the process of booting
On
ERPS Owner Mode (Ring Master) is ready
Green
Off
ERPS Owner Mode is not active
On
Ring Network is active
Green
Off
Ring Network is not active
On
Connected to network, 10/100Mbps
Flashing
Networking is active
Green
Off
Not connected to network
On
The port is supplying power to the powered-device
No powered-device attached or power supplying
Off
Green
fails
On
Connected to network, 100Mbps
Green Flashing
Networking is active
Off
Not connected to network
