Aritech ACL870SU-BSMF Installation Sheet

ACL870SU-BSMF Standalone Mifare and
Biometric Swipe Reader Installation Sheet

Description

ACL870SU-BSMF is access control fingerprint and Mifare
reader designed for easy management of the users and
configuration. The scanner is made with advanced capacitive
sensing technology that provides some advantages over
optical solutions like:
•
Making almost impossible to make fake copy of the user
fingers
•
Same performance in the different light conditions
•
Good reading of fingers with stains from daily jobs Built in
strong scanning and matching algorithm provides
excellent tolerance in the way finger is swiped over the
sensor reducing to minimum the need to repeat finger
swiping at the sensor.
The reader can store up to 99 finger templates and 2000
Mifare cards. One template is reserved for User manager
(Administrator), one template is reserved for Reader
configuration (Installer) and up to 97 templates are for Users.

Recommendations

Consult with installer about safety level of the installation.
There are devices with relays compatible with this reader that
can increase the security of the system if needed. One or two
enrolled fingers are enough for one user. Ask the installer
before he leaves the site to enroll your finger as administrator.

Notes

The Reader is using physical roughness of the fingerprint to
scan the finger. Some of the users may have very flat
fingertips, making difficult for the sensor to recognize correctly
the fingerprint. In most cases, these are children and older
persons. To solve this problem, do the following:
Try with different user's fingers to find the "best" finger.
1.
© 2022 Carrier
2. Check with the installer other models of the reader with
added card reader or keypad for other type of access.

Maintenance

No special or periodic maintenance is required. If cleaning is
needed, use soft wet cloth and wipe gently to clean off the dirt.
Do not use chemicals and materials that can scratch the
sensor.
Cautions: Do not touch the sensor with other objects than
finger. Do not pour or splash with water or other liquids. When
painting or construction work is ongoing in the area around the
reader, protect the reader sensor area from possible damages
and paint. If reader is to be dismounted or relocated, call
authorized installer for the job. Disposal of this product must be
handled according to all national laws and regulations.

Mounting

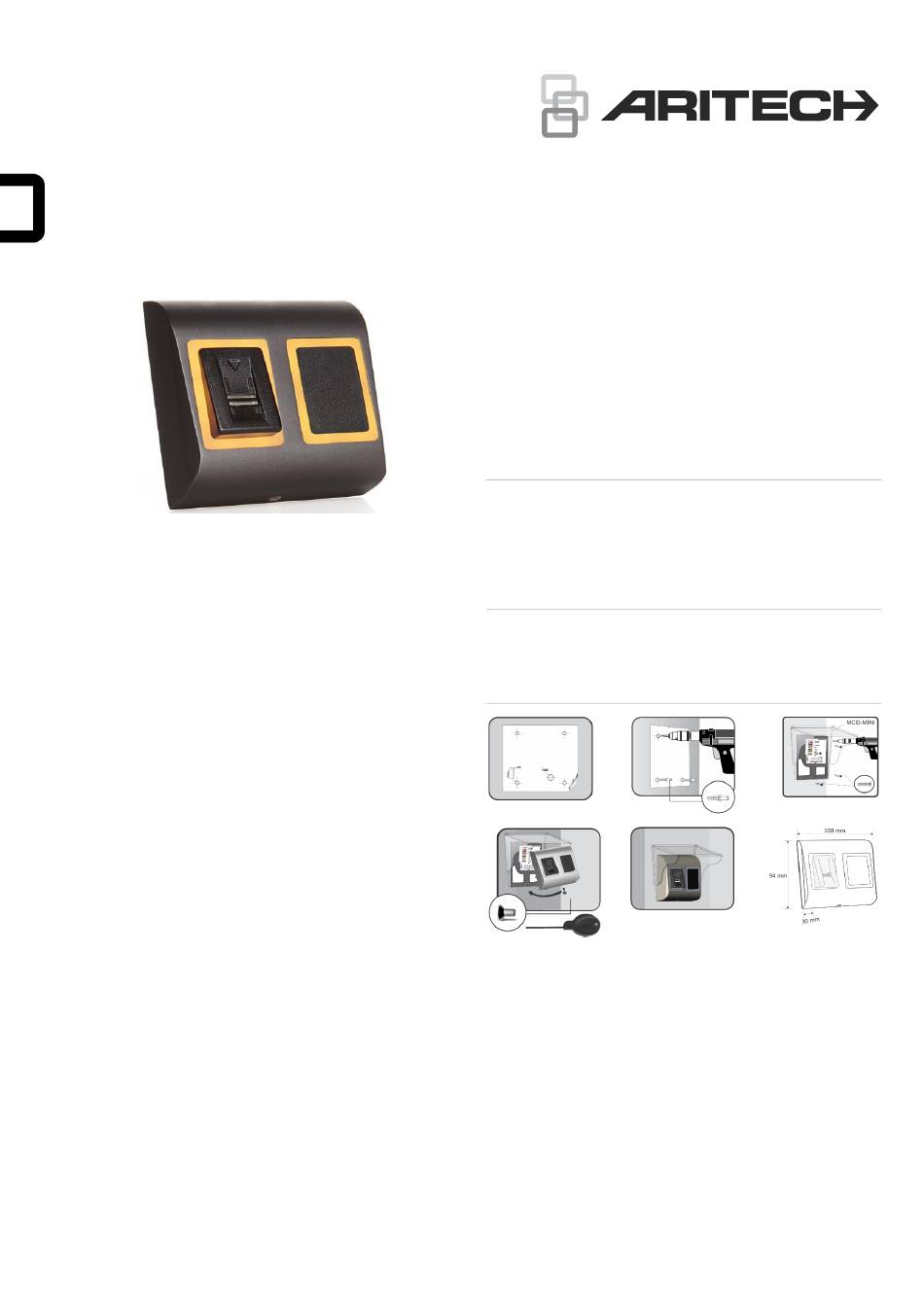

Figure 1: Mounting instructions
•
Do not install the device and cabling close to a source of
strong electro-magnetic fields like radio-transmitting
antenna.
•
Do not place the device near or above heating equipment.
•
If cleaning, do not spray or splash water or other cleaning
liquids but wipe it out with smooth cloth or towel.
•
Do not let children touch the device without supervision.
•
Note that if the sensor is cleaned by detergent, benzene or
thinner, the surface will be damaged and the fingerprint
can't be entered.
If the biometric reader is installed and used in outdoor
environments, the reader MUST be fitted with a weather
